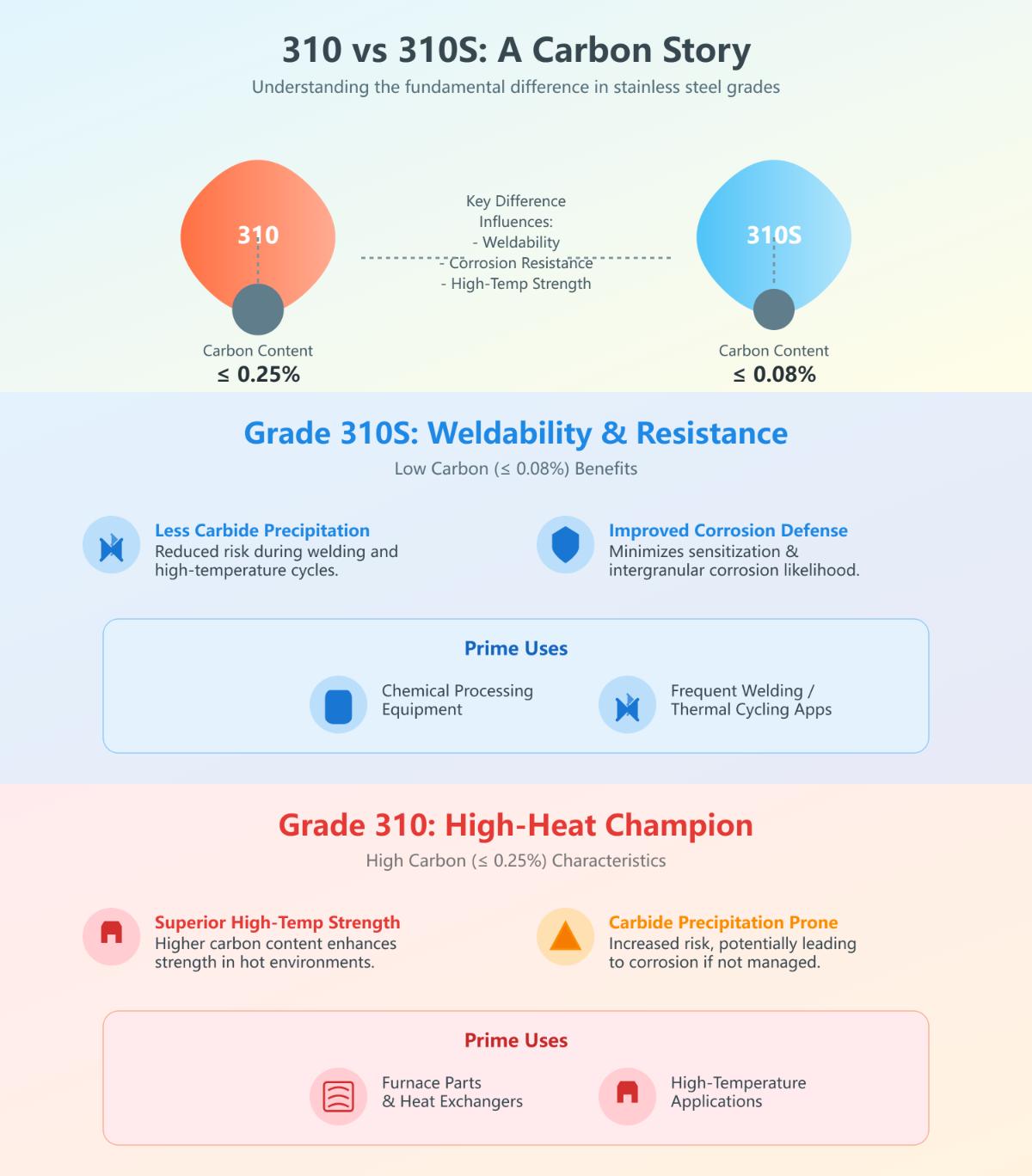

Stainless Steel 310 vs 310S: Comprehensive Comparison

Choosing the right stainless steel grade can be a critical decision in various industrial applications, particularly when high-temperature performance and corrosion resistance are at stake. If you’ve ever wondered about the differences between Stainless Steel 310 and 310S, you’re not alone. These two grades may sound similar, but they offer distinct properties that could influence your project’s success. In this comprehensive comparison, we’ll delve into the subtle yet significant differences, focusing on aspects like carbon content and its impact on weldability and high-temperature performance. Whether you’re deciding which grade to use for furnace parts or evaluating their corrosion resistance, this guide will equip you with the knowledge to make an informed choice. So, when should you opt for 310S over 310? Let’s explore the nuances and determine the best fit for your specific needs.

Introduction to Stainless Steel Grades

Overview of Stainless Steel Grades

Stainless steel is celebrated for its remarkable resistance to corrosion, impressive strength, and versatile applications, making it a fundamental material across various industries. Selecting the correct stainless steel grade is crucial for ensuring that components perform optimally and last longer.

Stainless steel grades are categorized based on their microstructure into austenitic, ferritic, martensitic, duplex, and precipitation hardening. Among these, austenitic grades like 310 and 310S are particularly valued for their excellent high-temperature resistance and corrosion properties.

Key Features of 310 and 310S Stainless Steels

Chemical Composition

The main difference between 310 and 310S stainless steels is their carbon content: 310 has up to 0.25% carbon for added strength, while 310S has up to 0.08% carbon to improve weldability and reduce grain boundary corrosion. Both grades share similar levels of chromium (24-26%) and nickel (19-22%), providing excellent oxidation resistance and stability at high temperatures.

Mechanical Properties

Both 310 and 310S stainless steels exhibit impressive mechanical properties:

• Yield Strength: Minimum of 30 KSI
• Tensile Strength: Minimum of 75 KSI
• Elongation: Minimum of 40% at a 2-inch gauge length

These properties ensure that both grades maintain structural integrity under mechanical stress, making them suitable for heavy-duty applications.

High-Temperature Resistance

Both 310 and 310S stainless steels are designed to withstand high temperatures. They can endure continuous exposure to temperatures up to 1150°C (2100°F) and intermittent exposure to 1035°C, making them ideal for furnace parts, heat exchangers, and other industrial equipment that operate under extreme heat.

Applications of 310 and 310S Stainless Steels

• 310 Stainless Steel: Preferred for high-temperature applications where strength is crucial. Its higher carbon content provides additional strength, making it suitable for furnace components and heat treatment equipment.
• 310S Stainless Steel: Better suited for environments requiring frequent welding. Its lower carbon content reduces the risk of corrosion at weld joints, making it ideal for chemical processing plants and other applications where weldability and corrosion resistance are critical.

Material Composition

Chemical Composition of Stainless Steel 310 vs 310S

Knowing the chemical makeup of stainless steel grades helps determine their best uses. Both 310 and 310S stainless steels are austenitic grades known for their high-temperature resistance and excellent oxidation and corrosion resistance. The primary distinction between these two grades lies in their carbon content.

Carbon Content

The carbon content in stainless steel plays a pivotal role in influencing its properties:

• 310 Stainless Steel: Contains up to 0.25% carbon. This higher carbon content enhances the material’s strength and hardness, making it suitable for applications requiring robust mechanical properties.
• 310S Stainless Steel: Contains up to 0.08% carbon. The lower carbon content in 310S minimizes carbide precipitation, which is beneficial for welding applications and reduces the risk of intergranular corrosion.

Other Key Elements

Both grades share similar levels of other alloying elements, which contribute to their performance characteristics:

• Chromium (Cr): Ranges from 24.0% to 26.0%. Chromium offers strong oxidation resistance and stability at high temperatures, ideal for extreme heat conditions.
• Nickel (Ni): Ranges from 19.0% to 22.0%. Nickel enhances the material’s corrosion resistance and contributes to its austenitic microstructure.
• Manganese (Mn): Up to 2.0%. Manganese improves the steel’s toughness and strength.
• Silicon (Si): Up to 1.50%. Silicon aids in oxidation resistance at high temperatures.
• Phosphorus (P) and Sulfur (S): Phosphorus and sulfur are kept at low levels to preserve the steel’s strength and resistance to corrosion.

Impact of Carbon Content on Material Properties

The difference in carbon content between 310 and 310S stainless steels significantly affects their performance:

• Strength and Hardness: The higher carbon content in 310 stainless steel results in greater strength and hardness, making it suitable for applications where mechanical durability is critical.
• Weldability: Lower carbon content in 310S stainless steel improves its weldability. Reduced carbide precipitation at the grain boundaries minimizes the risk of intergranular corrosion, which is vital for welded structures.
• Corrosion Resistance: Both grades exhibit excellent corrosion resistance due to their chromium and nickel content. However, the lower carbon content in 310S offers better resistance to sensitization during welding.

Comparative Analysis

Choosing between 310 and 310S stainless steels depends on your specific needs:

• 310 Stainless Steel: Opt for this grade when higher mechanical strength and hardness are necessary, especially in environments where thermal cycling or mechanical stress is prevalent.
• 310S Stainless Steel: Ideal for applications involving extensive welding or where corrosion resistance at the weld joints is paramount. The lower carbon content ensures minimal carbide precipitation, enhancing the material’s longevity and performance in corrosive environments.

Performance Characteristics

Weldability

Weldability is crucial when choosing stainless steel for fabrication and joining. The carbon content in both 310 and 310S stainless steels plays a significant role in their welding performance.

Impact of Carbon Content on Weldability

• 310 Stainless Steel: Contains up to 0.25% carbon, which can lead to carbide precipitation at the grain boundaries during welding. This can lead to sensitization and raise the risk of intergranular corrosion if not managed properly.
• 310S Stainless Steel: With a maximum carbon content of 0.08%, 310S is less prone to carbide precipitation and sensitization, making it more suitable for welding applications. The lower carbon content helps maintain the integrity of the weld joints and reduces the risk of corrosion.

Welding Performance Comparison

• 310: Careful control of welding parameters and post-weld heat treatment are needed to minimize carbide precipitation. Typically, post-weld annealing is necessary to restore corrosion resistance and mechanical properties.
• 310S: Offers superior weldability due to its low carbon content, making it ideal for applications where welding is frequent or unavoidable. The reduced risk of sensitization means that post-weld heat treatment is often unnecessary, simplifying the welding process and reducing overall costs.

High-Temperature Applications

Both 310 and 310S stainless steels are renowned for their excellent performance in high-temperature environments, but their suitability can vary based on specific conditions and requirements.

Suitability for High-Temperature Environments

• 310 Stainless Steel: The higher carbon content enhances its strength and creep resistance at elevated temperatures. It’s ideal for high-stress components exposed to extreme heat, like furnace parts, heat treatment fixtures, and structural supports.
• 310S Stainless Steel: Offers good high-temperature performance while being more resistant to intergranular corrosion in cyclic heating conditions. It is particularly effective in applications involving thermal cycling, such as heat exchangers, exhaust manifolds, and petrochemical processing equipment.

Corrosion Resistance

Corrosion resistance is a crucial property for stainless steels, especially in environments where exposure to harsh chemicals or high temperatures is common.

Comparison of Corrosion Resistance Properties

• 310 Stainless Steel: Exhibits excellent oxidation resistance due to its high chromium (24-26%) and nickel (19-22%) content. However, the higher carbon content can make it more susceptible to intergranular corrosion if not properly heat-treated after welding.
• 310S Stainless Steel: Provides comparable oxidation resistance with the added advantage of better resistance to intergranular corrosion, thanks to its low carbon content. This makes 310S particularly suitable for environments where both high temperature and corrosive conditions are present, and where welding is a frequent operation.

Factors Influencing Corrosion Resistance

• Chromium and Nickel Content: Both grades contain similar levels of chromium and nickel, which are essential for forming a protective oxide layer that enhances corrosion resistance.
• Carbon Content: The lower carbon content in 310S significantly reduces the risk of carbide precipitation, which can harm corrosion resistance at grain boundaries, particularly in welded structures.

Mechanical Properties

The mechanical properties of 310 and 310S stainless steels are crucial for determining their suitability for various applications, particularly those involving high stress and temperature conditions.

Strength and Ductility

• Tensile Strength: Both 310 and 310S stainless steels have a minimum tensile strength of 75 ksi, ensuring robust performance under mechanical stress.
• Yield Strength: Both grades exhibit a minimum yield strength of 30 ksi, making them capable of withstanding significant deformation before failure.
• Ductility: With a minimum elongation of 40% in a 2-inch gauge length, both grades offer excellent ductility, which is essential for forming and fabrication processes.

Hardness

• Brinell Hardness: Both grades have a Brinell hardness of 217, indicating a similar level of resistance to indentation and wear.
• Rockwell B Hardness: The Rockwell B hardness for both 310 and 310S is 95, further demonstrating their comparable mechanical properties.

Key Concepts and Processes

Carbide precipitation is an important phenomenon that occurs in stainless steels, especially during welding or when exposed to high temperatures.

The higher carbon content (up to 0.25%) in 310 stainless steel increases the likelihood of carbide precipitation, which can lead to sensitization and make the material more susceptible to intergranular corrosion. Managing carbide precipitation is crucial in applications where welding is involved, as it can compromise the integrity and longevity of the material. In contrast, 310S stainless steel, with a lower carbon content (up to 0.08%), is less prone to carbide precipitation. This makes it more suitable for welding applications, reducing the risk of sensitization and maintaining better corrosion resistance at the weld joints.

Austenitic stainless steels, including 310 and 310S, have a face-centered cubic crystal structure that provides several beneficial properties.

310 stainless steel is more susceptible to carbide precipitation, requiring careful welding techniques and potential post-weld heat treatments to maintain corrosion resistance. On the other hand, 310S stainless steel has a lower risk of carbide precipitation, making it easier to weld and reducing the need for extensive post-weld treatments. This makes 310S a preferred choice for applications where welding is frequent and corrosion resistance at weld joints is crucial.

Austenitic stainless steels have a high coefficient of thermal expansion, which is important in high-temperature applications where materials must withstand repeated thermal cycling without cracking or warping. They are non-magnetic, which is beneficial in applications requiring non-magnetic materials, and they can undergo significant work hardening, enhancing their strength and hardness during forming processes.

Industrial Applications

Industrial Applications of Stainless Steel 310 and 310S

Stainless Steel 310 and 310S are highly valued for their exceptional high-temperature properties and corrosion resistance. Their specific applications vary based on their unique material characteristics, particularly their carbon content.

Thermal Processing Equipment

Both 310 and 310S are extensively used in furnace parts and heat treatment equipment due to their high-temperature resistance. 310 is favored for its mechanical strength, while 310S is chosen for its better weldability and lower risk of sensitization.

Petrochemical Industry

• Flare Tips: In the petrochemical industry, flare tips are exposed to extreme temperatures and corrosive environments. Both 310 and 310S are suitable for this application, with 310S being preferred when welding is necessary due to its lower carbon content and better resistance to sensitization.
• Catalytic Recovery Systems: Their high resistance to oxidation and corrosion makes these grades perfect for catalytic recovery systems, aiding in the processing and recovery of chemicals.

Power Generation

• Coal Gasifiers: Coal gasifier components need materials that can withstand high temperatures and corrosive environments. Both 310 and 310S are used in these applications, with the choice depending on the specific thermal and mechanical requirements.
• Fluidized Bed Combustors: The extreme thermal conditions in fluidized bed combustors necessitate materials that can handle high temperatures without losing integrity. Both grades are employed here, with 310S being preferred in conditions that involve frequent thermal cycling.

Metal Processing and Cement Production

Thanks to their high-temperature resistance, 310 and 310S are ideal for demanding applications like smelting and steel melting equipment, ensuring durability and performance.

• Burners and Burner Shields: In cement production, burners and burner shields operate under intense heat. Both grades are used, with 310S offering advantages in environments where welding is frequent.

Specific Selection Criteria

• 310S: 310S is typically chosen for applications involving moisture and high temperatures. Its lower carbon content minimizes the risk of carbide precipitation, making it ideal for environments prone to sensitization.
• 310: Offers a balanced set of properties for general high-temperature applications. It is often selected when mechanical strength and high-temperature creep resistance are prioritized.

Each application benefits from the specific properties of these stainless steel grades, making 310 and 310S essential materials in industries that demand high performance under extreme conditions.

Technical Specifications

The chemical composition of stainless steel grades 310 and 310S is crucial for their performance. Below are detailed charts outlining their compositions:

Stainless Steel 310

• Carbon (C): Up to 0.25%
• Chromium (Cr): 24.0% – 26.0%
• Nickel (Ni): 19.0% – 22.0%
• Manganese (Mn): Up to 2.0%
• Silicon (Si): Up to 1.50%
• Phosphorus (P): Up to 0.045%
• Sulfur (S): Up to 0.030%

Stainless Steel 310S

• Carbon (C): Up to 0.08%
• Chromium (Cr): 24.0% – 26.0%
• Nickel (Ni): 19.0% – 22.0%
• Manganese (Mn): Up to 2.0%
• Silicon (Si): Up to 1.50%
• Phosphorus (P): Up to 0.045%
• Sulfur (S): Up to 0.030%

ASTM and ASME Standards Compliance

Both grades comply with several industry standards, ensuring their quality and performance, such as ASTM A240 and ASME SA240.

Performance Charts

Performance metrics are essential for comparing the suitability of 310 and 310S stainless steels in various applications. Here are key performance parameters for tensile properties and hardness:

Tensile Properties

• Tensile Strength: Both grades exhibit a minimum tensile strength of 75 ksi (515 MPa).
• Yield Strength: Both grades have a minimum yield strength of 30 ksi (205 MPa).
• Elongation: Both grades offer a minimum elongation of 40% in 2 inches (50.8 mm).

Hardness

• Brinell Hardness: Both grades have a Brinell hardness of 217.
• Rockwell B Hardness: Both grades exhibit a Rockwell B hardness of 95.

Visual Comparison Matrices

To clearly understand the differences and similarities between 310 and 310S stainless steels, the following matrix highlights key properties:

Cost-Benefit Analysis

Material Cost Comparison

When evaluating the cost-effectiveness of Stainless Steel 310 and 310S, the material cost is a primary consideration. Both alloys have similar base material costs. However, 310S may command a slight premium due to its lower carbon content, which requires more controlled production processes.

Fabrication and Welding Costs

Stainless Steel 310

Stainless Steel 310, with its higher carbon content, can incur additional fabrication costs. This requires careful control of welding parameters and possible post-weld heat treatments to prevent carbide precipitation and sensitization. These additional steps can increase labor costs and the time required for fabrication.

Stainless Steel 310S

Stainless Steel 310S, with lower carbon content, is easier to weld. The reduced risk of carbide precipitation minimizes the need for post-weld heat treatment, which can significantly lower fabrication costs. This makes 310S a more cost-effective choice for projects involving extensive welding.

Service Life and Maintenance

Corrosion Resistance and Longevity

The lower carbon content in 310S reduces the risk of intergranular corrosion, making welded joints more durable over time, which lowers maintenance costs and repairs.

Application-Specific Cost Considerations

High-Temperature Environments

For applications that require materials to withstand extreme temperatures, both 310 and 310S are suitable. However, the choice between the two can affect long-term costs. Stainless Steel 310, with its higher carbon content, offers slightly better high-temperature strength, which may be beneficial in non-welded high-temperature applications. This can reduce the frequency of replacements and associated downtime.

Corrosive Environments

310S stainless steel is preferred for environments where corrosion resistance, especially at weld joints, is crucial. Its superior resistance to sensitization ensures that structures remain intact and functional for longer periods, reducing the need for frequent inspections and maintenance.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What’s the key difference between 310 and 310S stainless steel?

The key difference between stainless steel grades 310 and 310S lies in their carbon content, which significantly influences their performance characteristics. Stainless steel 310 has a higher carbon content, up to 0.25%, while 310S is the low-carbon variant, with a maximum of 0.08% carbon. This variation in carbon content impacts properties such as weldability, corrosion resistance, and high-temperature strength.

310S stainless steel’s lower carbon content reduces the risk of carbide precipitation during welding and high-temperature exposure, which in turn minimizes the likelihood of sensitization and intergranular corrosion. This makes 310S more suitable for applications involving frequent welding or thermal cycling, such as chemical processing equipment.

On the other hand, the higher carbon content in 310 stainless steel enhances its strength at elevated temperatures, making it ideal for high-temperature applications like furnace parts and heat exchangers. However, it is more prone to carbide precipitation, which can lead to corrosion issues if not properly managed.

When should I choose 310S over 310 stainless steel?

You should choose 310S stainless steel over 310 when weldability and resistance to corrosion are critical. The lower carbon content in 310S (up to 0.08%) compared to 310 (up to 0.25%) significantly reduces the risk of carbide precipitation during welding, which minimizes grain boundary corrosion and maintains the integrity of the weld area. This makes 310S more suitable for applications that involve frequent welding, especially in corrosive environments such as chemical processing plants. Conversely, if your application demands higher strength at elevated temperatures and involves less frequent welding, 310 stainless steel would be the preferable choice.

How does carbon content affect high-temperature performance?

Carbon content significantly impacts the high-temperature performance of stainless steels, such as 310 and 310S. Stainless Steel 310 contains a higher carbon content (up to 0.25%) compared to 310S, which has a maximum of 0.08%. This increased carbon content in 310 enhances its creep-rupture strength, making it suitable for applications requiring structural integrity under extreme heat. However, higher carbon levels can lead to carbide precipitation, compromising corrosion resistance and increasing the risk of intergranular corrosion.

In contrast, Stainless Steel 310S, with its lower carbon content, offers better resistance to carbide precipitation and intergranular corrosion, making it more suitable for environments where these properties are crucial. Therefore, while 310 is preferred for high-strength applications at elevated temperatures, 310S is favored for its superior corrosion resistance in high-temperature settings. The choice between the two should be based on the specific requirements of the application, balancing the need for strength and corrosion resistance.

What are the specific welding conditions for 310 and 310S?

Both Stainless Steel 310 and 310S can be welded using common processes such as Shielded Metal Arc Welding (SMAW) and Gas Tungsten Arc Welding (GTAW). The primary difference in their welding conditions lies in their carbon content, which affects carbide precipitation and susceptibility to intergranular corrosion.

For Grade 310, due to its higher carbon content, it is more prone to carbide precipitation during welding. This can lead to increased risk of intergranular corrosion. Therefore, it is crucial to control the heat input and interpass temperature, keeping the heat input below 1.0 kJ/mm and the interpass temperature below 100°C (212°F). Using Grade 310 or similar filler materials is common, but caution is needed to prevent hot cracking due to the alloy’s fully austenitic structure.

In contrast, Grade 310S, with its lower carbon content, minimizes carbide precipitation, making it less susceptible to intergranular corrosion and hot cracking. The recommended filler material for welding Grade 310S is typically 310S electrodes, which further reduces the risk of sensitization. Like Grade 310, the heat input should be kept below 1.0 kJ/mm and the interpass temperature below 100°C (212°F).

Are there any notable case studies on the use of 310 and 310S in industrial applications?

Yes, there are notable case studies highlighting the use of Stainless Steel 310 and 310S in industrial applications. Both grades are renowned for their high-temperature strength and corrosion resistance, making them suitable for demanding environments.

In petrochemical plants, 310S stainless steel is often used for furnace parts and heat exchangers due to its lower carbon content, which provides superior resistance to thermal fatigue and cyclic heating. This enhances component longevity under fluctuating temperature conditions.

In the chemical processing industry, 310 stainless steel pipes are employed for handling harsh chemicals like sulfuric and hydrochloric acids. However, 310S’s reduced maintenance frequency and improved resistance to aqueous corrosion make it preferable for piping and reactors, minimizing localized corrosion.

In power generation, both grades are integral in boilers, turbines, and flue gas desulfurization systems. However, 310S is favored for welding applications due to its lower carbon content, which prevents weld decay and ensures structural integrity under thermal cycling.

These case studies demonstrate the practical advantages of selecting 310S over 310 in specific scenarios, particularly where welding and resistance to aqueous corrosion are critical.

How can I use the interactive material selector tool to choose the right stainless steel grade?

To choose the right stainless steel grade using an interactive material selector tool, start by identifying the critical factors for your project, such as corrosion resistance, mechanical properties, and high-temperature performance. Access an online material selector tool, typically provided by specialized companies, which allows you to filter materials based on these specific properties and applications.

Input your requirements into the tool and compare the stainless steel grades, such as 310 and 310S. For instance, you might notice that 310S, with its lower carbon content, offers slightly better corrosion resistance and potentially better ductility, making it suitable for environments where these properties are crucial. Consider additional factors like cost, availability, and ease of fabrication to ensure a comprehensive evaluation. This approach allows you to make an informed decision tailored to your specific project needs.
