Steel Wire Mesh Weight Chart: Technical Reference Guide

When it comes to construction and industrial projects, understanding the weight of steel wire mesh is crucial for ensuring structural integrity and cost efficiency. Whether you’re a seasoned professional or an intermediate-level enthusiast, navigating the complexities of steel wire mesh weight calculations can be daunting. This technical reference guide will demystify the process, offering a comprehensive steel wire mesh weight chart and detailed explanations to help you make informed decisions. We’ll explore the different types of steel wire mesh available, delve into technical specifications, and provide practical steps for calculating mesh weight. Ready to streamline your material selection process? Let’s dive into the data-driven insights that await.

Understanding Steel Wire Mesh

Steel wire mesh, also known as wire cloth or wire fabric, is a crucial material in construction and various industrial applications. It consists of intersecting wires arranged in a grid pattern, welded or woven together. The primary purpose of steel wire mesh is to provide structural support and reinforcement, making it a critical component in concrete construction, fencing, and other structural applications.

Steel wire mesh comes in different forms, including welded wire mesh, woven wire mesh, and expanded metal mesh. Welded wire mesh is created by welding intersecting wires at their junctions, forming a rigid and stable grid. This type of mesh is commonly used in concrete reinforcement, fencing, and partitioning due to its strength and durability. Woven wire mesh is produced by weaving wires over and under each other, creating a flexible and adaptable grid. It is often used in filtration, sieving, and protective barriers where flexibility and precision are required. Expanded metal mesh is made by cutting and stretching a metal sheet to form a diamond-shaped pattern, widely used in walkways, platforms, and security applications due to its non-slip surface and high strength-to-weight ratio.

Steel wire mesh is widely used to strengthen concrete structures, helping to prevent cracking and ensuring the durability of buildings, bridges, and roads.

Steel wire mesh is commonly used for fencing and enclosures in residential, commercial, and industrial settings. It provides a secure barrier while allowing visibility and airflow, making it ideal for perimeter security, animal enclosures, and garden fencing.

In industrial applications, steel wire mesh is used for filtration and sieving to separate particles of different sizes. It is employed in industries such as mining, pharmaceuticals, and food processing to ensure product purity and quality.

Steel wire mesh is also used in architectural applications for its aesthetic appeal and functionality. It can be used for facades, interior design, and decorative elements, providing a modern and industrial look while offering durability and low maintenance.

Steel wire mesh is used in safety and security applications to protect against unauthorized access and accidents. It is commonly found in window guards, machine guards, and safety grilles, ensuring safety in hazardous environments.

The mesh size refers to the number of openings per inch or unit length, while the aperture is the distance between two adjacent wires. These specifications are crucial for determining the mesh’s functionality in various applications, such as filtration and reinforcement.

The wire diameter, measured in millimeters or gauges, significantly impacts the mesh’s strength and durability. Thicker wires provide higher tensile strength, making the mesh suitable for heavy-duty applications.

The overall thickness and density of the wire mesh influence its weight and performance. These factors are essential for calculating material costs and ensuring the mesh meets the structural requirements of specific projects.

Recent advancements in design and manufacturing have led to the creation of complex wire mesh structures with enhanced performance. These innovations allow for customized solutions tailored to specific needs, such as advanced filtration systems and load-bearing components in construction. Improved material efficiency and structural integrity have expanded the potential uses of steel wire mesh across various industries.

Technical Specifications of Steel Wire Mesh

Mesh size in steel wire mesh refers to the number of openings per linear inch or unit length, and it is crucial for determining the mesh’s functionality in various applications. This specification is essential for ensuring the mesh meets the specific needs of a project, whether it involves filtration, reinforcement, or another use. Smaller mesh sizes provide higher density and strength, making them ideal for applications requiring structural support and rigidity. On the other hand, larger mesh sizes offer more open space, which is advantageous in applications such as fencing or sieving where visibility and airflow are needed.

The measurement of mesh size involves counting the number of openings across a specified length. Accurate measurement is vital for engineers and construction professionals to ensure the mesh meets project specifications. The mesh count directly impacts the weight and structural integrity of the mesh, influencing its suitability for different applications.

Wire diameter is a key factor in the strength and durability of steel wire mesh. Thicker wires provide higher tensile strength, making the mesh more durable. Wire diameter is integral to the mesh’s capacity to withstand loads, making it an essential consideration in load-bearing applications. Larger wire diameters increase the mesh’s weight and strength, which is beneficial in projects requiring robust reinforcement.

Calculating wire diameter involves assessing the mesh’s intended use and required strength, often referring to industry standards such as ASTM and ISO. The calculation also considers factors like tensile strength, elongation, and shear strength, ensuring the mesh can meet project demands.

Steel wire mesh is characterized by its material composition, which influences its mechanical properties. Mild steel is commonly used due to its balance of strength and flexibility. Key properties include Ultimate Tensile Strength (UTS), proof stress, elongation, and shear strength. Compliance with standards like IS 432-2 and ASTM A185 ensures the mesh can withstand operational stresses and environmental conditions.

Various standards govern the technical specifications of steel wire mesh, including CSA G30.3 and ASTM A185/A497. These standards dictate wire spacing, tensile classifications, and material properties, providing a framework for quality assurance and consistency across products. Adherence to these standards is vital for ensuring the mesh’s reliability and performance in construction and industrial applications.

When selecting steel wire mesh, it’s important to consider the specific requirements of the application. For structural uses, meshes with smaller sizes and thicker wires are preferred due to their enhanced load-bearing capabilities. Additionally, stainless steel variants offer superior corrosion resistance, making them suitable for environments exposed to moisture and chemicals. Understanding these technical specifications helps professionals make informed decisions regarding material selection and application suitability.

Material Selection Criteria

Key Considerations for Selecting Steel Wire Mesh

Selecting the right steel wire mesh for your project requires careful consideration of several factors that influence its performance and suitability.

Wire Diameter and Tolerances

The wire diameter is crucial as it determines the mesh’s strength and durability. Thicker wires offer higher tensile strength for heavy-duty applications, while thinner wires provide flexibility for less demanding environments, with common diameters ranging from W1.4 to W4. These diameters come with varying tolerances based on the material, such as aluminum, copper alloys, stainless steel, or low carbon steel. Adhering to standard tolerances ensures consistent and reliable mesh performance.

Mesh Size and Spacing

Mesh size, defined by the number of openings per unit length, directly affects the mesh’s weight and application. Smaller mesh sizes provide higher density and strength, suitable for structural reinforcement and applications requiring rigidity. Conversely, larger mesh sizes offer more open space, ideal for fencing and sieving where visibility and airflow are essential. Accurate measurement of mesh size ensures the mesh meets project specifications and functional requirements.

Gauge and Wire Size

The gauge of the wire is another crucial factor. Lower gauge numbers mean thicker wires, increasing the mesh’s strength and durability. Common gauges for steel wire mesh include 10, 8, 6, and 4. Selecting the appropriate gauge ensures the mesh can withstand intended loads and environmental conditions, contributing to the structural integrity of the project.

Weight Considerations

Knowing the weight of steel wire mesh is crucial for selecting materials, budgeting, and planning logistics. The weight per 100 square feet, which varies based on wire size and spacing, is a key metric for calculating total mesh weight for projects. This information aids in transportation planning and ensures compliance with handling regulations. Understanding roll weight for standard sizes (e.g., 5′ x 150′) helps in logistical planning and efficient material handling.

Applications and Load-Bearing Capacity

The weight and specifications of the steel wire mesh significantly impact its load-bearing capacity, affecting its suitability for different applications. Heavier and denser meshes are preferred for structural reinforcement in construction, while lighter meshes are suitable for fencing and protective barriers. Understanding the load-bearing requirements of your application ensures the selected mesh provides the necessary support and durability.

Sustainability and Standards Compliance

Sustainability is an increasingly important consideration in material selection. Choosing steel wire mesh that complies with industry standards, such as ASTM or ISO, ensures it meets environmental and performance criteria. Sustainable materials help protect the environment and ensure your projects meet long-term standards and regulations.

Budgeting and Design Choices

Weight charts are invaluable tools for budgeting and design decisions. They provide accurate estimates of material costs based on weight and application requirements. Additionally, understanding the weight and specifications of the mesh influences structural design and material selection, ensuring the mesh meets both functional and aesthetic requirements. This comprehensive approach to material selection facilitates efficient project planning and execution.

By considering these key factors, you can make informed decisions when selecting steel wire mesh, ensuring it meets the specific demands of your project while optimizing performance and cost-efficiency.

Exploring Weight Chart for Steel Wire Mesh

Importance of Weight Chart in Material Selection

Knowing the weight of steel wire mesh is crucial for selecting materials in construction and industrial projects. Weight charts provide essential data that helps engineers and construction professionals determine the suitability of the mesh for specific applications. The weight of steel wire mesh affects transportation costs, handling procedures, and structural load calculations, making weight charts indispensable for planning and budgeting.

How to Read and Interpret a Weight Chart

Weight charts for steel wire mesh typically include information on wire diameter, mesh spacing, and the weight per unit area. Here is how to interpret these charts effectively:

Wire Diameter and Mesh Spacing

• Wire Diameter: The thickness of the individual wires in the mesh, usually measured in millimeters or gauges. Thicker wires result in a heavier and stronger mesh.
• Mesh Spacing: The distance between adjacent wires, determining the number of openings per unit area. Smaller mesh spacing makes the mesh denser and heavier, while larger spacing makes it lighter and more flexible.

Weight per Unit Area

• Weight per 100 ft²: A common measure indicating the total weight of the mesh for a given area. This helps in calculating the total weight required for larger projects.

Factors Affecting Steel Wire Mesh Weight

Several factors influence the weight of steel wire mesh, including wire diameter, mesh spacing, material density, and dimensions of the roll or sheet.

Wire Diameter

The diameter of the wire is directly proportional to the weight of the mesh. Larger diameters result in heavier meshes, providing greater strength and load-bearing capacity.

Mesh Spacing

Smaller mesh spacing makes the mesh denser and heavier, while larger spacing makes it lighter and more flexible.

Material Density

Steel typically has a density of about 7.9 g/cm³. Stainless steel and galvanized steel are similar but may vary slightly due to their coatings.

Standard Weight Reference Table

Below is a standard weight reference table based on Southern Rebar specifications:

Practical Application Notes

When utilizing steel wire mesh in projects, consider the following practical application notes:

1. Check the wire diameter with calipers for accuracy.
2. Galvanized coatings can add 5-10% to the mesh weight depending on zinc thickness.
3. Calculate weight using actual measured parameters for custom sizes.
4. For structural applications, add 3-5% to the calculated weights to account for variances and ensure safety.

Understanding and utilizing weight charts for steel wire mesh allows for informed decision-making in material selection, ensuring the mesh meets the specific needs of construction and industrial projects.

Calculating Steel Wire Mesh Weight

To precisely calculate the weight of steel wire mesh, several important factors must be taken into account. These include wire diameter, mesh number per inch, and the dimensions of the roll or panel.

Wire Diameter and Mesh Number per Inch

The diameter of the wire is a critical factor in weight calculations. Measured in millimeters (mm), it directly influences the mesh’s weight and strength. The thicker the wire, the heavier and stronger the mesh will be.

The mesh number per inch refers to the number of openings in a linear inch of the mesh. This helps determine the mesh’s density and weight. A higher mesh number indicates a denser mesh with more wires per unit area, increasing the weight.

Roll or Panel Dimensions

The overall dimensions of the roll or panel, including width and length, are necessary for calculating the total weight. These measurements are typically taken in meters and used to determine the surface area of the mesh.

Calculation Formulas

Calculating the weight of steel wire mesh involves specific formulas tailored to the type of mesh and its configuration. Here are some commonly used formulas:

General Formula for Stainless Steel Welded Wire Mesh Panels

• Weight per m² = (wire dia. × wire dia.) × (total wires per m²) × 0.00617

This formula is applicable for panels with a uniform wire arrangement, providing a straightforward method to estimate the weight.

Square Hole Stainless Steel Welded Mesh

For square hole configurations, the formula simplifies to:

• Weight per m² = (wire dia. × wire dia.) × (mesh no. per inch / 2)

The mesh number per inch can be calculated using the following formula:

• Mesh No. per Inch = 25.4 / (mesh opening size + wire dia.)

This formula helps determine the exact weight based on the mesh’s opening size and wire diameter.

Rectangle Hole Stainless Steel Welded Mesh

For rectangular hole configurations, the formula accounts for different warp and weft wire densities:

• Weight per m² = (wire dia. × wire dia.) × (warp mesh no. per inch / 4 + weft mesh no. per inch / 4)

This more complex formula ensures accurate weight calculations for meshes with non-uniform wire arrangements.

Adjustments for Other Materials

If the mesh is made from materials other than stainless steel, the weight per unit area can be adjusted by multiplying the stainless steel weight by a material-specific factor. Here are some common adjustments:

• Aluminum: Multiply by 0.364
• Brass: Multiply by 1.094
• Copper: Multiply by 1.149
• Mild Steel: Multiply by 1.006
• Nickel: Multiply by 1.141
• Phosphor Bronze: Multiply by 1.131

These factors help in converting the calculated weight to match the specific material’s density and properties.

Practical Examples

Galvanized Welded Wire Mesh Example

• Wire diameter: 0.9 mm
• Mesh size: 1/2 inch x 1/2 inch
• Roll dimensions: 3 feet x 100 feet

Calculation:

• 0.9 × 0.9 × 2 × 0.914 × 30.5 / 2 = 22.2 kg

This example demonstrates how to apply the formula to a galvanized mesh, resulting in a total weight of 22.2 kg.

Stainless Steel Wire Mesh Example

• Wire diameter: 0.12 mm
  • Mesh size: 80 mesh x 80 mesh
• Roll dimensions: 1 meter x 30 meters

Calculation:

• 0.12 × 0.12 × 80 × 1 × 30 / 2 = 17.28 kg

This calculation shows the weight for a stainless steel mesh with fine openings, totaling 17.28 kg.

Understanding these factors and using the right formulas will help you accurately calculate the weight of steel wire mesh for different uses.

Applications and Solutions

Steel wire mesh is crucial for maintaining the structural integrity of construction and industrial projects due to its high tensile strength and durability. Its application in concrete structures such as buildings, bridges, and roadways significantly enhances overall strength and load-bearing capacity, reducing the risk of cracks and structural failures.

Reinforcement in Concrete Construction

In concrete construction, steel wire mesh reinforces slabs, walls, and beams, providing uniform load distribution and minimizing stress concentrations. For residential flooring, a 6×6 mesh with 10-gauge wire offers a good balance of strength and flexibility. In more demanding applications, such as bridge decking, a heavier mesh like 4×4 with W4 wire is preferred for its superior load-bearing capabilities.

Problem-Solving in Material Selection

Choosing the right mesh size and wire diameter is essential for meeting the specific strength and flexibility needs of different applications. Smaller mesh sizes with thicker wires provide higher strength, suitable for load-bearing applications. Larger mesh sizes with thinner wires are ideal for fencing and sieving, where flexibility and visibility are important.

For example, a 6×6 mesh with 10-gauge wire is suitable for non-load-bearing partitions, while a 4×4 mesh with 4-gauge wire is better suited for infrastructure projects requiring robust reinforcement.

Interactive Tools for Customizable Solutions

Advancements in technology have led to the development of interactive tools that facilitate the selection and customization of steel wire mesh. These tools allow users to input specific parameters to create tailored solutions that meet project requirements.

Automated weight calculators are invaluable for accurately determining the weight of steel wire mesh based on input parameters. These digital tools reduce manual errors and streamline the material selection process, ensuring precise calculations that align with project specifications.

Hybrid mesh designs combine different mesh weights and materials to optimize load distribution and performance. For example, layering lightweight and heavyweight meshes can enhance the structural integrity of composite materials, providing tailored solutions for complex construction and industrial applications.

Practical Applications and Case Studies

In large-scale infrastructure projects, such as highway pavements and bridge decking, steel wire mesh is crucial for reinforcing concrete and ensuring long-term durability. The use of heavyweight meshes, like 4×4 with W4 wire, provides the necessary strength to withstand heavy traffic loads and environmental stresses.

For security, thicker gauge steel wire mesh provides enhanced protection against cutting and deformation, making it ideal for barriers and guards. This makes it an ideal choice for security barriers, window guards, and machine guards, providing a robust protective solution in high-risk environments.

In industrial settings, steel wire mesh is used for filtration and sieving processes. The high open-area ratios of certain mesh sizes, such as 6×6, balance flow and durability, making them suitable for applications in mining, pharmaceuticals, and food processing industries.

By understanding the specific requirements of each application and leveraging advanced tools and materials, steel wire mesh can be effectively utilized to enhance structural integrity, solve material selection challenges, and provide customizable solutions for a wide range of construction and industrial projects.

Frequently Asked Questions

Below are answers to some frequently asked questions:

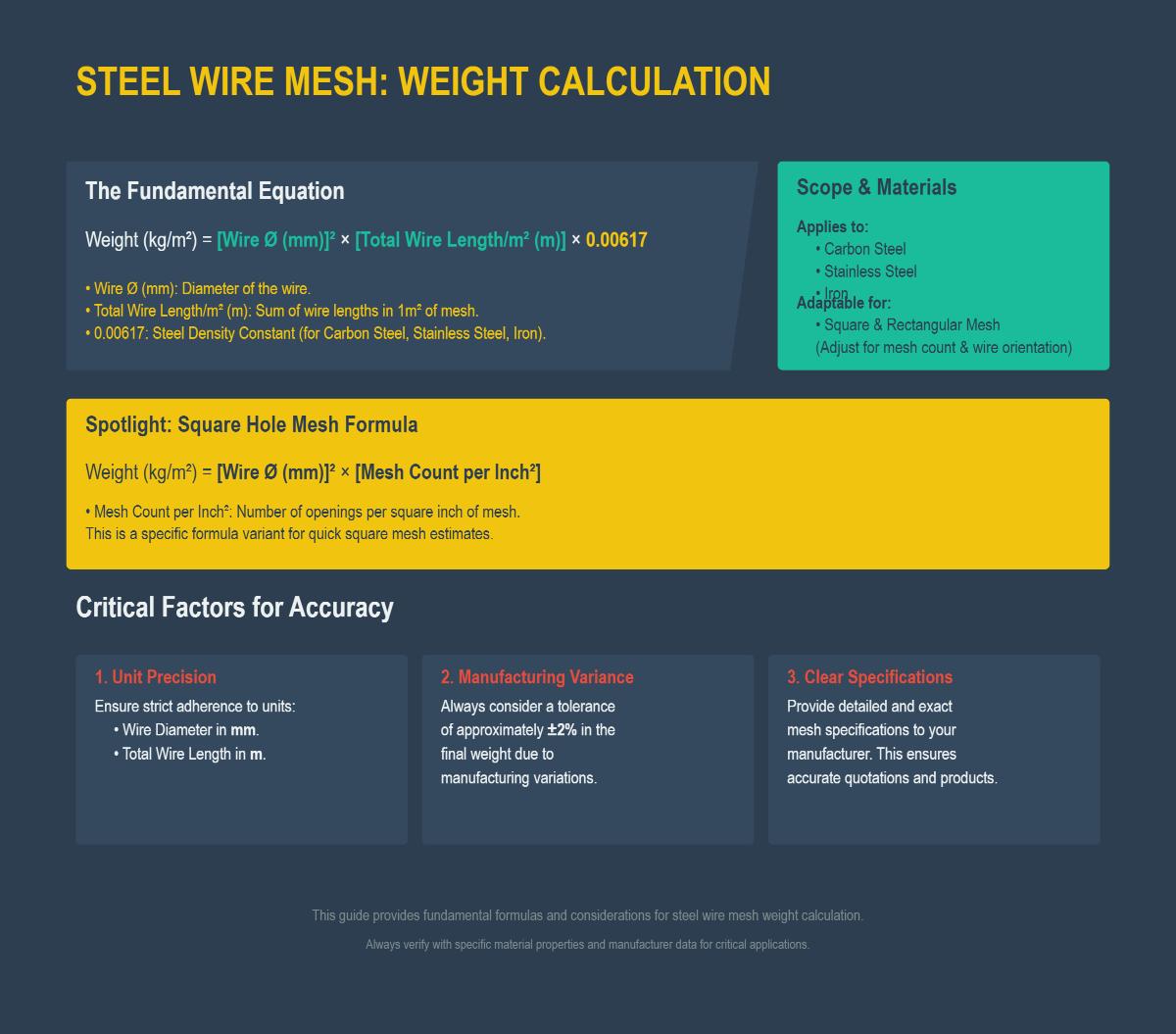

How do I calculate the weight of steel wire mesh?

To calculate the weight of steel wire mesh, you can use the core formula:

This formula accounts for the wire diameter and the total wire length per square meter, with a conversion factor of 0.00617 for steel density, applicable to carbon steel, stainless steel, and iron. For mesh types like square hole or rectangular hole, adjust calculations based on mesh count and wire orientation (warp/weft).

For example, with square hole mesh, use:

This accounts for the number of mesh openings per inch. Ensure all dimensions are in millimeters and meters for consistency. Practical considerations include tolerances of ±2% due to manufacturing variances. Provide exact specifications to manufacturers for accurate quotations.

What are the different types of steel wire mesh available?

Steel wire mesh is a versatile material used across various industries due to its durability, flexibility, and corrosion resistance. The primary types of steel wire mesh can be categorized based on material composition, manufacturing process, and mesh structure.

Material-based classifications include:

• Stainless Steel Wire Mesh: Available in grades like 304, 316, 316L, and 430, known for their excellent corrosion resistance.
• Galvanized Steel Wire Mesh: Coated with zinc for rust protection, ideal for outdoor and industrial use.
• Carbon Steel Wire Mesh: More cost-effective and strong, though less resistant to corrosion compared to stainless and galvanized steel.

Manufacturing process classifications include:

• Woven Wire Mesh: Interlaced wires in patterns such as plain weave and twill weave, offering varying flexibility and strength.
• Expanded Wire Mesh: Made by cutting and stretching metal sheets, providing uniform holes, lightweight, and cost-effective.
• Perforated Metal Mesh: Created by punching holes in metal sheets, offering robust structure but less airflow.

Structural classifications are based on:

• Mesh Count and Wire Diameter: The number of wires per inch and wire thickness determine mesh density and weight.
• Shape of Mesh Holes: Available in shapes like square, hexagonal, and rectangular, each with different aesthetic and functional properties.

These classifications help in selecting the appropriate type of steel wire mesh for specific construction and industrial applications.

How does mesh size affect steel wire mesh weight?

Mesh size significantly affects the weight of steel wire mesh by dictating the wire diameter and aperture size, which are critical components in weight calculation. As mesh size increases, meaning more openings per inch, the aperture size decreases, typically requiring thinner wires to maintain structural integrity. This adjustment in wire diameter is crucial since the wire’s weight is proportional to the square of its diameter. Therefore, finer meshes, such as 200 mesh, will have a lighter weight per square meter compared to coarser meshes like 6×6, assuming the same material. For example, a 100 mesh with a 0.1mm wire diameter might weigh around 0.5 kg/m², while a 200 mesh with a 0.05mm wire diameter could weigh approximately 0.25 kg/m². Understanding these relationships is essential for material selection, ensuring the mesh meets both weight and structural requirements.

What is the importance of wire diameter in steel wire mesh?

Wire diameter is a critical factor in steel wire mesh as it significantly influences the mesh’s mechanical properties and weight. The diameter, measured in millimeters or gauge, determines the tensile strength and durability of the mesh. Thicker wires offer higher load-bearing capacity and enhanced resistance to wear and corrosion, making them suitable for demanding structural applications. Additionally, the wire diameter affects the weight of the mesh, with weight being proportional to the square of the diameter. For example, doubling the wire diameter quadruples the mesh’s weight per unit area. This relationship is crucial in material selection, as it impacts the mesh’s suitability for different applications, balancing strength and weight considerations. Understanding these dynamics helps engineers and designers select the appropriate wire mesh for specific construction and industrial projects, ensuring compliance with performance requirements and standards.

What should I consider when selecting steel wire mesh for a project?

When selecting steel wire mesh for a project, consider several key factors to ensure optimal performance and suitability for your specific application. Firstly, assess the mesh dimensions—including wire gauge and diameter—as these directly influence the weight and structural integrity of the mesh. Heavier gauges like 10-12 are suitable for load-bearing applications, while finer gauges like 30 are better for lightweight uses.

Next, evaluate the mesh count or the number of openings per linear inch, which affects the weight-density balance. Higher mesh counts mean finer mesh, often resulting in lighter material but less structural strength. Additionally, consider the material density; for instance, stainless steel grades such as 304 and 316 have different densities that impact weight and corrosion resistance.

Weave type also plays a role; plain weave is typically lighter than twill weave due to differences in wire density and distribution. Ensure the mesh meets relevant standards and compliance such as ASTM E2016 and ISO 9044, which govern mesh size tolerances and aperture dimensions, respectively.

By carefully considering these factors, you can select the most appropriate steel wire mesh for your project, ensuring both performance and compliance with industry standards.

Are there sustainability standards for steel wire mesh?

Yes, there are sustainability standards for steel wire mesh. These standards ensure that the production and use of steel wire mesh are environmentally responsible and compliant with recognized guidelines. Key standards include Environmental Product Declarations (EPDs) which follow EN15804 and detail the lifecycle impacts of steel wire mesh from raw material extraction to recycling. Additionally, steel wire mesh can contribute to LEED certification by promoting energy-efficient designs and reducing operational costs. The material composition often includes a high percentage of recycled content, with some products using up to 100% recycled steel. Sustainability is further enhanced by using corrosion-resistant grades like 304 and 316 stainless steel, which offer longevity and reduce the need for frequent replacements. These measures help minimize the environmental footprint and support sustainable construction practices.
