Step-by-Step Guide to SMAW Welding for Beginners

Imagine being able to join two pieces of metal with precision and strength using nothing more than an electrode and a welding machine. Welcome to the world of Shielded Metal Arc Welding (SMAW), a fascinating process that’s both an art and a science. If you’re a beginner looking to dive into the basics of SMAW welding, you’re in the right place. This guide will walk you through the different types of SMAW welding processes, from the fundamental principles to practical applications in various industries. You’ll learn how SMAW welding works, how to set up your equipment, and the essential techniques to create strong, reliable welds. Ready to spark your interest and ignite your welding journey? Let’s get started!

Introduction to SMAW Welding

Definition of SMAW Welding

Shielded Metal Arc Welding (SMAW), commonly referred to as stick welding, is a widely used welding process that employs a consumable electrode coated with flux to create the weld. An electric current from a welding power supply, either alternating current (AC) or direct current (DC), forms an electric arc between the electrode and the metals being joined, melting the electrode and disintegrating the flux coating to release protective vapors and slag. These elements shield the weld area from atmospheric contamination.

Importance in Metalworking

SMAW welding holds a significant place in the field of metalworking due to its versatility and simplicity. It is particularly valued for the following reasons:

• Versatility: SMAW can be used to weld a variety of metals, including steel, stainless steel, and cast iron.
• Portability: The equipment used in SMAW is relatively simple and portable, making it ideal for fieldwork and remote locations.
• Cost-Effectiveness: Compared to other welding processes, SMAW requires minimal equipment and is relatively inexpensive, making it accessible for small-scale operations and beginners.

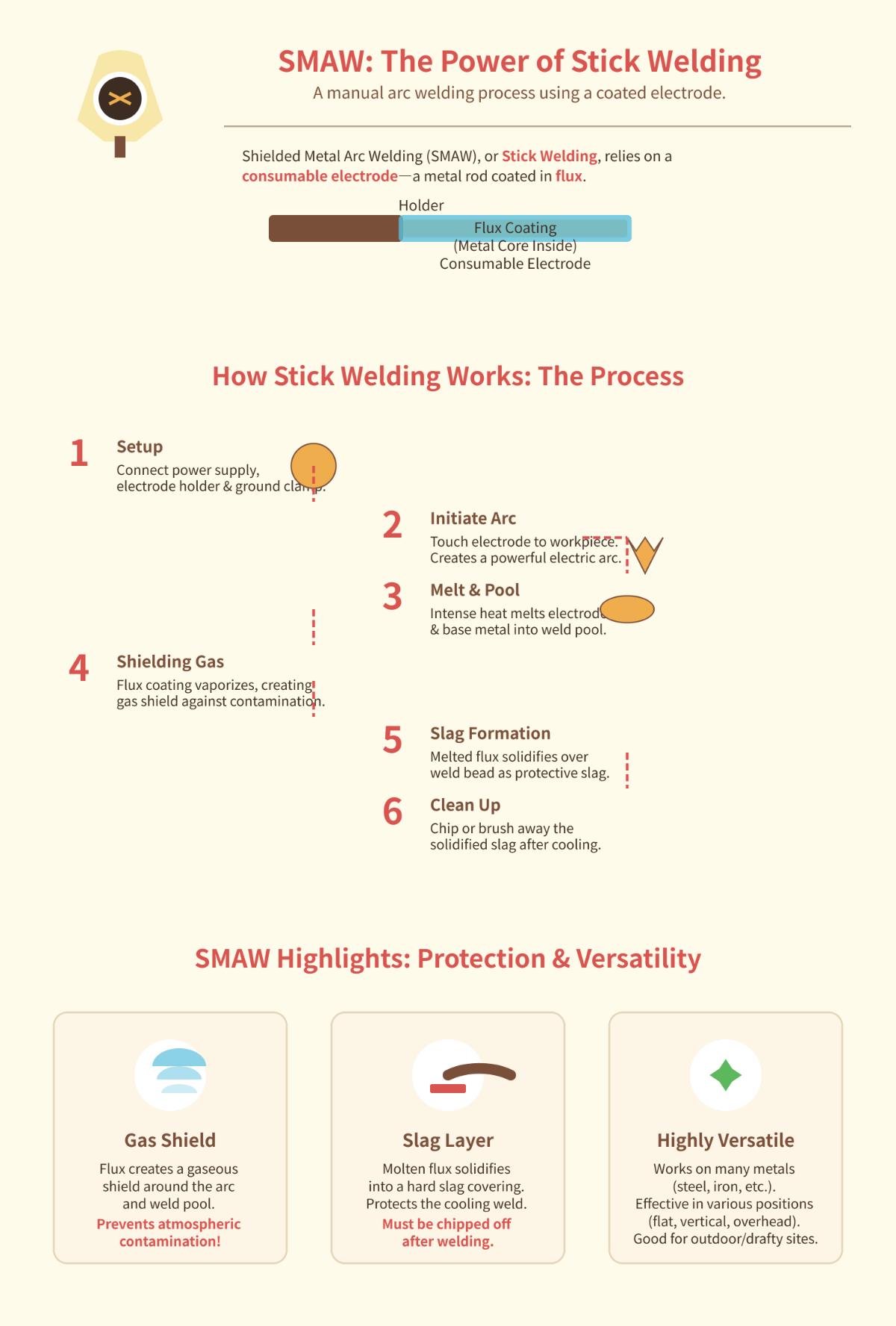

Overview of Shielded Metal Arc Welding

SMAW welding is characterized by the following key components and steps:

Key Components

• Electrode: The core component of SMAW, the electrode is a metal rod coated with flux. The flux is a crucial part of the welding process as it creates a protective gas and slag when burned, shielding the weld from contaminants.
• Welding Machine: The welding machine provides the necessary current, and the electrode holder and ground clamp complete the circuit. Essential safety gear includes a welding helmet, gloves, and appropriate clothing.

Basic Steps in SMAW Welding

1. Preparation:
   • Ensure all equipment is in good condition and clean the metal surfaces to remove dirt, rust, or grease.
2. Setting Up:
   • Set the power source to the appropriate current and polarity for the specific electrode and metal being welded.
   • Attach the ground clamp to the workpiece to complete the circuit.
3. Striking the Arc:
   • Strike the arc by touching the electrode to the workpiece at a suitable angle. Once the arc is established, maintain a consistent arc length equal to the electrode’s core wire diameter.
4. Welding:
   • Move the electrode along the weld path at a steady pace, ensuring the molten pool is properly fused with the base metal. Adjust your technique as needed to achieve the desired weld pattern and penetration.
5. Finishing:
   • Allow the weld to cool before using a chipping hammer and wire brush to remove the slag, revealing the clean weld beneath.

Applications of SMAW Welding

SMAW welding is widely used in various industries due to its adaptability and effectiveness:

• Construction: Frequently used for structural welding of steel frameworks and pipelines.
• Maintenance and Repair: Ideal for on-site repairs of machinery and equipment, especially in remote areas.
• Manufacturing: Utilized in the fabrication of metal products and components.

Types of SMAW Welding Processes

Gravity Welding

Gravity welding is a type of SMAW process that uses the force of gravity to help control the weld pool, particularly useful when welding in vertical or overhead positions. The key to successful gravity welding is to manage the weld pool carefully and maintain a consistent arc length.

Underwater SMAW

Underwater SMAW, also known as wet welding, is a specialized process used in marine environments for repairing ships, offshore structures, and pipelines. This technique requires waterproof electrodes and specialized equipment to ensure safety and effectiveness. The primary challenge of underwater SMAW is the rapid cooling of the weld due to water, which can affect the weld quality and increase the risk of hydrogen embrittlement.

Comparison of SMAW with Other Welding Processes

Gas Metal Arc Welding (GMAW/MIG)

GMAW, or MIG welding, uses a continuous wire electrode and an external shielding gas to protect the weld pool from atmospheric contamination. This process is ideal for welding thinner materials and offers higher deposition rates than SMAW. However, GMAW requires more sophisticated equipment and is less portable due to the need for gas cylinders.

Flux Cored Arc Welding (FCAW)

FCAW is similar to GMAW but uses a flux-cored wire instead of a solid wire. The flux within the wire generates protective gases and slag, eliminating the need for external shielding gas in some cases. This makes FCAW more versatile and suitable for outdoor work. However, it can produce more spatter and requires slag removal, similar to SMAW.

Gas Tungsten Arc Welding (GTAW/TIG)

GTAW, or TIG welding, uses a non-consumable tungsten electrode and an external shielding gas. This process is known for its precision and ability to produce high-quality welds on thin materials and non-ferrous metals. GTAW requires a higher skill level and is generally slower than SMAW, making it less suitable for high-production environments.

Applications in Various Industries

Construction

In the construction industry, SMAW is frequently used for welding structural steel frameworks, reinforcing bars, and pipelines. Its portability and simplicity make it ideal for on-site welding tasks.

Repair and Maintenance

SMAW is a go-to method for repair and maintenance work, especially in remote or outdoor locations. It is used to fix machinery, equipment, and infrastructure, providing reliable and robust welds.

Manufacturing

In manufacturing, SMAW is utilized for fabricating metal products and components. Its versatility allows it to handle a range of materials and thicknesses, making it a valuable process in production environments.

Step-by-Step SMAW Welding Guide

Pre-Welding Preparation

Before starting with SMAW welding, it’s essential to prepare both the workspace and the necessary equipment to ensure a smooth and safe welding process.

Familiarize Yourself with the Equipment

Understand your welding machine’s features and settings by thoroughly reading the user manual. Key aspects to note include the current type (AC or DC) and the amperage settings. For beginners, using a 6013 rod with AC current at approximately 100 amps is a good starting point.

Choose the Right Electrode

Select an electrode suitable for the metal you plan to weld. A common choice for general-purpose welding on mild steel is the 6013 rod. Ensure the electrode matches the material and thickness of the metal.

Ensure Safety Equipment

Safety is paramount in welding. Equip yourself with appropriate protective gear, including:

• Welding helmet with a proper shade
• Gloves
• Fire-resistant clothing
• Safety glasses

Setup and Safety

Connect the Equipment

Ensure the welding machine is properly plugged in and the ground clamp is securely attached to the workpiece. This setup is crucial as it completes the electrical circuit necessary for welding.

Clean the Workpiece

Prepare the welding surface by cleaning it thoroughly. Remove any dirt, rust, or grease to ensure a strong, clean weld. Use a wire brush or grinder for this task.

Wear Protective Gear

Always wear your safety gear before starting the welding process. This includes a welding helmet, gloves, and fire-resistant clothing to protect against sparks and UV radiation.

Strike the Arc

Insert the Electrode

Place the chosen electrode into the electrode holder, ensuring it is firmly secured.

Strike the Arc

To start welding, briefly touch the electrode to the metal to create a spark and start the arc. Maintain a distance of about 1/16 inch between the electrode tip and the workpiece. This distance may vary based on the electrode size.

Position the Electrode

Hold the electrode at a 45-degree angle to the workpiece, directing it away from you. This positioning helps in maintaining a stable arc and achieving a clean weld.

Welding Technique

Maintain Arc Stability

Maintain a steady distance between the electrode and the workpiece during welding. Adjust the distance to keep the arc stable and ensure a uniform weld.

Move the Electrode

Use a zig-zag or semi-circular motion to guide the electrode along the weld path. Ensure each stroke overlaps the previous one by about 50% to create a continuous and strong weld bead.

Monitor Amperage

Adjust the welding machine’s amperage settings as needed based on the electrode type and size. Proper amperage ensures good penetration and minimizes defects.

Post-Welding Process

Remove Slag

Once the weld is complete, use a chipping hammer and wire brush to remove the slag covering the weld bead. This step is essential for revealing the clean weld underneath and ensuring its integrity.

Cool the Metal

Cool the welded area by quenching it in water or allowing it to air cool, then dry it with a wire brush to remove any residual slag or debris.

Inspect the Weld

Examine the weld for quality, ensuring it is consistent and free of defects. Look for signs of good fusion, uniform bead appearance, and the absence of cracks or porosity.

Key Considerations

Electrode Selection

Different electrodes are suited for various metals and welding conditions. Always follow the manufacturer’s recommendations for the best results.

Arc Length and Voltage

Manually adjust the arc length by moving the electrode closer or farther from the workpiece to maintain the desired weld quality. Proper arc length helps in achieving better weld penetration and reducing spatter.

Polarity

SMAW typically uses reverse polarity (electrode positive) to achieve deeper penetration and reduce spatter. Ensure your welding machine is set to the correct polarity for the electrode being used.

Advantages and Applications

Portability and Cost

SMAW equipment is not only portable and affordable but also perfect for a variety of on-site projects and fieldwork.

Outdoor Use

SMAW is ideal for outdoor welding due to its built-in shielding from atmospheric gases, which protects the weld pool.

Industry Applications

SMAW is widely used in construction, maintenance, and repair industries due to its versatility and effectiveness in joining different types of metals.

Advanced SMAW Welding Techniques

Techniques for Welding in Different Positions

SMAW welding can be performed in various positions, each requiring specific techniques to ensure high-quality welds. Advanced welders must understand these techniques to ensure high-quality welds.

Flat Position (1G)

In the flat position, the workpiece is placed horizontally, and the welding is performed from the top. This position is the easiest and most common for beginners. The electrode should be held at a slight angle to the workpiece, and the welder should use a steady, straight motion to create a uniform weld bead.

Horizontal Position (2G)

When welding in the horizontal position, the workpiece is vertical, and the weld is made along a horizontal axis. The electrode angle should be adjusted to ensure the molten pool does not sag. A slight weaving motion can help control the weld pool and prevent defects.

Vertical Position (3G)

Vertical welding is challenging because gravity pulls the molten metal down. There are two main techniques for vertical welding: uphill and downhill.

• Uphill Welding: Start at the bottom of the joint and move upwards. This technique provides better control over the weld pool and is used for thicker materials.
• Downhill Welding: Begin at the top and weld downwards. This method is faster and suitable for thinner materials but requires precise control to avoid defects.

Overhead Position (4G)

Overhead welding involves welding on the underside of a joint, making it one of the most difficult positions. The key is to maintain a short arc length and use a fast travel speed to prevent the molten metal from dripping. Holding the electrode at a slight angle can help control the weld pool.

Advanced Electrode Manipulation

Effective electrode manipulation is crucial for achieving high-quality SMAW welds. Here are some advanced techniques:

Weaving

Weaving involves moving the electrode in a side-to-side motion to create a wider bead and ensure proper fusion. This technique is particularly useful for filling large gaps and welding thicker materials.

Stringer Bead

A stringer bead is a straight-line weld with minimal side-to-side movement. It is used for root passes and when welding thin materials, providing better control and penetration.

Whipping

Whipping involves a quick back-and-forth motion, pulling the electrode slightly away from the weld pool and then returning it. This technique helps control heat input and is useful for welding thin materials or performing vertical welds.

Troubleshooting Common Welding Issues

Even experienced welders encounter issues during SMAW. Here are some common problems and their solutions:

Porosity

Porosity occurs when gas bubbles are trapped in the weld metal, leading to weak welds. To prevent porosity:

• Clean the workpiece thoroughly before welding.
• Ensure the electrode is dry and free from contaminants.
• Maintain a proper arc length and avoid excessive travel speed.

Cracking

Cracking can compromise the integrity of the weld. To minimize the risk of cracking:

• Preheat the workpiece to reduce thermal stress.
• Use low-hydrogen electrodes for critical applications.
• Avoid excessive heat input and rapid cooling.

Lack of Fusion

Lack of fusion occurs when the weld metal does not properly bond with the base metal. To improve fusion:

• Increase the welding current to achieve better penetration.
• Adjust the electrode angle to direct the arc into the joint.
• Use a slower travel speed to allow adequate heat input.

Improving Weld Quality and Efficiency

Advanced SMAW welders focus on optimizing their techniques to improve weld quality and efficiency.

Adjusting Welding Current and Speed

Balancing welding current and travel speed is essential. Higher currents can improve penetration but may increase spatter, while slower travel speeds can enhance fusion but risk overheating the workpiece.

Using the Correct Electrodes

Choosing the right electrode for the job is essential. Electrodes like AWS E6010 or E6011 are suitable for specific applications, such as welding in challenging positions or on contaminated surfaces.

Polarity Management

Proper polarity management can significantly impact weld quality. Using reverse polarity (DCEP) generally provides deeper penetration and reduces spatter, making it suitable for most applications.

By mastering these advanced techniques, SMAW welders can enhance their skills, produce higher-quality welds, and tackle more complex welding projects with confidence.

Safety Precautions in SMAW Welding

Essential Safety Equipment

Using the right protective gear is crucial for safety during SMAW welding. Here are the essential items:

• Welding Helmet: Protect your eyes and face from harmful UV radiation and sparks. Choose a helmet with a proper shade filter.
• Safety Glasses: Wear these under your helmet for additional eye protection.
• Earplugs: Protect your hearing from the loud noises produced during welding.
• **Wear non-porous, heat-resistant gloves, long sleeves, flame-resistant jackets, and pants to protect your hands and skin from burns and sparks.

Safety Practices

Following these practices will help maintain a safe welding environment:

• Work Area Preparation: Keep the workspace clean and free of flammable materials. Ensure good ventilation to avoid inhaling toxic fumes.
• Equipment Inspection: Regularly inspect your welding equipment for damage, and keep cables dry and clean.
• Avoid Electrical Shock: Do not touch live equipment with wet hands or while standing in water. Use well-insulated electrode holders and ensure proper grounding.
• Fire Safety: Clear the welding area of fire hazards and keep a fire extinguisher within reach.
• Ventilation: Use natural drafts or fans to direct fumes away from your face. In poorly ventilated spaces, use mechanical ventilation or a respirator.

Best Practices for SMAW Welding

Implement these best practices to improve your welding process:

• Select the Right Steel: Choose suitable steels, such as low-alloy and carbon steels, and ensure the joint is free from contaminants like grease, paint, oil, rust, and scale to prevent weld porosity.
• Match Joint Position and Electrode: Ensure the joint position and electrode size are suitable for the metal being welded.
• Avoid Overheating: Use the correct amperage to prevent overheating. Keep the electrode clean and dry to avoid porosity.

Troubleshooting Common Issues

Address these common welding problems with the following solutions:

• Weld Spatter: Use the correct welding parameters and anti-spatter sprays to reduce spatter.
• Weld Porosity: Ensure clean, dry electrodes and proper welding techniques to prevent porosity.
• Cracking: Use steels with low sulfur and phosphorus content and apply preheating if necessary to reduce cracking.

Frequently Asked Questions

Below are answers to some frequently asked questions:

How does SMAW welding work?

Shielded Metal Arc Welding (SMAW), also known as stick welding, is a manual welding process that uses a consumable electrode coated in flux. To start, the welding power supply is set up, connecting the electrode holder and ground clamp to the power source. The electrode is then lightly touched to the workpiece, creating an electric arc. This arc generates intense heat, melting both the electrode and the base metal, forming a weld pool. The flux coating on the electrode disintegrates, producing shielding gases that protect the weld from contamination. The melted flux solidifies as slag, which must be chipped away after welding. This process is versatile and widely used due to its ability to weld various metals in different positions and environments.

What equipment is needed for SMAW welding?

For Shielded Metal Arc Welding (SMAW), also known as stick welding, the essential equipment includes:

1. Welding Power Source: A welding machine that generates the necessary electrical current. Options include transformers, inverters, or engine-driven machines.
2. Electrodes: Consumable rods coated with flux to protect the weld area. Common types are E6010, E6011, E7018, and E7024.
3. Welding Leads:
   • Electrode Lead: Connects the electrode holder to the welding machine.
   • Workpiece Lead (Ground Lead): Connects the base metal to the welding machine.
4. Electrode Holder and Ground Clamp: The holder grips the electrode, while the ground clamp secures the workpiece lead to the metal, completing the electrical circuit.
5. Protective Gear: Includes a welding hood or visor, gloves, safety glasses, and fire-resistant clothing to protect against UV rays, heat, and sparks.
6. Workspace and Safety Tools: A clean, well-ventilated workspace, a fire extinguisher, a chipping hammer, and a wire brush for cleaning the weld area.
7. Electrical Setup: Ensure an adequate power supply, typically a 220V/240V circuit, with appropriate circuit breakers.

These tools and safety measures are fundamental for beginners to start SMAW welding effectively and safely.

What safety precautions should be taken during SMAW welding?

When performing Shielded Metal Arc Welding (SMAW), safety precautions are crucial to protect yourself from potential hazards. Firstly, always wear appropriate Personal Protective Equipment (PPE) such as a welding helmet to shield your eyes and face from UV light, safety glasses for additional eye protection, earplugs to protect your hearing, welding gloves to prevent burns and electric shock, and flame-resistant clothing to guard against sparks.

To avoid electric shock, never touch the electrode or work circuit with bare hands and ensure the work area is dry. Proper ventilation is necessary to prevent toxic fume buildup; use a respirator if welding in confined spaces or with coated materials.

Maintain a clean and clutter-free work environment, avoiding wet conditions and keeping a fire extinguisher nearby. Regularly inspect and maintain your welding equipment, replacing any damaged parts promptly. Additionally, be cautious of flammable gases in enclosed spaces to prevent explosions and keep gas cylinders at a safe distance from heat and sparks.

By adhering to these safety measures, you can significantly reduce the risks associated with SMAW welding.

How does SMAW compare to other welding methods?

SMAW (Shielded Metal Arc Welding), commonly known as stick welding, is a versatile and portable welding method suitable for various environments, including outdoor and windy conditions. It uses a consumable electrode coated in flux, which generates a protective gas shield during welding, eliminating the need for additional shielding gases.

Compared to other welding methods:

• GMAW (Gas Metal Arc Welding): GMAW, or MIG welding, is faster and more efficient, with a continuous wire feed and no slag removal required. However, it requires more setup and is less portable due to the need for shielding gases.
• GTAW (Gas Tungsten Arc Welding): GTAW, or TIG welding, offers superior weld quality and precision, making it ideal for detailed work. It uses a non-consumable electrode and requires additional filler material, making it slower and more complex than SMAW.
• SAW (Submerged Arc Welding): SAW is typically used for high-production environments, offering cleaner and more uniform welds with less spatter. It is less versatile than SMAW and not suitable for all positions or environments.

Beginners may find SMAW advantageous due to its simplicity, low equipment cost, and adaptability to various welding positions and environments.

What are some advanced SMAW welding techniques?

Advanced SMAW welding techniques can significantly enhance the quality and efficiency of your welds. Here are some key techniques to focus on:

1. Electrode Angles and Manipulation: Hold the electrode at a 15 to 30-degree angle to the workpiece to maintain a consistent arc length and ensure proper weld penetration. Use manipulation techniques like weaving or small circles to control the weld bead width and achieve even heating.
2. Arc Length and Current Control: Maintain a consistent arc length, typically equal to the diameter of the electrode, to avoid spatter and poor weld quality. Adjust the amperage according to the electrode type and base metal thickness to influence weld penetration and bead shape.
3. Slag Management: Remove slag after each pass using a chipping hammer and wire brush to prevent slag entrapment and ensure a clean weld surface. Proper slag management helps avoid defects like incomplete penetration.
4. Weld Pool Formation and Control: Monitor the size and shape of the weld pool to ensure proper fusion and penetration. Adjust travel speed and electrode angle as needed to control heat input and prevent overheating or warping.
5. Multi-Pass Welding: Plan multi-pass welds carefully, cleaning each pass before adding the next to prevent slag inclusions and ensure a strong bond. Sequence passes to maintain even heating and avoid thermal stresses.
6. Advanced Welding Positions: For vertical and overhead welding, use electrodes that solidify quickly to prevent molten metal from flowing out of the weld pool. In flat position welding, use electrodes that melt quickly but solidify slowly to allow for higher welding speeds.

How can I improve the quality of my welds?

To improve the quality of your welds in SMAW welding, start by selecting the right materials. Choose low-alloy and carbon steels with minimal silicon and sulfur content to reduce cracking, such as AISI-SAE 1015 to 1025 steels. Properly prepare materials by cleaning surfaces to remove rust, paint, oil, and moisture, which helps prevent porosity.

Optimize joint preparation by ensuring consistent fit-up and accurate beveling to aid in penetration and bead shape. Match the root opening to the electrode diameter and use back-up strips for thin materials to prevent burn-through.

Use appropriate electrodes, choosing the right size for your task and preferring low-hydrogen electrodes for better weld quality. Master welding techniques by maintaining optimal workpiece positioning, controlling heat input based on material thickness, and finding a balanced travel speed to ensure consistent penetration without excessive heat buildup.

Finally, implement quality control measures through regular inspections, both visual and non-destructive, to identify defects early. Document welding settings and inspection results to improve future welds. By following these steps, you can significantly enhance your SMAW welding skills and produce high-quality welds.
