Imagine a steel that offers enhanced performance in demanding applications while maintaining the versatility of mild steel. Enter ASTM A836, a titanium-stabilized carbon steel that stands out due to its unique properties and broad range of uses. In this article, we will delve into the specifics of ASTM A836, exploring its chemical composition, mechanical properties, and the benefits of titanium stabilization. We’ll also conduct a comparative analysis with ASTM A36, highlighting key differences in welding applications and suitability for various industries. By the end, you’ll have a comprehensive understanding of how A836 can meet your specific material needs. Ready to uncover the potential of ASTM A836? Let’s dive in.
ASTM A836/A836M is a specification for titanium-stabilized carbon steel forgings, commonly used in as-forged fittings, valve components, and parts intended for glass-lined piping and pressure vessel service.
The chemical composition of ASTM A836 includes titanium stabilization to prevent sensitization during glass-lining processes. Key elements include carbon for strength and weldability, and titanium, which must be at least four times the carbon content to stabilize against carbide precipitation. This ensures the steel maintains its integrity during high-temperature processes.
ASTM A836 steel has specific mechanical properties to ensure its suitability for demanding applications, including a minimum tensile strength of 55 ksi (380 MPa) and a minimum yield strength of 25 ksi (175 MPa). It also has a minimum elongation of 22% over a 2-inch (50 mm) gauge length, indicating good ductility, and a reduction of area of at least 35%, which shows excellent plasticity.
Yield strength is measured using precise methods like the 0.2% offset or 0.5% extension-under-load, ensuring the reliability of the material’s mechanical capabilities.
While heat treatment isn’t mandatory for producing ASTM A836 forgings, it’s essential for test materials to undergo thermal cycles similar to those in glass-coating processes. This step ensures the materials will perform reliably in real-world conditions. Controlled cooling and proper discard protocols during forging help minimize thermal stresses and prevent material defects.
Titanium-stabilized carbon steel is a type of steel alloyed with titanium to enhance its resistance to high-temperature oxidation and improve structural stability. This alloying process is crucial for applications where materials are subjected to thermal cycling and harsh environments, ensuring the steel retains its mechanical properties over time.
The primary differences between titanium-stabilized carbon steel and regular carbon steel are their performance under high temperatures and resistance to degradation. Regular carbon steel is versatile and cost-effective but often lacks the thermal stability and oxidation resistance provided by titanium. Titanium interacts with carbon to form stable compounds known as titanium carbides, which prevent brittleness and maintain ductility, especially at high temperatures.
These advantages include:

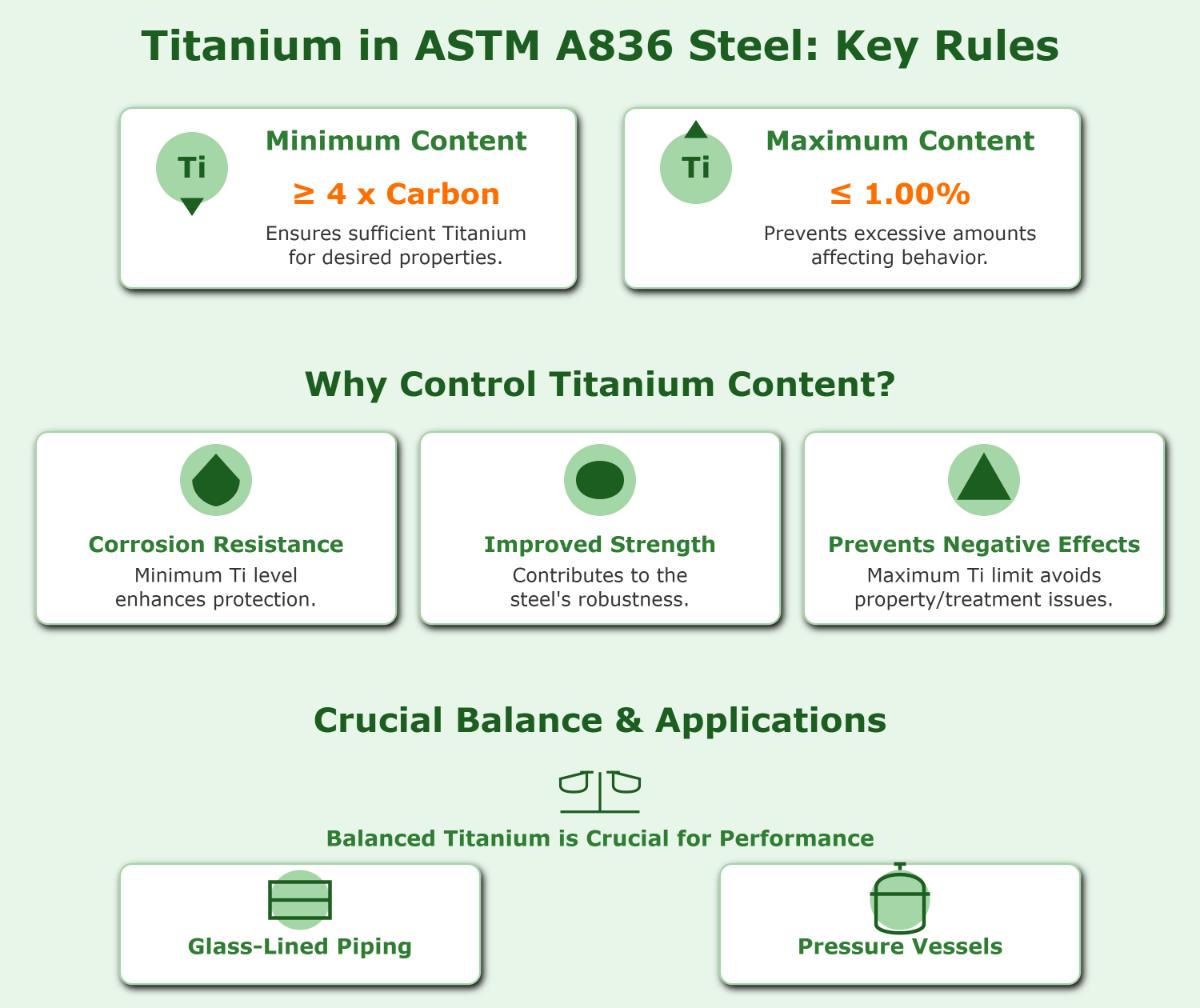

The ASTM A836 standard specifies that titanium content should be at least four times the carbon content. This ensures that all available carbon forms titanium carbides, preventing the formation of less stable iron carbides. By adhering to these specified ratios, manufacturers can produce materials that maintain high performance and reliability, particularly in demanding applications such as glass-lined piping and pressure vessels. The control of titanium content is critical in optimizing the material’s resistance to thermal shocks and its overall mechanical integrity.
This analysis aims to compare the chemical composition and mechanical properties of ASTM A836 and ASTM A36 steels to help identify their suitability for various applications.
ASTM A836 is a titanium-stabilized carbon steel known for its enhanced resistance to corrosion. The presence of titanium, in an amount significantly greater than the carbon content, helps prevent carbide precipitation, which in turn improves its durability in corrosive environments. This steel also contains carbon, manganese, silicon, and phosphorus, contributing to its strength and ease of manufacture.
In terms of mechanical properties, ASTM A836 has a tensile strength of at least 55 ksi (380 MPa), meaning it can withstand significant stress before breaking. Its yield strength is 25 ksi (175 MPa), indicating the stress level at which it begins to deform permanently. The steel also demonstrates good ductility, with an elongation of 22% over a 2-inch gauge length and a reduction of area by 35%.
ASTM A36 is a widely used carbon steel for structural applications, characterized by a simpler composition. It includes carbon for strength, along with manganese, phosphorus, and sulfur to improve toughness and machinability.
This steel offers a tensile strength ranging from 58 to 80 ksi (400 to 550 MPa), allowing it to withstand substantial stress when stretched. Its yield strength is 36 ksi (250 MPa), defining the point where it starts to deform. With an elongation of approximately 20% over a 2-inch gauge length, ASTM A36 also provides good ductility.
ASTM A836 finds its niche in environments demanding high corrosion resistance and mechanical strength. It is commonly used in chemical processing equipment and glass-lined piping due to its ability to withstand harsh chemical conditions. Conversely, ASTM A36 is favored in general structural applications, such as the construction of bridges and buildings, owing to its robust strength and excellent weldability.
ASTM A836 offers good weldability, although its titanium content requires careful handling to avoid issues like titanium oxide formation. This can necessitate specific welding techniques and filler materials to ensure strong joints.
On the other hand, ASTM A36 is highly versatile in welding, accommodating techniques such as MIG, TIG, and arc welding. This flexibility makes it a preferred choice for various structural applications. In terms of machinability, ASTM A36 is easier to work with due to its straightforward composition, whereas ASTM A836 may require adjustments in cutting speeds and tool materials to manage its titanium-stabilized nature effectively.
Glass-lined systems are essential in industries that deal with corrosive materials, providing durability and protection. Designing these systems demands careful selection of base materials to endure both the fusing process and operational conditions. Ensuring a uniform application of the glass lining is crucial to prevent weak spots that could compromise structural integrity.
Glass-lined systems excel at resisting corrosion, acting as a barrier that stops chemicals from reaching the underlying material, such as ASTM A836 steel. This characteristic is particularly vital in environments where maintaining product purity is essential, as it minimizes contamination risks. The corrosion-resistant properties of glass-lined systems reduce the need for frequent maintenance and extend the equipment’s lifespan.
In high-purity manufacturing processes, such as pharmaceutical and food production, glass-lined systems are crucial. They provide a clean, inert surface that prevents contamination, ensuring the integrity of the products being processed. The smooth glass surface also facilitates easy cleaning and sterilization, meeting the stringent hygiene requirements of these industries.
To protect the glass lining, use non-metallic tools during maintenance, like PTFE-lined ones, to avoid causing microcracks. Regular inspections are necessary to detect any signs of wear or damage early, allowing for prompt repairs and preventing extensive downtimes.
Compared to other lining materials, glass-lined systems offer superior performance in several areas. Their non-permeability and abrasion resistance make them ideal for handling slurries and particulate-laden fluids, reducing the risk of buildup and maintenance frequency. The glass lining also provides universal chemical compatibility, ensuring long-term reliability in diverse chemical environments.
Regular inspections for hairline cracks or chips are important because even minor damage can lead to bigger problems if not addressed quickly. Emerging repair techniques, such as spray-on glass coatings, provide effective solutions for maintaining the protective layer without extensive downtime.
The industry is witnessing advancements in glass-lined systems, particularly with the integration of sensor technologies for predictive maintenance. These sensors help in detecting early wear and potential failures, allowing for timely interventions. Innovations in repair methods are also enhancing the practicality and efficiency of maintaining these systems, ensuring they continue to meet the demanding requirements of modern manufacturing processes.
Machining ASTM A836 titanium-stabilized carbon steel requires a detailed approach to maintain the material’s integrity and achieve optimal results.
Choosing the right tools is crucial when machining ASTM A836. High-speed steel or carbide-tipped tools are recommended due to their ability to withstand the abrasive nature of titanium-stabilized steels. These tools help reduce wear and improve cutting efficiency, leading to better surface finishes and extended tool life.
Proper coolant application is essential to prevent overheating during machining, which can lead to tool wear and material distortion. Choose coolants that effectively dissipate heat and are compatible with ASTM A836’s titanium content. Using coolants can also enhance tool longevity and improve surface finish.
Adjust feed rates and cutting speeds to balance smooth finishes and longer tool life. It’s advisable to conduct tests to determine the best parameters for specific machining operations.
Handling ASTM A836 materials with care is vital to avoid any damage or deformation before machining. Ensure that the material is properly supported and secured during processing to minimize vibration and movement, which can affect machining precision.
Welding ASTM A836 requires attention to detail to maintain the mechanical properties and structural integrity of the titanium-stabilized carbon steel.
For optimal welding results with ASTM A836, Shielded Metal Arc Welding (SMAW) and Gas Metal Arc Welding (GMAW) are recommended due to their precision and effectiveness. These methods allow for precise control over the welding process, ensuring strong and reliable welds.
Selecting the right welding consumables is critical to match the mechanical properties of ASTM A836. Use welding rods or wires that are compatible with titanium-stabilized carbon steel to ensure consistency in the weld’s mechanical characteristics and prevent issues such as titanium oxide formation.
Controlling heat input during welding is necessary to avoid excessive distortion and maintain the steel’s mechanical properties. Monitoring heat input helps prevent changes in the microstructure that can lead to weakened welds or compromised material integrity.
Applying post-weld heat treatments like stress relief enhances joint durability and reliability, restoring material properties and reducing residual stresses. Proper heat treatment can ensure the welded joints perform well under operational conditions.
Following these machining and welding practices ensures high-quality, reliable ASTM A836 components for demanding industries.
The use of ASTM A836 in glass-lined piping systems is crucial for industries that need high corrosion resistance and purity. This titanium-stabilized carbon steel is engineered to withstand the rigors of glass-lining processes, ensuring the steel maintains its structural integrity. This makes it perfect for chemical processing where pipes must resist harsh chemicals and stay non-reactive.
ASTM A836 is widely employed in manufacturing pressure vessels and chemical processing equipment. The specification’s stringent mechanical properties ensure these components can handle high pressures and resist chemical attacks.
In industries needing custom parts, ASTM A836’s flexibility stands out. It can be forged into complex shapes without losing its beneficial properties, making it ideal for specialized uses.
The versatility and reliability of ASTM A836 make it a critical material in sectors that demand both high performance and resistance to challenging conditions. Its role in supporting glass-lined systems and high-purity applications underscores its importance in modern industrial processes.
Below are answers to some frequently asked questions:
The titanium content requirement in ASTM A836 steel is essential for achieving its desired properties. The specification mandates that the minimum titanium content should be four times the carbon content of the steel. This requirement ensures adequate titanium is present to enhance the material’s resistance to corrosion and improve its strength. Additionally, the maximum allowable titanium content is set at 1.00% to prevent any excessive amounts that could negatively affect the steel’s properties or behavior during heat treatments. This balance of titanium content is crucial for the steel’s performance in applications such as glass-lined piping and pressure vessels.
In welding applications, ASTM A836, while not widely documented, is assumed to be a titanium-stabilized carbon steel, offering enhanced strength and corrosion resistance compared to regular carbon steels like ASTM A36. ASTM A36 is known for its excellent weldability due to its low carbon content, which allows for welding without the need for preheating. It employs standard welding procedures using E7018 stick electrodes or E70S-3-6 MIG wire with an argon and CO2 gas mix.
For ASTM A836, the presence of titanium could potentially influence its weldability. Titanium stabilization typically enhances resistance to intergranular corrosion but might require specific considerations in welding to prevent issues like titanium carbide formation. While A36 is straightforward to weld, A836 might necessitate adjustments in welding parameters, such as preheating or post-weld heat treatments, to maintain weld integrity and mechanical properties. Overall, while both steels can be used in structural applications, the specific welding approach for A836 would depend on its detailed mechanical properties and composition.
ASTM A836 does not mandate specific heat treatments for titanium-stabilized carbon steel forgings during standard production, offering flexibility based on application or manufacturer preferences. However, critical testing materials used to qualify forging processes or welding procedures must undergo heat treatment to simulate glass-coating operations. This ensures mechanical properties such as tensile strength and hardness meet certification standards under conditions resembling actual service environments.
Key considerations include gradual cooling of forgings after forging or rolling to avoid thermal stresses and strict adherence to the chemical composition, particularly titanium and carbon content, to ensure compatibility with any post-forging heat treatments. When heat treatment is required, manufacturers must coordinate with purchasers, providing rough forging sketches for approval and disclosing any applied heat treatments. This approach balances manufacturing flexibility with rigorous performance validation, making A836 forgings suitable for applications like pressure vessels and chemical processing equipment.
Yes, there are special considerations for glass-lined systems using ASTM A836. ASTM A836 specifies titanium-stabilized carbon steel forgings, which are designed to enhance performance in glass-lined piping and pressure vessel components. The addition of titanium helps mitigate carbide precipitation during welding and heat treatment, significantly reducing susceptibility to intergranular corrosion. This is crucial for maintaining the integrity of the glass coating, which is essential in high-purity manufacturing and chemical processing applications.
Additionally, ASTM A836 steel forgings undergo heat treatment simulations to ensure compatibility with the thermal cycles typically used in glass-lining processes, preventing distortion or degradation of mechanical properties. Surface preparation is also critical, as forging surfaces must be free of defects to ensure proper adhesion of the glass lining. The standard covers custom geometries and mandates rigorous nondestructive evaluations to eliminate subsurface flaws that could compromise the glass layer during service.
For machining ASTM A836 titanium-stabilized carbon steel, several key parameters should be considered to optimize performance and tool longevity. Due to the material’s hardness and unique properties, lower speeds and feed rates are often recommended to prevent tool wear and maintain precision. Using high-speed steel or carbide tools is advisable, given their durability and effectiveness with carbon steel alloys. Additionally, employing coolants can significantly enhance tool life and prevent overheating, which could alter the material’s microstructure. In some cases, preheating the material may be necessary to minimize the risk of cracking, especially if the material has undergone substantial heat treatment. Tailoring these parameters based on the specific condition and application of the ASTM A836 material ensures high-quality machining outcomes.
