Understanding CRCA Sheets: Types and Uses

Imagine a world where durability meets versatility, transforming everyday objects from vehicles to furniture into masterpieces of engineering. This is the realm of CRCA sheets—Cold Rolled Close Annealed sheets—an essential material in the manufacturing and metalworking industries. Whether you’re a beginner eager to grasp the basics or an enthusiast curious about the nuances, understanding the types and uses of CRCA sheets can significantly enhance your knowledge.

In this article, we’ll explore the various types of CRCA sheets, including standard, high tensile, and galvanized options, and delve into their unique properties and applications. You’ll discover how these sheets are manufactured through cold rolling and annealing processes, and why they are vital in industries ranging from automotive to construction. Ready to uncover the benefits that CRCA sheets bring to modern engineering? Let’s dive in and unravel the secrets behind these indispensable materials.

Introduction to CRCA Sheets

Definition of CRCA Sheets

CRCA sheets, short for Cold Rolled Close Annealed sheets, are steel products that undergo a specific manufacturing process to achieve desirable properties. The term "cold rolled" refers to processing the steel at room temperature, enhancing its strength and surface finish. "Close annealed" indicates that the sheets are annealed in a controlled environment to improve formability and mechanical properties.

Importance in Manufacturing and Metalworking

CRCA sheets are crucial in various manufacturing and metalworking industries due to their unique combination of strength, precision, and surface quality. These sheets offer several advantages, including:

• High Strength: Cold rolling significantly boosts the steel’s tensile strength, making CRCA sheets ideal for demanding applications.
• Dimensional Accuracy: Precise manufacturing control ensures CRCA sheets have exact thickness and width, minimizing the need for additional machining.
• Surface Quality: The smooth, clean surface of CRCA sheets makes them ideal for applications requiring a high-quality finish, such as painting and coating.
• Formability: Annealing improves the sheets’ ductility and malleability, making it easy to form complex shapes.

Overview of the Cold Rolling and Annealing Process

The manufacturing process of CRCA sheets involves several key steps, each contributing to the final product’s properties.

Hot Rolling

The process begins with hot rolling, where steel ingots are heated to a high temperature and passed through rollers to form thicker sheets. This step reduces thickness and alters the grain structure of the steel, which is then followed by pickling to remove surface impurities and scale.

Cold Rolling

The pickled sheets are cold rolled at room temperature, passing through rollers to achieve the desired thickness. Cold rolling not only reduces the thickness but also enhances mechanical properties like strength and hardness.

Annealing

Properties of CRCA Sheets

CRCA sheets possess several key properties that make them suitable for a wide range of applications:

• Smooth Surface: Ideal for painting and coating applications.
• High Strength and Hardness: Suitable for heavy-duty uses.
• Excellent Formability: Easily shaped into various forms.
• Dimensional Accuracy: Reduces the need for additional machining.
• Corrosion Resistance: Facilitates protective coatings.

These properties make CRCA sheets versatile and valuable for industries like automotive, construction, and appliance manufacturing.

Types of CRCA Sheets: Standard, High Tensile, and Galvanized

Types of CRCA Sheets

CRCA sheets come in various types, each offering unique properties and benefits suited to specific applications. The primary types include Standard CRCA Sheets, High Tensile CRCA Sheets, and Galvanized CRCA Sheets.

Standard CRCA Sheets

Standard CRCA sheets are widely used and preferred for general applications. They are known for their smooth surface finish and balanced mechanical properties.

• Smooth Surface Finish: Ideal for applications where appearance matters, such as consumer durables and certain industrial engineering tasks.
• Balanced Mechanical Properties: Provides adequate strength and formability for general use in construction and manufacturing.
• Common Uses: Construction, consumer durables, general industrial applications.

High Tensile CRCA Sheets

High Tensile CRCA sheets are designed to offer higher tensile strength compared to standard sheets. Enhanced tensile strength and durability make them ideal for high-stress parts and heavy-duty structural components.

• Common Uses: Automotive manufacturing, high-strength structural parts, machinery components.

Galvanized CRCA Sheets

Galvanized CRCA sheets undergo an additional process where a layer of zinc is applied to improve corrosion resistance. This makes them durable and suitable for outdoor use.

• Corrosion Resistance: The zinc coating protects the steel from rust and environmental damage, making it perfect for outdoor use.
• Durability: Provides long-lasting protection, reducing the need for frequent maintenance.
• Common Uses: Roofing, cladding, external structural components, and applications exposed to the elements.

Comparison of CRCA Sheet Types

Here’s a quick comparison of the key features and applications of each type of CRCA sheet:

Characteristics and Uses

CRCA sheets have several benefits, making them suitable for various applications:

• Dimensional Accuracy: Ensures precise thickness and width, which is crucial for applications requiring high accuracy.
• Surface Finish: Provides a smooth and uniform surface, beneficial for aesthetic purposes and further processing like painting.
• Formability: Excellent formability allows for the creation of complex shapes and designs, essential in automotive and furniture manufacturing.

Recent Developments

Technological advancements have improved the precision and quality of CRCA sheet production. Innovations such as advanced numerical models for thickness control and state-of-the-art cold rolling mills have significantly enhanced the consistency and reliability of CRCA products.

Industry Applications

CRCA sheets are integral to various industries, including:

• Automotive: Used for body panels and structural parts due to their strength and formability.
• Construction: Utilized for roofing, cladding, and structural components because of their durability and resistance to environmental stresses.
• Furniture: Ideal for creating lightweight yet sturdy furniture frames and supports.
• Packaging: Used for cans and containers due to their formability and reliability.

These sheets cater to different needs across multiple industries, making them a versatile and preferred material for various applications.

Common Applications of CRCA Sheets

Automotive Industry

CRCA sheets are highly valued in the automotive industry for their excellent formability, high strength, and precise dimensional accuracy. These properties make them ideal for various components:

• Body Panels: CRCA sheets are used to manufacture hoods, doors, fenders, and roofs due to their smooth surface finish and ability to be shaped into complex forms.
• Chassis Components: Their strength and durability make CRCA sheets ideal for frames, crossmembers, and suspension parts.
• Engine Components: CRCA sheets are used in engine covers and brackets, providing the necessary durability and strength.
• Interior Components: Dashboards, instrument panels, and door panels often utilize CRCA sheets due to their formability and aesthetic appeal.

Construction Industry

In the construction industry, CRCA sheets are valued for their durability and corrosion resistance. They are used in roofing, wall cladding, structural components like beams and columns, and in doors and windows for frames, grills, and security gates.

Appliance Industry

CRCA sheets are also prominent in the appliance industry, where their aesthetic appeal and corrosion resistance are crucial:

• Household Appliances: Products like washing machines, air conditioners, and refrigerators use CRCA sheets. Their smooth surface finish and resistance to corrosion enhance both functionality and appearance.

Electrical and Furniture Industries

CRCA sheets are preferred in the electrical and furniture industries for their formability and load-bearing capacity:

• Electrical Components: They are used in manufacturing electrical panels and enclosures due to their precision and strength.
• Furniture: Modern furniture designs often incorporate CRCA sheets, leveraging their sleek appearance and structural integrity.

Packaging Industry

CRCA sheets are utilized in the packaging industry for their ability to withstand pressure and maintain integrity during transportation, making them ideal for cans and containers.

Metalworking and Manufacturing

Cold Rolling Process and Annealing

Cold rolling starts with hot-rolled steel sheets, which are processed at room temperature to reduce thickness and enhance strength and hardness. The sheets pass through rollers to achieve the desired thickness, ensuring precise dimensions and a smooth finish. After cold rolling, the sheets undergo annealing, a heat treatment process that involves heating and slowly cooling the sheets. Annealing relieves internal stresses, improves ductility, and enhances formability, allowing CRCA sheets to be shaped into complex forms without losing strength.

Key Considerations in Manufacturing

Selecting the right steel type ensures the desired properties of CRCA sheets. Precise control over thickness and dimensions is vital for high-accuracy applications, while a smooth, clean surface finish is important for products like automotive and consumer goods. Annealing is crucial for reducing internal stresses and making the sheets easier to shape.

Quality Standards

Manufacturing CRCA sheets involves adhering to specific quality standards to ensure they meet industry requirements. Standards like IS:513 and JIS G 3141 specify the mechanical properties, dimensional accuracy, and surface finish of CRCA sheets. Compliance with these standards is essential for producing high-quality CRCA sheets suitable for various applications.

Visual Aids to Illustrate the Process

Visual aids, such as diagrams and flowcharts, can help illustrate the cold rolling and annealing processes. These aids provide a clear understanding of each step involved in manufacturing CRCA sheets and highlight the importance of precision and quality control. By visually representing the process, beginners can better grasp the intricacies of metalworking and manufacturing CRCA sheets.

Technical Specifications and Standards Compliance

Technical Specifications

CRCA sheets come in a variety of thicknesses, typically ranging from 0.3 mm to 5.5 mm. This wide range allows for versatility in different applications, from thin sheets used in automotive panels to thicker sheets for structural components. The common thickness tolerance is ±0.02 mm, ensuring precise control over the final product dimensions.

With widths ranging from 6 mm to 1000 mm and lengths up to 7000 mm, CRCA sheets can be tailored to meet specific project requirements, whether for large-scale constructions or smaller, detailed components.

Tensile strength varies by grade, generally between 340 N/mm² and 980 N/mm², allowing for use in both lightweight and heavy-duty applications. Higher grades offer increased strength and durability, making them suitable for demanding applications like automotive parts and heavy machinery.

CRCA sheets are produced with tight tolerances that ensure precise dimensions. This dimensional accuracy is critical for applications requiring high precision, such as in the automotive and electronics industries. Standards like JIS G 3141 specify these tolerances, ensuring consistency and reliability in production.

Standards Compliance

Ensuring compliance with industry standards is vital for maintaining the quality and performance of CRCA sheets. Two key standards for CRCA sheets are IS:513 and JIS G 3141.

The IS:513 standard outlines the requirements for cold-rolled steel sheets, including CRCA sheets. It specifies the mechanical properties, chemical composition, and dimensional tolerances that must be met. Compliance with IS:513 ensures that CRCA sheets are suitable for use in various industrial applications, providing confidence in their performance.

The JIS G 3141 standard is a Japanese specification for cold-rolled steel sheets, including CRCA sheets. This standard defines the grades, mechanical properties, and dimensions required for these sheets. Meeting JIS G 3141 ensures that CRCA sheets are of high quality and suitable for demanding applications, such as automotive manufacturing and precision engineering.

Importance of Compliance

Compliance with these standards is crucial for several reasons:

• Quality Assurance: Confirms that CRCA sheets meet necessary specifications for strength, durability, and precision.
• Reliability: Provides confidence that the sheets will perform as expected in their intended applications.
• Safety: Ensures that the sheets meet safety requirements, particularly in critical applications like automotive and construction.
• Consistency: Guarantees uniformity in production, reducing the risk of defects and ensuring predictable performance.

By adhering to standards like IS:513 and JIS G 3141, manufacturers can produce CRCA sheets that meet the stringent requirements of various industries, ensuring their widespread use and reliability.

Frequently Asked Questions

Below are answers to some frequently asked questions:

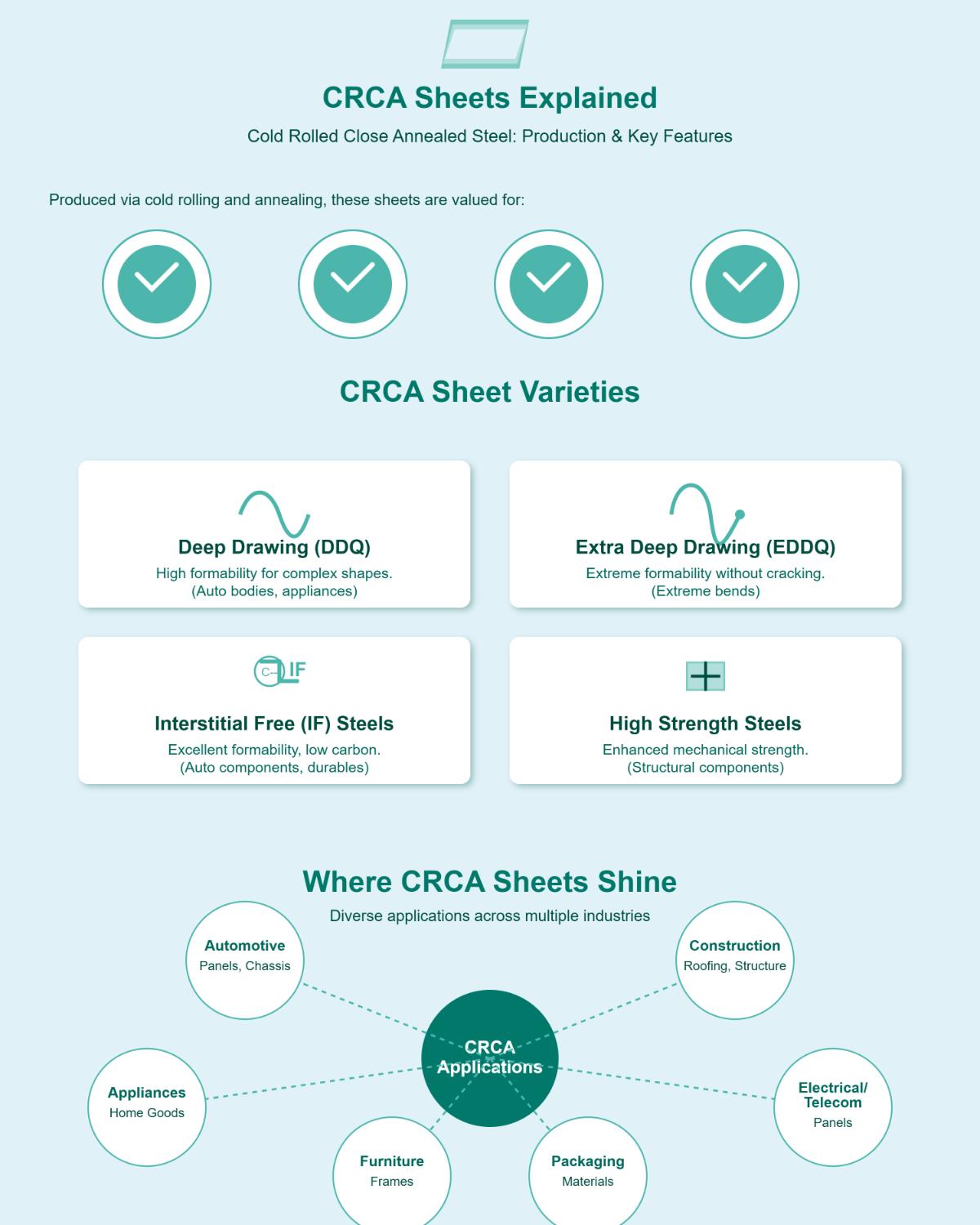

What are the types of CRCA sheets and their applications?

CRCA (Cold Rolled Close Annealed) sheets are steel sheets produced through cold rolling and annealing, known for their excellent surface finish, formability, strength, and corrosion resistance. There are several types of CRCA sheets, each suited for specific applications:

1. Deep Drawing (DDQ) Sheets: These sheets are highly formable, making them ideal for creating complex shapes without breaking. They are commonly used in automotive body panels and appliance manufacturing.

2. Extra Deep Drawing (EDDQ) Sheets: Offering even greater formability than DDQ sheets, EDDQ sheets are perfect for parts requiring extreme bending without cracking.

3. Interstitial Free (IF) Steels: With excellent formability and low carbon content, IF steels are used in automotive body components and consumer durables.

4. High Strength Steels: These sheets provide enhanced mechanical strength, suitable for structural components in construction and other applications needing additional strength.

CRCA sheets are widely used across various industries due to their versatility. In the automotive industry, they are used for body panels, chassis components, and engine parts. In construction, they are employed for roofing, wall cladding, and structural components. The appliance industry uses them for manufacturing home appliances, while the furniture and packaging sectors utilize them for durable frames and packaging materials. Additionally, CRCA sheets are used in electrical panels and telecommunications equipment due to their strength and smooth surface finish.

How are CRCA sheets manufactured?

CRCA sheets, or Cold Rolled Close Annealed sheets, are manufactured through a detailed process that enhances their strength, ductility, and surface finish. The process starts with hot rolling, where steel ingots are heated and rolled into thick sheets with a rough surface. These hot-rolled sheets then undergo pickling, where they are submerged in an acid bath to remove impurities, rust, and scale.

Next, the cleaned sheets are passed through cold rolling mills, which reduce their thickness and improve their mechanical properties, making them harder and stronger. To counteract the brittleness caused by cold rolling, the sheets are annealed in a sealed furnace filled with non-oxidizing gases like nitrogen. This annealing process restores ductility and formability.

What are the benefits of using CRCA sheets in automotive applications?

CRCA (Cold Rolled Close Annealed) sheets are highly beneficial in automotive applications for several reasons. Firstly, they offer high strength and durability, ensuring that car body panels and structural components can withstand significant stress and tension without deforming, which is crucial for vehicle safety and longevity. Secondly, their excellent formability allows these sheets to be easily shaped into complex designs, which is essential for creating intricate vehicle parts and improving aerodynamics. The smooth surface finish of CRCA sheets is aesthetically pleasing and reduces the need for additional processing, saving time and cost. Additionally, CRCA sheets provide a level of corrosion resistance, especially when coated, which helps maintain the integrity of automotive parts over time. They are also cost-effective compared to other materials like stainless steel, making them a budget-friendly choice for manufacturers. Lastly, their lightweight nature contributes to better fuel efficiency and

How does the annealing process affect the properties of CRCA sheets?

The annealing process significantly impacts the properties of CRCA (Cold Rolled Close Annealed) sheets by improving their mechanical and physical characteristics. During annealing, the steel is heated above its recrystallization temperature, soaked at that temperature, and then cooled slowly. This process relieves internal stresses that develop during cold rolling, which enhances the material’s stability and reduces the risk of warping or distortion.

Annealing also restores ductility and formability lost during the cold rolling process, allowing the sheets to be easily bent and shaped for various applications. This improved ductility is crucial for manufacturing components that require complex forming. Additionally, annealing ensures a smooth, uniform surface finish, which is important for applications where aesthetic appeal and paintability are essential.

While annealing decreases the hardness and strength gained from cold rolling, CRCA sheets still maintain superior strength compared to hot-rolled steel. This balance of properties makes them suitable for applications requiring both high load-bearing capacity and precision shaping. Lastly, although annealing itself does not enhance corrosion resistance, the resultant smooth surface finish provides a better base for protective coatings, which can improve resistance to corrosion.

What standards should CRCA sheets comply with for industrial use?

For industrial use, CRCA (Cold Rolled Close Annealed) sheets must comply with specific international standards to ensure quality and consistency. The key standards include:

• IS 513: This Indian standard specifies the requirements for cold-reduced carbon steel sheets and strips, with grades ranging from CR1 to CR5, suitable for various applications such as automotive parts and appliances.
• JIS G 3141: A Japanese standard covering cold-reduced carbon steel sheets and strips, including grades like SPCC, SPCD, and SPCE, commonly used in automobiles and household appliances.
• EN 10130: A European standard for cold-rolled low carbon steel, corresponding to grades like DC01, DC03, and DC04, similar to those in JIS standards.
• ASTM A1008: An American standard for cold-rolled carbon steel sheets, used in various grades that align with those specified in JIS and EN standards.

These standards ensure CRCA sheets meet the required mechanical properties, surface finish, and formability needed for industrial applications.
