Understanding Creep Deformation: A Technical Deep Dive

Imagine a bridge slowly bending under the weight of traffic, or a turbine blade subtly deforming over years of use. These phenomena are not immediate failures but rather gradual changes known as creep deformation. For engineers and material scientists, understanding creep is crucial for designing structures that endure the test of time. In this technical deep dive, we will explore the intricacies of creep deformation, from the temperature ranges that initiate this process in various materials to the stress levels that accelerate it. You’ll learn how different materials exhibit varying degrees of creep resistance and discover practical strategies for minimizing its effects. Join us as we unravel the complexities of creep deformation and delve into the scientific principles that govern this slow but impactful phenomenon. How can engineers ensure the longevity of materials in high-stress environments? Let’s find out.

Key Concepts of Creep Deformation

Introduction to Creep Deformation

Creep deformation is an essential concept in materials science, describing how materials slowly deform under constant stress over time. This phenomenon is particularly significant in engineering applications where materials are exposed to high temperatures and sustained loads, such as in turbines, boilers, and reactors.

Stages of Creep Deformation

Creep deformation unfolds through three distinct stages, each characterized by different strain rates and microstructural changes. The primary stage occurs immediately after the load is applied, featuring a decreasing strain rate due to strain hardening as the material strengthens. This is followed by the secondary, or steady-state stage, where the strain rate remains relatively constant due to a balance between strain hardening and recovery processes. Finally, the tertiary stage is marked by accelerating deformation leading to failure, characterized by increasing strain rates and significant microstructural damage, such as void formation and grain boundary separation.

Mechanisms of Creep Deformation

The fundamental mechanisms driving creep are largely diffusion-based and time-dependent. These mechanisms vary depending on the material, temperature, and applied stress.

Diffusional Flow

Atoms or vacancies move through the material’s structure, causing gradual deformation. This mechanism is significant at high temperatures where atomic mobility is increased.

Dislocation Motion

Dislocations move under stress, allowing plastic deformation to accumulate gradually. Dislocation creep becomes prominent at intermediate to high temperatures.

Grain Boundary Sliding

Grains slide past each other, particularly at elevated temperatures, contributing to deformation. This mechanism is crucial in polycrystalline materials where grain boundaries are abundant.

Temperature and Stress Influence

Creep deformation speeds up as the temperature gets closer to the material’s melting point because atoms move more easily. Higher stresses cause faster creep rates and quicker failure; materials like tungsten need very high temperatures to creep, while lead and ice can creep at much lower temperatures.

Engineering Considerations

Understanding and mitigating creep deformation is vital in designing components for high-temperature applications. Effective strategies include:

• Material Selection: Choosing materials with low creep rates and high melting points.
• Operating Conditions: Ensuring components operate below critical temperatures and stresses to prolong their service life.
• Design Parameters: Incorporating steady-state creep rate into design calculations to predict material longevity and performance.

Understanding the key concepts of creep deformation is essential for managing material behavior under prolonged stress and temperature conditions, ensuring reliability and longevity in engineering applications.

Types of Creep Mechanisms

Nabarro-Herring Creep

Nabarro-Herring creep involves atom movement within the grains of a material, controlled by diffusion. Atoms move from regions of high compressive stress to regions of lower compressive stress within the grains, resulting in the elongation of grains along the stress axis and contraction perpendicular to it.

This mechanism is significant at high temperatures and low stresses, particularly in materials with high purity and large grain sizes. It is dominated by diffusion within the grain interiors rather than along grain boundaries. Nabarro-Herring creep typically occurs in materials with large grain sizes and high purity at high temperatures.

Coble Creep

Coble creep, another diffusion-controlled mechanism, occurs along the grain boundaries rather than within the grain interiors. Atoms diffuse along the grain boundaries, moving from areas of high stress to areas of lower stress, leading to the sliding of grains past each other.

This mechanism is more prevalent in materials with smaller grain sizes and is significant at lower temperatures compared to Nabarro-Herring creep. It is dominated by grain boundary diffusion pathways and is favored in polycrystalline materials where these pathways are more significant. Coble creep is likely to occur at intermediate temperatures.

Dislocation Creep

In dislocation creep, dislocations move within the material under stress. This mechanism involves both dislocation glide, where dislocations move along slip planes, and dislocation climb, where dislocations move perpendicular to the slip planes, aided by the diffusion of atoms.

Dislocation creep is significant at high stresses and elevated temperatures. It occurs in both single crystals and polycrystalline materials, where dislocation movement is facilitated by thermal activation.

Factors Affecting Creep Deformation

Temperature

Temperature plays a crucial role in creep deformation, becoming significant when materials are exposed to temperatures above a specific threshold relative to their melting point. For metals, this threshold is typically around 35% of their melting point (in Kelvin), while for ceramics, it is around 45%. At these elevated temperatures, atomic mobility increases, facilitating diffusion mechanisms essential to creep. For example, tungsten requires extremely high temperatures to exhibit creep, whereas materials like lead can creep even at room temperature. Higher temperatures accelerate atomic diffusion and dislocation motion, thereby exponentially increasing the creep rate.

Stress Levels

The magnitude and type of applied stress significantly impact the rate of creep deformation. Higher stresses generally increase the creep rate, with different creep mechanisms dominating at various stress levels. At lower stresses, diffusion-controlled mechanisms such as Nabarro-Herring and Coble creep are prevalent. These involve atomic diffusion through grain interiors and along grain boundaries, respectively. At higher stresses, dislocation creep mechanisms, including glide and climb of dislocations, become more prominent, accelerating deformation.

Time

Creep deformation progresses through three stages: primary, secondary, and tertiary. Primary creep is characterized by a decreasing strain rate due to work hardening or microstructural evolution. Secondary creep features a relatively constant strain rate as a balance between work hardening and recovery processes is achieved. Tertiary creep sees the strain rate increase exponentially due to mechanisms such as necking, internal cracks, or void formation, eventually leading to failure. The longer a material is subjected to stress and elevated temperatures, the more significant the creep deformation.

Material Type and Microstructure

A material’s composition and microstructure significantly influence its creep behavior. Larger grains can slow down creep deformation, especially for diffusion creep mechanisms like Nabarro-Herring, because the atomic diffusion paths are longer. Conversely, smaller grains can accelerate creep due to the increased grain boundary area where diffusion occurs more easily. Solute-drag creep happens in alloyed materials at high temperatures, where solute atoms deform under stress, affecting creep resistance. The evolution of dislocation networks during creep affects the strain rate. Climb and glide of dislocations are key mechanisms in dislocation creep.

Melting Point (Tm)

The melting point of a material is a fundamental property that influences its susceptibility to creep. Materials with higher melting points generally exhibit better creep resistance because they can withstand higher temperatures before significant creep deformation occurs. For instance, refractory metals and ceramics are often used in high-temperature applications due to their high melting points and inherent creep resistance.

Environmental Factors

Environmental factors like temperature, humidity, and curing conditions can impact creep deformation. For example, higher humidity can increase the creep rate in polymers and composites by affecting the material’s microstructure or promoting chemical degradation. Additionally, the curing conditions during the manufacturing process can influence the material’s final properties and its resistance to creep.

Mechanical Stress and Creep

Understanding Mechanical Stress and Creep

Mechanical stress significantly influences the creep deformation of materials. When a material is subjected to constant mechanical stress over an extended period, especially at elevated temperatures, it gradually deforms—a phenomenon known as creep. The relationship between stress and creep depends on various factors, such as the magnitude of stress, material properties, and environmental conditions.

Stress Levels and Creep Behavior

The level of applied stress greatly impacts the rate and extent of creep deformation. Higher stress levels generally lead to an increased creep rate because higher stress intensifies the movement of dislocations and accelerates the diffusion of atoms within the material’s microstructure.

• Low Stress Levels: At lower stress levels, creep deformation is primarily controlled by diffusion mechanisms such as Nabarro-Herring and Coble creep. These mechanisms involve atoms moving through the lattice or along grain boundaries, which is relatively slow and leads to a lower creep rate.
• High Stress Levels: At higher stress levels, dislocation creep becomes the dominant mechanism. Dislocation creep involves the movement of dislocations through the material, facilitated by processes such as glide and climb. The increased mobility of dislocations at higher stresses leads to a more rapid accumulation of strain.

Types of Mechanical Stress

Mechanical stress can be classified into different types, each affecting creep behavior in unique ways:

• Tensile Stress: When a material is subjected to tensile stress, it experiences elongation. Under constant tensile stress, creep deformation leads to a gradual increase in length over time. This stress is common in structures like bridges and aircraft wings.
• Compressive Stress: Compressive stress causes a material to shorten. In creep, this results in a gradual reduction in height or length. Compressive creep is significant in applications such as columns and supports in buildings and bridges.
• Shear Stress: Shear stress acts parallel to the surface of the material, causing it to deform by sliding layers over each other. Shear creep is critical in applications involving rotational motion or torsion, such as shafts and gears.

Stress Relaxation and Its Role in Creep

Stress relaxation is when the stress in a material decreases over time, but the strain stays the same. This occurs due to the material’s tendency to undergo plastic deformation, reducing internal stresses. Stress relaxation can affect creep by changing the stress distribution within a material, potentially delaying or speeding up creep deformation.

Microstructural Changes Under Stress

The application of mechanical stress can induce various microstructural changes that affect creep behavior:

• Dislocation Movement: Under stress, dislocations move through the material’s lattice, leading to plastic deformation. The rate of dislocation movement and the interactions between dislocations play a crucial role in determining the creep rate.
• Grain Boundary Sliding: In polycrystalline materials, stress can cause grains to slide past each other along grain boundaries. This mechanism is significant at high temperatures and contributes to overall creep deformation.
• Void Formation and Growth: Prolonged stress can lead to the nucleation and growth of voids within the material. These voids can coalesce and form microcracks, eventually leading to material failure.

Stress-Dependent Creep Mechanisms

Different creep mechanisms dominate at various stress levels:

• Newtonian Viscous Creep: At very low stress levels, creep can be described by Newtonian viscous flow, where the strain rate is linearly proportional to the applied stress.
• Power-Law Creep: At intermediate stress levels, creep behavior often follows a power-law relationship, where the strain rate is a power function of the applied stress. This is typical for metals and alloys at high temperatures.
• Exponential Creep: At high stress levels, creep deformation can exhibit an exponential dependence on stress, leading to rapid and significant deformation.

Understanding the interplay between mechanical stress and creep is essential for designing materials and components that can withstand long-term exposure to stress without experiencing excessive deformation or failure. Proper material selection, stress management, and design considerations are crucial in mitigating the adverse effects of creep in engineering applications.

Material Properties and Creep Resistance

Creep Resistance

Creep resistance is a material’s ability to resist deformation when subjected to continuous mechanical stress, particularly at high temperatures. This property is crucial for materials used in high-temperature environments, such as turbines, boilers, and reactors. Various factors influence a material’s creep resistance, including its composition, microstructure, and mechanical properties.

Factors Influencing Creep Resistance

1. Melting Temperature:
   Materials with higher melting temperatures generally exhibit superior creep resistance. Higher melting points mean lower atomic mobility at high temperatures, reducing the chances of creep. For example, refractory metals like tungsten and ceramics are known for their excellent high-temperature creep resistance.

2. Microstructure:
   A material’s microstructure, such as grain size and precipitates, greatly influences its creep resistance. Larger grains reduce the number of grain boundaries, which are preferred sites for creep deformation, thereby enhancing creep resistance. Additionally, the presence of fine, stable precipitates can impede dislocation motion, further improving creep strength.

3. Alloying Elements:
   Alloying elements can improve creep resistance through solid solution strengthening (where elements dissolve in the base metal and hinder dislocation motion), precipitation hardening (forming fine precipitates that block dislocation movement), and particle dispersion strengthening (dispersing stable particles like oxides or carbides that obstruct dislocation and grain boundary sliding).

4. Diffusivity:
   Lower atomic diffusivity at operating temperatures helps reduce creep by limiting the movement of atoms and defects. Materials with lower diffusivity, such as certain high-temperature alloys and ceramics, are more resistant to creep.

5. Shear Strength:
   Higher shear strength materials resist dislocation motion more effectively, thereby enhancing creep resistance. This is why materials like nickel-based superalloys, which have high shear strength, are commonly used in high-temperature applications.

Comparison of Material Properties

Different materials exhibit varying degrees of creep resistance based on their inherent properties and composition. Below is a comparison of some common materials used in high-temperature applications:

1. Metals:

   • Nickel-Based Superalloys: Known for their excellent creep resistance due to high melting points, solid solution strengthening, and precipitation hardening. Commonly used in turbine blades and jet engines.
   • Stainless Steels: Austenitic stainless steels, such as SA213 TP321H, offer good creep resistance due to their stable microstructure and high-temperature stability. They are used in high-temperature steam lines and boilers.

2. Ceramics:

   • Silicon Carbide (SiC): Exhibits exceptional creep resistance due to its high melting point and low diffusivity. Used in high-temperature furnace components and heat exchangers.
   • Alumina (Al2O3): Offers excellent creep resistance, making it suitable for applications in refractory linings and protective coatings.

3. Polymers:

   • Polyimides: These high-performance polymers exhibit good creep resistance at moderately high temperatures, used in aerospace and electronics applications.
   • PPS (Polyphenylene Sulfide): Known for its thermal stability and moderate creep resistance, commonly used in automotive and industrial components.

Recent Developments

Recent innovations aim to develop materials with superior creep resistance for critical high-temperature applications. These advancements include:

• Single-Crystal Superalloys: These materials eliminate grain boundaries, significantly improving creep resistance and are used in turbine blades.
• Advanced Ceramics: New ceramic compositions and fabrication methods enhance creep resistance, making them suitable for extreme environments.
• Composite Materials: Combining materials to leverage their individual strengths, such as metal matrix composites and ceramic matrix composites, offers improved creep resistance.

Understanding the material properties and factors influencing creep resistance is essential for selecting the appropriate materials for high-temperature applications, ensuring reliability, and extending the service life of components.

Time Dependency in Creep Deformation

Creep deformation is a gradual process where a material slowly deforms under constant stress and elevated temperature over time. Understanding this time-dependent behavior is crucial for predicting and managing material performance in engineering applications.

Creep deformation progresses through three distinct stages. In the primary stage, deformation occurs quickly but slows down as the material adjusts to the stress. The secondary stage, or steady-state creep, features a constant creep rate and can last for most of the material’s life under stress. Finally, the tertiary stage is marked by an accelerating creep rate leading to failure due to microstructural changes such as void formation and grain boundary separation.

Several factors influence the time-dependent nature of creep deformation. Higher stress levels lead to faster creep rates, while lower stress levels slow it down. Elevated temperatures enhance atomic mobility, accelerating the creep process. The material’s composition and microstructure also play a significant role in its resistance to creep, with materials having high melting points and stable microstructures exhibiting better long-term resistance.

The rate at which a material deforms due to creep depends on time, temperature, and applied stress. Engineers use various models to predict this behavior. Norton’s Law, for instance, describes how the creep rate is influenced by stress and temperature. Simplified, it explains that higher stress and temperature increase the rate of creep.

Predictive models like the time-hardening model consider the increase in creep strain over time, expressed as a function of initial strain and material constants. Temperature-compensated models, such as those using the Larson-Miller parameter, help predict creep life by combining temperature and time to estimate when a material will fail.

Understanding these models and factors is essential for designing materials and components capable of withstanding long-term exposure to stress and temperature, ensuring reliability and safety in high-temperature applications.

Temperature-Stress-Time Interdependence in Creep

Creep deformation is a crucial phenomenon in materials science where materials gradually change shape under constant stress, influenced mainly by temperature, stress levels, and exposure duration.

Temperature Influence on Creep

As the temperature rises, atomic mobility within the material increases, enhancing diffusion processes and leading to faster deformation and a shorter material lifespan. For instance, at elevated temperatures, mechanisms such as dislocation climb and lattice diffusion become more dominant, significantly affecting the creep behavior.

Higher temperatures facilitate the movement of atoms and vacancies, increasing the creep rate. This relationship is often observed in metals, where the threshold temperature for significant creep deformation is typically around 35% of the material’s melting point (in Kelvin). For ceramics, this threshold is approximately 45%. Materials like tungsten require extremely high temperatures to exhibit creep, whereas lead and other low melting point materials can creep at much lower temperatures.

Stress Levels and Creep Deformation

Stress levels are equally crucial in determining the rate of creep deformation. At lower stress levels, atomic movements within grains and along grain boundaries dominate, while higher stress levels increase dislocation movements, speeding up the deformation. Managing stress levels is vital in mitigating creep deformation in engineering applications.

Time Dependency in Creep Deformation

Creep deformation progresses through three stages:

• Primary Stage: The initial stage features a decreasing strain rate due to work hardening.
• Secondary Stage: Characterized by a constant strain rate as a balance between work hardening and recovery processes is achieved.
• Tertiary Stage: The final stage where the strain rate accelerates until failure, driven by mechanisms such as void formation and grain boundary separation.

Empirical models capture the progressive nature of creep over time, highlighting the continuous evolution of deformation.

Interdependence of Temperature, Stress, and Time

Higher temperatures and stress levels speed up creep, and the longer a material is exposed to these conditions, the more it deforms. Understanding this relationship is crucial for predicting material behavior under long-term stress. Recent studies emphasize the role of diffusion-based mechanisms and the application of Gibbs free energy to correlate creep data effectively. These insights are instrumental in developing materials with enhanced creep resistance for high-temperature applications.

Practical Implications

Understanding the interdependence of temperature, stress, and time in creep deformation allows engineers to design materials and components that can withstand prolonged exposure to stress and elevated temperatures. Effective strategies include optimizing grain size, selecting materials with high melting points and inherent creep resistance, and managing operating conditions to minimize stress and temperature levels.

By comprehensively analyzing these factors, engineers can predict material performance and longevity, ensuring reliability and safety in high-temperature applications.

Practical Solutions for Creep Prevention

Material Selection and Design Considerations

Selecting appropriate materials and designing components to resist creep are essential for preventing deformation.

High-Temperature Alloys

High-temperature alloys, such as nickel-based superalloys and titanium aluminides, are engineered to endure extreme conditions in aerospace, power plants, and other high-stress environments, exhibiting excellent creep resistance by delaying primary and secondary creep stages and inhibiting dislocation movement.

Composite Materials

Fiber-reinforced composites like carbon fiber and ceramic matrix composites enhance creep resistance by evenly distributing stress. These materials are particularly beneficial in applications where weight reduction and high strength are crucial.

Grain Boundary Engineering

Optimizing grain size and orientation can significantly reduce creep deformation. Fine-grained materials often show better creep resistance at lower temperatures, while coarse grains perform better at elevated temperatures by minimizing grain boundary sliding, a key contributor to tertiary creep.

Stress and Temperature Management

Effective management of stress and temperature is vital in mitigating creep deformation.

Stress Redistribution

Design components to avoid localized stress concentrations, such as rounded corners and fillet radii, which can reduce creep initiation sites. This approach ensures a more uniform distribution of stress across the component.

Cooling Systems

Active cooling systems, such as internal fluid channels, can reduce thermal gradients and slow creep in high-temperature applications. This is particularly important in maintaining the structural integrity of components exposed to extreme heat.

Load Redistribution

Using redundant structural supports or load-sharing mechanisms can prevent overloading individual components, thereby reducing the risk of creep deformation.

Surface Treatments and Coatings

Applying surface treatments and coatings can protect materials from environmental factors that accelerate creep.

Protective Coatings

Thermal barrier coatings (TBCs), like yttria-stabilized zirconia (YSZ), insulate substrates from extreme heat, reducing thermally activated creep. These coatings are essential in applications such as gas turbines and jet engines.

Diffusion Barriers

Nitride or carbide coatings can inhibit corrosive or oxidative degradation that accelerates creep. These barriers are particularly useful in high-temperature and chemically aggressive environments.

Conformal Coatings

For electronic components exposed to sulfur-rich environments, conformal coatings like acrylic or silicone can prevent chemical-induced creep corrosion, enhancing the longevity and reliability of the components.

Advanced Manufacturing Techniques

Modern manufacturing techniques offer precise control over material properties, enhancing creep resistance.

Additive Manufacturing

Laser powder bed fusion (LPBF) allows for precise control of microstructures, reducing porosity and enhancing creep resistance. This technique is beneficial for producing complex, high-performance components.

Shot Peening

Inducing compressive residual stresses on surfaces through shot peening can counteract tensile stresses that drive creep, thereby improving material durability.

Heat Treatment

Heat treatment processes, such as aging or annealing, optimize precipitate formation (e.g., γ′ phases in superalloys) to impede dislocation motion, enhancing creep resistance.

Monitoring and Predictive Maintenance

Integrating monitoring systems and predictive maintenance can help detect and address creep deformation early.

Real-Time Monitoring and Non-Destructive Testing

Embedding real-time monitoring systems like strain gauges and sensors enables early detection and intervention for creep deformation, while non-destructive methods such as ultrasonic testing and digital image correlation (DIC) ensure continuous monitoring of material integrity without disassembly.

Machine Learning Models

Training algorithms on historical creep data can predict failure thresholds and schedule maintenance proactively, reducing the risk of unexpected failures.

Operational Best Practices

Implementing best practices in operations can significantly mitigate creep deformation.

Load Cycling Avoidance

Minimizing cyclic loading in high-temperature environments reduces fatigue-creep interactions, which can exacerbate creep deformation.

Environmental Controls

In industrial settings, using sealed enclosures or air filtration systems, such as carbon filters, can limit exposure to corrosive agents like sulfur, which exacerbate creep corrosion.

Regulatory and Compliance Alignment

Adhering to industry standards and compliance guidelines ensures the use of materials and practices that mitigate creep.

Industry Standards

Following standards like ASTM E139 (creep testing standards) or ISO 204 (creep-resistant material specifications) is crucial for material qualification and ensuring consistent creep resistance.

Lifecycle Analysis

Integrating creep life prediction models, such as the Larson-Miller parameter, into design phases ensures compliance with safety margins and helps predict the material’s lifespan under stress and temperature conditions.

Key Challenges and Emerging Solutions

Addressing key challenges and leveraging emerging solutions can further enhance creep prevention strategies.

Nanostructured Materials

Graphene-reinforced metals and nanocrystalline alloys show promise in suppressing dislocation climb through nanoscale grain boundaries, offering improved creep resistance.

Self-Healing Materials

Microencapsulated healing agents within matrices can autonomously repair creep-induced microcracks, extending the material’s lifespan.

Hybrid Cooling

Combining passive (e.g., heat sinks) and active (e.g., thermoelectric) cooling techniques can effectively manage thermal creep in microelectronics, ensuring reliable performance.

Creep Testing Standards and Methods

Creep Testing Standards

Creep testing standards are crucial for accurately assessing how materials deform over long periods under constant stress. These standards provide detailed procedures and guidelines for conducting creep tests and interpreting the results.

ISO 899

ISO 899 is a widely recognized standard for creep testing of plastics, comprising two parts: ISO 899-1, which focuses on tensile creep tests under a constant tensile load, and ISO 899-2, which covers flexural creep tests involving constant bending stress.

ASTM E139

ASTM E139 is a key standard for creep testing of metals and other materials. It outlines methods for determining deformation as a function of time under constant stress and temperature. This standard is critical for materials used in high-temperature applications, such as turbine blades and boiler components.

ASTM D2990

ASTM D2990 is relevant for creep testing of plastics. It provides guidelines for conducting tests to measure the time-dependent deformation of plastic materials under constant load and temperature conditions.

Other Relevant ASTM Standards

• ASTM D2290: Pertains to the creep testing of plastics, particularly focusing on testing plastic pipes and fittings.
• ASTM D2291: Covers creep testing procedures for plastics with different specimen geometries or testing conditions.
• ASTM D2294: Includes methods for evaluating the creep behavior of plastics under various environmental conditions.

Creep Testing Methods

Creep testing involves three stages: Primary creep, where the creep rate initially increases rapidly; Secondary creep, the longest stage with a steady creep rate; and Tertiary creep, where the creep rate accelerates and often leads to material failure.

Specimen Preparation and Testing

Tensile specimens are commonly used for creep tests. These specimens are precisely dimensioned to ensure consistent results. A constant stress is applied, typically using weights or hydraulic systems, and the test is conducted in controlled temperature conditions.

Data Analysis

• Creep Curves: Deformation data collected over time is used to generate creep curves, plotting strain versus time to understand the material’s long-term behavior.
• Creep Rate: The rate at which strain increases during each stage of creep is analyzed to provide insights into the material’s properties, with the secondary creep rate being particularly important for predicting material performance.
• Stress-Relaxation: Measures the decrease in stress over time when a specimen is deformed by a fixed amount at a constant elevated temperature, complementing creep tests by providing additional information on material behavior under sustained deformation.

Equipment for Creep Testing

Modern creep testing machines feature multiple test axes, allowing simultaneous testing of several specimens for statistically significant data. High-precision video measurement systems optically determine specimen strain with high accuracy, reducing errors. Controlled temperature chambers maintain a stable environment throughout the test.

Case Studies of Creep Failure in Industry

In a high-temperature furnace, five threaded rods failed due to the combined effects of high temperatures and sustained tensile forces over an extended period, resulting in creep rupture.

The threaded rods experienced creep rupture, which happens when a material subjected to constant stress at high temperatures deforms and eventually breaks. The rods underwent significant material degradation due to high temperatures, leading to the formation of massive carbides within the material, weakening the structure and contributing to the failure. No manufacturing defects were found, indicating that environmental conditions and inherent material properties played a crucial role in the creep failure.

Reformer tubes in a petrochemical plant failed after 90,000 hours of operation at 950°C. This case highlights the impact of long-term high-temperature exposure on material performance. The tubes were subjected to prolonged exposure at very high temperatures, leading to longitudinal cracks and significant creep deformation.

Analysis revealed typical grain structures of heat-resistant alloys. Chromium-rich and niobium carbides were observed, forming a distinctive "Chinese script" morphology. These carbides had coalesced and coarsened over time. The presence of creep voids throughout the tube thickness was a major factor in the failure. These microstructural changes, including carbide formation and voids, were crucial in understanding the creep mechanisms at play.

A North American refinery conducted a creep assessment on heater tubes to determine the feasibility of operating at elevated temperatures while utilizing current operational margins. The refinery wanted to understand the accumulated creep damage and estimate the remaining life of heater tubes under planned high-temperature conditions. The assessment utilized a multi-axial Omega creep model. This advanced model helped evaluate the creep damage and predict the remaining service life of the tubes. The study emphasized the importance of predicting creep life to prevent unexpected failures. The use of advanced modeling techniques provided valuable insights for optimizing operational conditions and maintenance planning, ultimately enhancing equipment reliability and availability.

Frequently Asked Questions

Below are answers to some frequently asked questions:

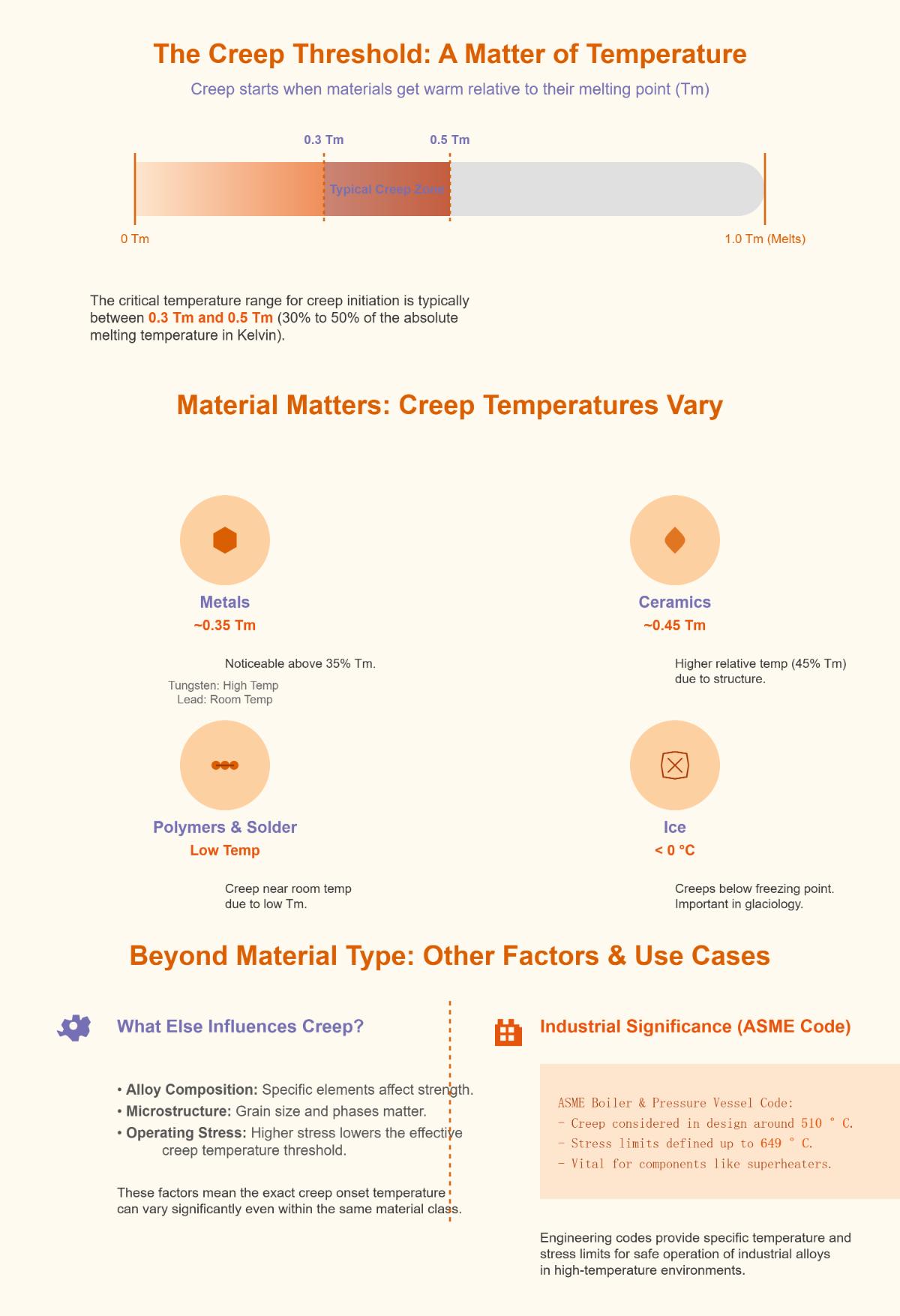

What temperature range initiates creep in different materials?

Creep deformation initiates at temperatures that are a fraction of the material’s absolute melting temperature (Tm in Kelvin). Typically, this range is between 0.3 to 0.5 Tm. For metals, creep generally starts to be noticeable above approximately 0.35 Tm. For example, tungsten, with a high melting point, requires temperatures in the thousands of degrees Celsius for creep to begin, whereas lead can exhibit creep at room temperature due to its low melting point.

Ceramics tend to creep at slightly higher relative temperatures, around 0.45 Tm, due to their unique bonding and microstructure. Polymers and low-melting-point metals, such as solder materials, can show creep deformation at room temperature or slightly above, reflecting their lower melting points and molecular structure. Ice can creep even below 0 °C, which is significant in glaciology.

The exact temperature at which creep begins also depends on alloy composition and microstructure. Industrial alloys used in applications such as superheaters have varied creep onset temperatures depending on material and operating stresses. For example, in the ASME Boiler and Pressure Vessel Code, design temperature limits for creep considerations are around 510 °C, with allowable stresses up to 649 °C.

How do stress levels affect creep deformation rates?

Stress levels significantly influence creep deformation rates in materials. Creep deformation, a time-dependent and permanent deformation occurring under constant stress, is highly sensitive to the magnitude of the applied stress. At higher stress levels, the rate of creep deformation increases due to the enhanced movement of dislocations and grain boundary sliding.

In the primary (transient) creep stage, the strain rate is initially high and decreases over time as materials undergo work hardening or microstructural adjustments. During the secondary (steady-state) creep stage, the creep rate becomes relatively constant and is described by the Norton equation, where the strain rate is proportional to the applied stress raised to a power, indicating a direct relationship between stress and creep rate. Higher stress levels lead to increased dislocation movement and vacancy diffusion, accelerating creep deformation.

In the tertiary creep stage, the strain rate accelerates dramatically as the material undergoes localized necking, void formation, and microstructural degradation, which are exacerbated by high stress levels. Therefore, controlling stress levels is crucial in managing creep deformation rates and ensuring the longevity and reliability of materials in engineering applications.

Which materials exhibit the best creep resistance?

Materials that exhibit the best creep resistance include superalloys, ceramics, and certain high-performance polymers. Superalloys, particularly those based on nickel, cobalt, and iron, are designed to maintain their strength and structural integrity at high temperatures, making them ideal for applications such as aircraft engines and gas turbines. Ceramics, such as silicon carbide and aluminum oxide, also offer excellent creep resistance due to their high melting points and strong atomic bonding, which makes them suitable for high-temperature structural components.

Among polymers, Polyamide-Imide (PAI) stands out for its superior creep resistance and low thermal expansion, making it suitable for high-performance applications that require tight tolerances. Polydicyclopentadiene (pDCPD) is another thermoset polymer known for its high tensile strength and impact resistance, although it cannot be remolded or recycled.

The choice of material for optimal creep resistance depends on the specific requirements of the application, including temperature, stress levels, and environmental conditions. Each material has unique properties that make it suitable for different scenarios where minimizing deformation over time is crucial.

What are the practical methods to reduce creep in engineering applications?

To reduce creep in engineering applications, several practical methods can be employed. First, selecting materials with high creep resistance, such as nickel-based superalloys and stainless steels, is crucial. These materials possess high melting points and strong atomic bonds that slow down atomic diffusion and dislocation movement, thereby reducing creep rates. Solid solution strengthening and particle dispersion techniques further enhance creep resistance by impeding atomic mobility and blocking dislocation motion.

Design optimization is another effective strategy, involving thicker cross-sections and adequate support structures to minimize stress concentration. Operating condition control, such as reducing service temperatures and applied stresses, also directly decreases creep rates.

Heat treatments that refine or stabilize microstructures improve creep resistance by promoting phase stability and precipitate distribution. Protective coatings prevent oxidation and corrosion at elevated temperatures, maintaining material integrity.

Real-time monitoring using sensors allows early detection of creep damage, enabling timely maintenance. Predictive models integrated with sensor data help forecast failure, reducing unscheduled downtime.

Lastly, material substitution and hybrid designs, such as combining metals with ceramic matrix composites, offer improved high-temperature performance while maintaining lightweight properties.

By integrating these methods, engineers can effectively mitigate creep deformation and ensure the reliability of high-temperature components.

How does time influence creep strain development?

Time significantly influences creep strain development by impacting the deformation stages of materials under constant stress. The effect of time on creep is evident in the three distinct stages of creep: primary, secondary, and tertiary.

During the primary stage, the creep rate decreases over time due to microstructural changes such as increased dislocation density. This results in a concave strain-time curve. In the secondary stage, the creep rate stabilizes, leading to a linear strain-time relationship. This stage provides a steady baseline for understanding material behavior under prolonged stress. In the tertiary stage, the creep rate accelerates as structural damage, such as internal cracks and voids, becomes more pronounced, resulting in an upward convex curve indicating rapid deformation and potential failure.

Time’s role is crucial because the longer a material is subjected to stress, the more significant the creep strain becomes. Even in the secondary stage, where the rate is constant, the total strain accumulates over time. Additionally, the interaction of time with temperature and stress further influences creep, as higher temperatures and prolonged stress exposure typically increase creep rates. Understanding these temporal effects is essential for predicting material performance and longevity under continuous stress conditions.
