Understanding Different Types of Bushings and Their Benefits

Imagine a world where every car ride is smooth, every machine operates flawlessly, and every piece of industrial equipment runs efficiently. The secret behind this seamless operation often lies in a small, yet crucial component: the bushing. Whether you’re new to the world of machinery or simply curious about how these unassuming parts make a significant impact, understanding the different types of bushings and their benefits can greatly enhance your knowledge and application of them. From rubber bushings that offer flexibility and noise reduction to polyurethane options known for their durability and performance, each type of bushing serves a unique purpose. Ready to explore the fascinating world of bushings and discover how choosing the right type can transform your projects? Let’s dive in.

Introduction to Bushings

Understanding Bushings

Bushings are fundamental components in mechanical systems, engineered to reduce friction, absorb shocks, and extend the lifespan of machinery. Bushings are usually cylindrical inserts placed in a housing to create a bearing surface for rotating or sliding shafts. This helps in maintaining alignment and reducing wear between moving parts.

Function and Importance

Bushings serve several critical functions:

• Friction Reduction and Shock Absorption: By providing a smooth, low-friction interface, bushings minimize wear and tear on moving parts and absorb vibrations and shocks, which helps protect components from damage and reduces noise.
• Load Distribution: They help distribute the load evenly across the surface, preventing localized stress and extending the life of the components.
• Alignment: Bushings maintain the alignment of moving parts, ensuring smooth operation and preventing misalignment issues.

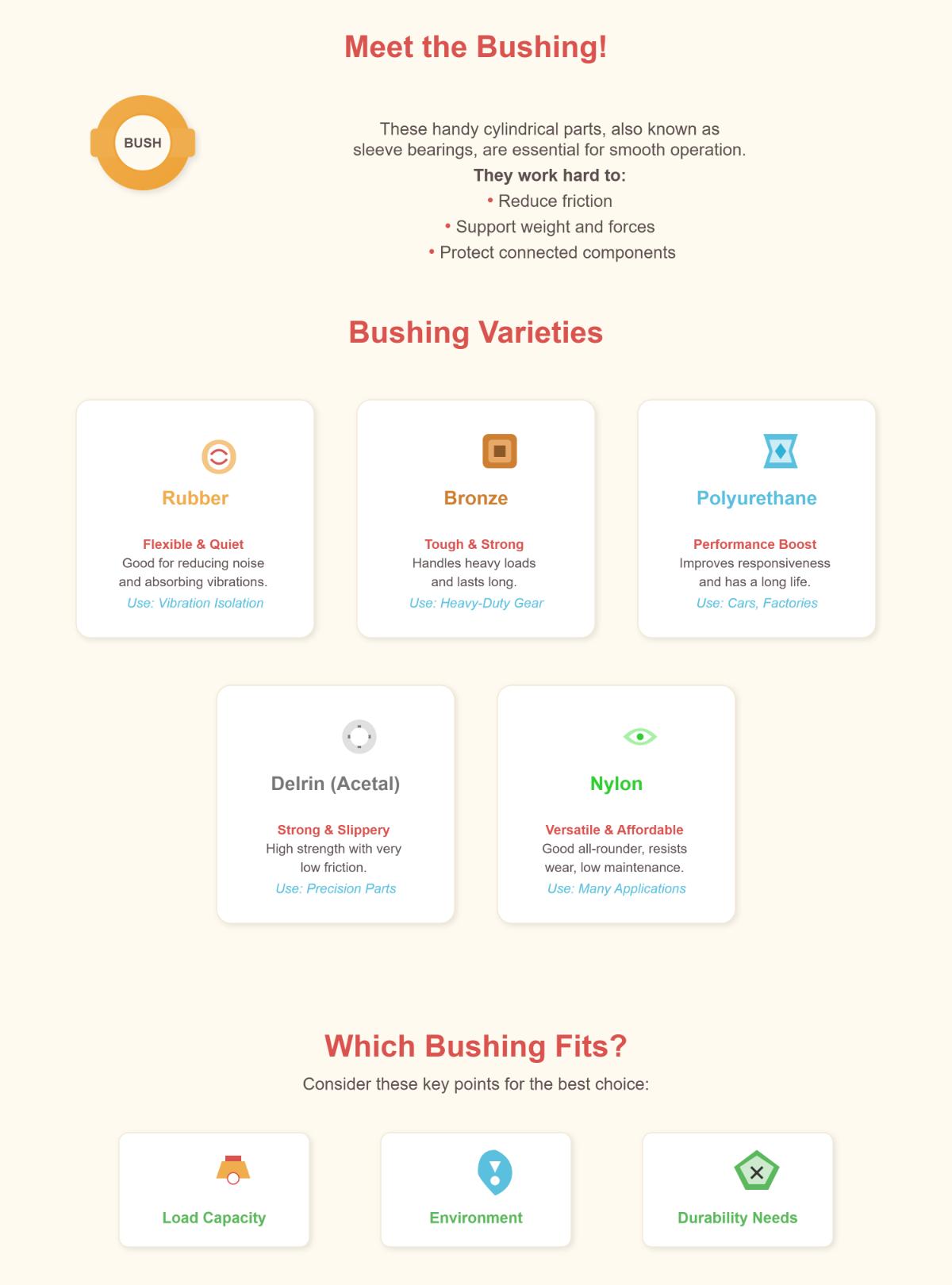

Basic Types of Bushings

Bushings come in various types, each designed to meet specific operational requirements:

• Sleeve Bushings: Also known as plain bushings, these are simple cylindrical liners that fit into a housing to provide a bearing surface for rotary or sliding applications.
• Flanged Bushings: These have a flange at one end to provide additional support and prevent axial movement along the shaft.
• Thrust Bushings: Designed to handle axial loads, these bushings are commonly used in applications where there is significant axial force.
• Spherical Bushings: Allow for angular movement and accommodate misalignment, making them suitable for applications such as automotive suspensions.
• Split Bushings: These have a longitudinal cut, allowing for easy installation and removal without the need to disassemble surrounding components.

Material Considerations

The material of a bushing significantly influences its performance and suitability for different applications:

• Rubber: Offers excellent flexibility and vibration damping, commonly used in automotive suspension systems.
• Bronze: Known for its durability and load-bearing capacity, often used in heavy machinery.
• Polyurethane: Provides enhanced performance and longevity, ideal for high-stress environments.
• Delrin: Delrin, a strong and low-friction acetal resin, is ideal for precision applications.
• Nylon: Versatile and cost-effective, used in a wide range of applications due to its balance of strength and flexibility.

Key Benefits

Bushings offer several advantages that make them indispensable in mechanical systems:

• Cost-Effectiveness: Bushings are usually affordable and easy to replace, making them a cost-effective way to reduce machinery wear and tear.
• Low Maintenance: Many bushings require minimal maintenance, especially self-lubricating types that do not need additional lubrication.
• Versatility: Bushings can be used in a wide array of applications, from automotive systems to industrial machinery and aerospace components.

Understanding bushings’ roles and benefits helps engineers choose the right type and material to improve mechanical systems’ efficiency and durability.

Common Types of Bushings

Rubber Bushings

Rubber bushings are popular in various applications due to their flexibility and ability to absorb vibrations effectively. They are typically made from natural or synthetic rubber, which provides a soft and compliant interface between moving parts.

Applications

• Automotive Suspension Systems: Rubber bushings are commonly used in car suspensions to reduce noise, vibration, and harshness (NVH).
• Engine Mounts: They help dampen engine vibrations and prevent them from being transmitted to the chassis.

Bronze Bushings

Bronze bushings are durable and have a high load-bearing capacity, made from an alloy of copper and tin that offers excellent wear resistance and longevity.

Applications

• Industrial Machinery: Used in heavy machinery due to their ability to handle substantial loads and harsh operating conditions.
• Marine Environments: Bronze bushings resist corrosion, making them suitable for marine applications.

Polyurethane Bushings

Polyurethane bushings last longer and perform better than rubber bushings. They are made from a durable polymer material that offers greater stiffness and resistance to wear and tear.

Applications

• High-Performance Automotive: Polyurethane bushings are used in performance vehicles to improve handling and responsiveness.
• Heavy-Duty Machinery: Ideal for applications requiring high resilience and long service life.

Delrin Bushings

Delrin bushings, made from acetal resin, are known for their strength, low friction, and dimensional stability, making them ideal for precision applications.

Applications

• Precision Equipment: Used in applications requiring tight tolerances and smooth operation, such as robotics and automation systems.
• Electrical Insulation: Delrin’s electrical insulating properties make it useful in electrical and electronic applications.

Nylon Bushings

Nylon bushings are versatile and cost-effective. They are made from a thermoplastic material that provides a good balance of strength, flexibility, and wear resistance.

Applications

• Consumer Goods: Commonly used in household appliances and consumer products due to their affordability and reliability.
• General Industrial Use: Suitable for a wide range of industrial applications, including conveyor systems and machinery components.

Comparison Chart of Bushing Types

Benefits of Different Bushing Materials

Rubber Bushings: Flexibility and Noise Reduction

Rubber bushings are popular because they are flexible and reduce noise. They can accommodate slight misalignments and movements, reducing stress on mechanical components and significantly lowering noise by absorbing vibrations, making them ideal for automotive and machinery applications.

Bronze Bushings: Durability and Load Capacity

Bronze bushings are durable and can carry heavy loads. Made from an alloy of copper and tin, they provide excellent wear resistance and longevity, making them suitable for applications with high friction and heavy loads.

Polyurethane Bushings: Enhanced Performance and Longevity

Polyurethane bushings have higher stiffness, improving handling and responsiveness in high-performance automotive applications. They are also more resistant to oils, chemicals, and environmental factors, which extends their service life.

Delrin Bushings: High Strength and Low Friction

Delrin bushings, made from acetal resin, are prized for their high strength and low friction properties. These characteristics make them ideal for precision applications. Delrin bushings can withstand significant mechanical stress, making them suitable for applications requiring tight tolerances. The low friction coefficient of Delrin reduces wear and improves the efficiency of moving parts, which is beneficial in precision equipment and automation systems.

Nylon Bushings: Versatility and Cost-Effectiveness

Nylon bushings are versatile and affordable, making them popular for many applications. As a thermoplastic, nylon offers a good mix of strength, flexibility, and wear resistance. Nylon bushings can be used in a wide range of applications, from household appliances to industrial machinery, due to their adaptable properties. They provide a budget-friendly option without compromising on performance, making them ideal for general-purpose use.

Selection Criteria for Bushings

Choosing the right bushing starts with understanding your specific application needs. Different applications impose varying demands on bushings, such as load-bearing capacity, speed, and environmental conditions. Identifying these requirements will help you choose the most suitable bushing type and material.

Comparing Material Properties

Load Capacity

Bushings must withstand the forces applied without deforming or failing. Materials like bronze and steel are known for their high load-bearing capabilities, making them ideal for heavy machinery and industrial use.

Operating Conditions

Consider the operating conditions, including temperature, speed, and lubrication. High-temperature environments require materials that can maintain their integrity under heat, such as bronze or certain polymers. For high-speed applications, low-friction materials like Delrin are advantageous.

Considering Environmental Factors

Corrosion Resistance

In environments exposed to moisture, chemicals, or other corrosive elements, corrosion resistance is vital. Materials like bronze and certain polymers offer excellent resistance to corrosion, ensuring longevity and reliability.

Temperature Resistance

Bushings must withstand the operational temperatures of their application without degrading. High-temperature polymers or metals like bronze are ideal for applications with significant thermal variations.

Lubrication Requirements

Self-Lubricating vs. External Lubrication

Some bushings, like those made from PTFE composites, are self-lubricating and do not require additional lubrication, which makes them low-maintenance. Others, such as bronze bushings, may need regular lubrication to perform optimally. Understanding the lubrication needs helps in selecting a bushing that fits your maintenance capabilities and operational efficiency.

Cost and Availability

Budget Constraints

While choosing the best material is essential, cost and availability also play significant roles. Nylon bushings, for instance, offer a cost-effective solution without compromising too much on performance. Weighing the initial cost against the long-term benefits and maintenance needs will help in making an informed decision.

Applications of Bushings

Automotive Systems

Bushings play a crucial role in automotive systems by providing support, reducing friction, and absorbing shocks. They are widely used in various components to enhance vehicle performance and longevity.

Suspension Systems

In suspension systems, bushings are essential for absorbing road shocks, reducing noise, vibration, and harshness (NVH), and allowing controlled movement between suspension parts to improve ride comfort and handling.

Engine Mounts

Bushings are used in engine mounts to dampen vibrations and noise from the engine. This prevents vibrations from reaching the vehicle’s chassis, ensuring a smoother and quieter ride.

Industrial Machinery

Bushings are integral to the smooth operation of industrial machinery, where they help reduce friction, wear, and noise. They are used in various types of equipment to ensure efficient and reliable performance.

Bearings and Load Supports

In industrial machinery, bushings act as bearings and load supports. They create a low-friction interface between moving parts, which reduces wear and extends equipment life. Bushings are often used in gear assemblies, conveyor systems, and hydraulic cylinders.

Aerospace Components

In the aerospace industry, bushings are critical for ensuring the smooth and reliable operation of various components. They help in reducing friction and wear, which is essential for the safety and efficiency of aircraft.

Landing Gear Systems

Bushings are used in landing gear systems to provide smooth operation and absorb shocks during landing. They help in maintaining the alignment and reducing wear on the landing gear components.

Control Surfaces

Bushings are also used in the control surfaces of aircraft, such as ailerons, elevators, and rudders. They ensure smooth, precise movement crucial for aircraft control and stability.

Vibration Isolation

Bushings are widely used for vibration isolation in various applications. They help in absorbing vibrations and reducing noise, which is important for both comfort and the longevity of the equipment.

HVAC Systems

In HVAC (Heating, Ventilation, and Air Conditioning) systems, bushings are used to isolate vibrations from motors and fans. This helps in reducing noise and preventing damage to the system components.

Machinery and Equipment

Bushings are used in various types of machinery and equipment to isolate vibrations and reduce noise. This not only improves the working environment but also extends the life of the equipment by preventing vibration-related wear and damage.

Marine Industry

In the marine industry, bushings are used in various applications to ensure smooth operation and resistance to harsh marine environments.

Propeller Shafts

Bushings are used in propeller shafts to reduce friction and wear, ensuring smooth and efficient operation. They are designed to withstand the corrosive effects of seawater and the mechanical stresses of propeller operation.

Rudder Systems

In rudder systems, bushings help in maintaining the alignment and smooth movement of the rudder. This is essential for the precise control and maneuverability of the vessel.

Plumbing Systems

Bushings are also used in plumbing systems to connect pipes of different sizes. They ensure secure, leak-proof connections, facilitating efficient fluid or gas flow.

Pipe Connections

In plumbing applications, bushings are used to connect pipes of varying diameters. They provide a tight seal and prevent leaks, ensuring the smooth flow of fluids through the system.

Bushings are versatile components that find applications across various industries due to their ability to reduce friction, absorb shocks, and support loads. Their use in automotive, industrial, aerospace, marine, and plumbing systems highlights their importance in enhancing the performance and longevity of mechanical systems.

Environmental Impact and Sustainability of Bushings

Bushings play a vital role in mechanical systems by reducing friction, vibration, and wear between moving parts. As environmental concerns grow, it is important to consider the sustainability of different bushing materials.

Recyclability of Bushing Materials

Different bushing materials offer varying degrees of recyclability, which significantly impacts their environmental footprint.

Aluminum Bronze Bushings

Aluminum bronze bushings are fully recyclable, reducing the need for new raw materials and minimizing waste. This material’s recyclability makes it a sustainable choice for heavy-duty applications.

Polyurethane Bushings

Polyurethane bushings are synthesized from renewable and recycled materials. This reduces reliance on fossil fuels and supports a circular economy. Additionally, polyurethane bushings are more easily recyclable at the end of their lifecycle.

Lubrication-Free and Environmentally Safe Designs

Bushings that do not require lubrication offer environmental benefits by reducing pollution and maintenance needs. Moreover, selecting materials that avoid harmful substances can further improve environmental safety.

Plastic Bushings

Plastic bushings, like those made by igus, eliminate the need for lubrication, which helps prevent environmental pollution. Their lightweight nature also reduces fuel consumption and carbon emissions in applications such as vehicles and aircraft.

Aluminum Bronze Bushings

Aluminum bronze bushings do not contain plastic coatings that may have harmful PFAS (per- and polyfluoroalkyl substances). This makes them a safer and more eco-friendly option.

Longevity and Durability

Bushings with extended lifecycles reduce waste and the environmental impact associated with frequent replacements.

Polyurethane Bushings

Polyurethane bushings last longer than traditional rubber ones. Their enhanced durability means fewer replacements, leading to less waste and a lower environmental impact over time.

Eco Fluid Bushings

Eco fluid bushings are designed to last up to 30 years without maintenance. This long lifespan significantly reduces the environmental impact associated with manufacturing and disposal.

Energy Efficiency

The energy required to produce different bushing materials varies, impacting their overall efficiency and cost-effectiveness.

Plastic Bushings

Producing plastic bushings generally requires less energy compared to metal bushings, contributing to a lower carbon footprint. Additionally, their lightweight nature enhances energy efficiency in transportation applications.

Economic and Environmental Benefits

• Reduced Waste and Resource Usage: Recyclable materials and extended lifecycles minimize waste and reduce the need for raw materials.
• Lower Carbon Footprint: Lightweight and energy-efficient materials reduce fuel consumption and emissions.
• Environmental Safety: Avoiding harmful coatings and lubricants contributes to cleaner environments.
• Cost Savings: Longer lifecycles and reduced maintenance requirements lead to cost savings over time.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the different types of bushings?

Bushings, also known as bush or sleeve bearings, are cylindrical components that reduce friction between moving parts, support loads, and protect mating components. There are several types of bushings, each suited to specific applications and offering unique benefits:

1. Rubber Bushings: These provide flexibility and noise reduction, making them ideal for applications requiring vibration isolation.
2. Bronze Bushings: Known for durability and high load capacity, they are used in heavy-duty applications.
3. Polyurethane Bushings: These enhance performance and longevity, often used in automotive and industrial applications.
4. Delrin Bushings: Made from a type of acetal resin, they offer high strength and low friction, suitable for precision applications.
5. Nylon Bushings: Versatile and cost-effective, nylon bushings are used in a variety of applications due to their good wear resistance and low maintenance needs.

Each type of bushing material brings specific advantages, and the choice depends on factors such as load capacity, environmental conditions, and required durability.

What are the applications of bushings in automotive systems?

Bushings are crucial components in automotive systems, enhancing vehicle performance, comfort, and longevity. They are used in various parts of a vehicle, each serving a specific function. In suspension systems, bushings absorb shocks and vibrations, ensuring a smoother ride and improved handling. In steering linkages, they reduce friction, enabling precise and reliable control. Bushings in transmission components support rotating shafts and gears, enhancing efficiency and extending component life. Engine mounts use bushings to absorb engine vibrations and shocks, reducing noise and improving ride comfort. Lastly, bushings in control arms and stabilizer bars connect these components to the chassis, allowing controlled movement and reducing vibrations. Common types of bushings used in these applications include rubber, polyurethane, and metal-polymer bushings, each offering unique benefits such as vibration isolation, durability, and low maintenance.

How do rubber bushings compare to polyurethane bushings?

Rubber bushings and polyurethane bushings each offer unique benefits and limitations. Rubber bushings are designed to provide excellent vibration isolation and noise reduction, making them ideal for applications like automotive suspension systems and industrial machinery. They are known for their flexibility and ability to absorb shocks, contributing to a smoother ride and quieter operation. However, rubber bushings can degrade over time, reducing their performance and lifespan.

In contrast, polyurethane bushings are engineered for superior durability, resistance to wear, and chemical stability. They are suitable for high-performance applications where longevity and load-bearing capacity are crucial, such as in heavy-duty machinery and high-performance automotive suspensions. Polyurethane bushings can be customized in terms of hardness to fit various needs but may allow more noise, vibration, and harshness compared to rubber bushings, potentially affecting ride comfort.

How to maintain and replace bushings?

To maintain and replace bushings, follow these essential steps to ensure their longevity and efficient operation:

Maintenance:

1. Inspection: Regularly check bushings for signs of wear or damage, such as cracks or deformation.
2. Lubrication: Apply the appropriate lubricant to reduce friction and wear, unless dealing with self-lubricating bushings.
3. Cleaning: Keep bushings clean to prevent debris buildup, which can cause excessive wear.
4. Alignment: Ensure proper alignment during assembly to avoid undue stress on the bushings.

Replacement:

1. Identify Wear: Determine if the bushing has significant wear that necessitates replacement.
2. Select Replacement: Choose a new bushing that matches the original’s specifications and material.
3. Disassembly: Carefully remove the old bushing, avoiding damage to surrounding components.
4. Installation: Properly seat and align the new bushing, applying lubricant if necessary.
5. Testing: Test the system to ensure smooth operation and no leaks.

What are the signs of worn-out bushings?

Worn-out bushings can significantly impact a vehicle’s performance and safety. Key signs of worn-out bushings include:

1. Clunking and Rattling Noises: You may hear clunking or rattling sounds when driving over bumps, turning, or braking. These noises result from increased movement and possible metal-to-metal contact between components.
2. Vibrations and Shaking: Deteriorated bushings fail to absorb vibrations effectively, leading to noticeable shaking in the steering wheel, floor, or seats, especially on rough roads or during braking.
3. Poor Handling and Steering: Steering may feel loose or less responsive, affecting the vehicle’s handling and stability, and causing increased body roll during cornering.
4. Uneven Tire Wear: Worn bushings can lead to uneven pressure distribution on tires, resulting in irregular wear patterns, particularly noticeable with control arm bushing failures.
5. Visual Damage: Check bushings for visible signs of wear, such as cracks or tears.

Regular inspections and timely replacement of worn bushings are essential to maintain vehicle safety and performance.

How does the environmental impact of different bushing materials compare?

The environmental impact of different bushing materials varies based on their composition and usage. Plastic bushings, made from materials like nylon and Teflon, are generally more environmentally friendly because they are lightweight, reducing fuel consumption and CO2 emissions. They do not require lubrication, which prevents environmental contamination from lubricants. Bronze bushings, however, need lubrication, potentially leading to pollution, and their production process, including galvanizing, can be harmful if not managed sustainably. PTFE (Teflon) bushings are self-lubricating, minimizing the need for external lubricants and reducing environmental contamination. They also have high chemical resistance, making them durable in harsh environments. Nylon bushings are lightweight and do not require lubrication but can degrade under UV light, leading to potential waste. Overall, plastic bushings offer several environmental benefits, but the choice of material should consider the specific application requirements.
