Understanding Electropolishing: Benefits, Drawbacks, and Comparisons

Imagine a surface so smooth and polished that it resists corrosion, gleams with a mirror-like finish, and is easy to clean. This is the promise of electropolishing, a technique that has revolutionized metal finishing in industries ranging from medical devices to aerospace components. But what exactly makes electropolishing stand out from other methods, and are there any drawbacks to consider? In this article, we will delve into the intricate world of electropolishing, exploring its numerous benefits such as enhanced surface smoothness and improved corrosion resistance, while also addressing its limitations like high costs and safety concerns. By comparing electropolishing to other techniques like mechanical polishing and passivation, we aim to provide a comprehensive understanding that will help you determine the best surface finishing method for your specific needs. Ready to uncover the secrets behind this fascinating process? Let’s dive in.

What is Electropolishing?

Electropolishing is a precise electrochemical process used to finish metal surfaces. It selectively removes a controlled thin layer of material, enhancing the metal’s quality and properties such as improving corrosion resistance and surface smoothness.

The electropolishing process begins by immersing the metal part, which serves as the anode, and a cathode into a temperature-controlled bath containing a concentrated electrolyte solution, typically a mixture of sulfuric acid and phosphoric acid. A direct electrical current is then applied. As the current flows, metal ions on the surface of the workpiece oxidize and dissolve into the electrolyte.

Anodic leveling selectively removes microscopic peaks on the surface, smoothing out irregularities like microburrs and microcracks. The process is controlled by parameters such as electrolyte composition, bath temperature (usually around 170–180 °F), electrical current density, and treatment time. Material removal is extremely precise, typically controlled within ±0.0002 inches, ensuring the part’s dimensions remain intact while achieving a uniform surface enhancement.

Unlike mechanical polishing, which can leave scratches and uneven surfaces, electropolishing is more precise and can access hard-to-reach areas. Mechanical polishing often relies on abrasive materials, resulting in a less consistent finish compared to the smooth, consistent surface achieved through electropolishing’s anodic leveling.

While both electropolishing and passivation enhance corrosion resistance, they work differently. Passivation removes free iron from the metal surface through chemical means without significant surface smoothing. Electropolishing uses an electrical current to actively remove surface metal and defects, leading to a smoother, brighter finish in addition to improving corrosion resistance.

Electropolishing also differs from electrolytic polishing or chemical mechanical polishing (CMP). These latter processes may combine mechanical and electrochemical actions, while electropolishing is a purely electrochemical process optimized for precision surface finishing and passivation.

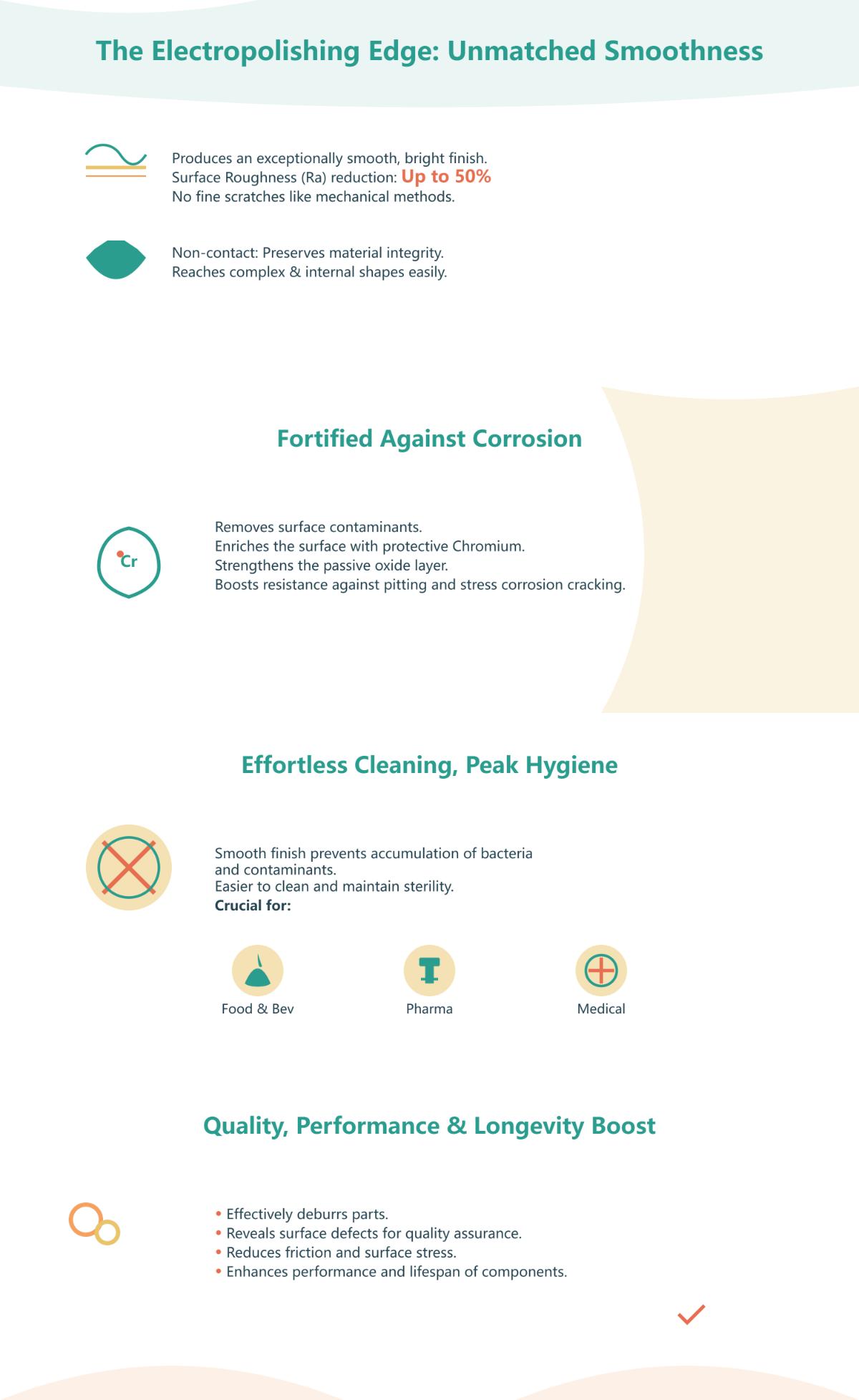

Advantages of Electropolishing

Superior Corrosion Resistance

Corrosion can cause equipment failure and high maintenance costs in many industries. Electropolishing addresses this issue by removing surface contaminants such as embedded iron particles and metallic inclusions on stainless steel. These contaminants disrupt the natural oxide layer, making the metal more susceptible to corrosion. By preferentially dissolving iron from the surface, electropolishing increases the chromium-to-iron ratio. This results in a thicker, more uniform, and stable oxide layer, which can be over 30 angstroms thick. This protective layer offers better resistance against pitting, crevice corrosion, stress corrosion cracking, and microbiologically influenced corrosion (MIC), allowing the metal to withstand harsh environments.

Improved Surface Finish and Microfinish

Microscopic irregularities on metal surfaces can lead to increased friction, poor seals, and uneven heat and light reflection. Electropolishing smooths out these peaks and valleys, reducing surface roughness by up to 50%. This enhanced microfinish not only reduces friction but also lowers the real surface area. Unlike mechanical polishing, which can leave directional lines, electropolishing provides a lustrous, uniform finish. This is beneficial for both aesthetic reasons and functional applications, where a smooth surface is crucial for proper operation.

Enhanced Cleanability and Sanitation

Maintaining high hygiene standards is crucial in the pharmaceutical, medical, food, and beverage industries. Contamination on equipment surfaces can lead to product spoilage and health risks. Electropolished surfaces are much easier to clean because of their microscopic smoothness. This smoothness reduces product adhesion and the buildup of contaminants. Moreover, electropolishing reduces the formation of bacterial biofilms and facilitates sterilization. USDA research has supported the effectiveness of electropolishing in reducing microbial contamination, ensuring safer and more hygienic equipment.

Deburring and Edge Refinement

Sharp edges, burrs, and microcracks on metal parts can pose safety risks and cause mechanical failure, especially in delicate medical instruments and precision components. In electropolishing, high points on the surface dissolve more quickly due to higher current densities. This natural process deburrs and levels the surface, eliminating these potential hazards. As a result, the safety of the parts is improved, the risk of injury is reduced, and the mechanical integrity of the components is enhanced.

Preservation and Enhancement of Mechanical Properties

Some surface finishing processes can reduce the fatigue strength of metals, which can lead to premature failure of parts. However, electropolishing preserves the true grain structure and bulk properties of the metal. It can also reduce friction and galling in moving parts, which extends the operational lifetime and reliability of equipment. In some cases, combining electropolishing with particle blasting can introduce compressive stress, promoting higher fatigue strength.

Improved Appearance and Aesthetic Quality

In applications like consumer products and medical tools, the visual appeal of metal parts is important. Abrasive polishing can leave fine directional lines, which may not be desirable. Electropolishing produces a bright, smooth, and uniform surface finish without these lines. This not only enhances the visual appeal of the parts but also makes it easier to verify cleanliness in sensitive environments.

Versatility and Compatibility

Using different metals in various industries requires a surface finishing process that can be applied to a wide range of alloys. Electropolishing is effective not only on stainless steel but also on specialty metals like titanium and Nitinol, which are commonly used in medical implants. This versatility makes electropolishing suitable for various industries that require biocompatible and high-performance metal parts.

Disadvantages and Limitations of Electropolishing

Surface Finish Limitations

While electropolishing is excellent for improving surface smoothness, it does have some limitations. It typically reduces surface roughness by approximately 50%, which means parts with high initial roughness may not achieve the desired smoothness. In such cases, additional mechanical finishing may be required to reach optimal surface conditions. Moreover, materials with high silicon, sulfur, or carbon content, such as stainless steel Types 303 and 416, can develop a "frosty" appearance or grainy texture due to non-metallic inclusions. Electropolishing may also expose pre-existing defects like scratches, seams, pits, or orange peel textures, magnifying rather than concealing them.

Material and Geometry Constraints

Electropolishing is not universally compatible with all metal alloys and geometries. Alloys with multiple phases and porous cast metals often result in uneven finishes because of inconsistent material removal. Additionally, the process has limitations with large or irregularly shaped components, which may not fit into standard electropolishing baths, restricting scalability. Dimensional changes, though minimal (typically 0.00025 inches per surface), require precise control, particularly for high-tolerance parts.

Cost and Operational Challenges

The high cost of electropolishing is a significant disadvantage. It requires specialized equipment such as electrolytic baths and DC rectifiers, along with hazardous chemical management, leading to increased capital and maintenance expenses. The processing time is generally longer compared to mechanical polishing, especially for parts requiring stringent surface specifications. To avoid high setup costs, many facilities outsource electropolishing, which can lead to delays and risks from shipping and handling.

Environmental and Safety Risks

Electropolishing involves hazardous chemicals, typically sulfuric and phosphoric acid mixtures, which necessitate strict handling protocols and generate toxic rinse waste. Hydrogen and oxygen gas evolution during the process poses explosion risks without proper ventilation. Managing residues effectively is crucial to prevent contamination, particularly in high-cleanliness applications like medical or food-grade products.

Performance Trade-offs

Electropolishing can result in ultra-smooth surfaces that may compromise coating adhesion or friction-dependent functionality. Poor pretreatment or racking can cause problems like pitting, staining, or uneven material removal. Complex geometries often suffer from poor current distribution, risking over-polishing of edges while under-treating recessed areas, which limits the process’s effectiveness on intricate parts.

Comparison with Mechanical Polishing

Key Considerations for Application

When selecting electropolishing for specific applications, consider the material composition, particularly homogeneous alloys like austenitic stainless steels, which yield optimal results. Pre-treatment steps such as mechanical deburring or pre-polishing can minimize defect amplification. Quality control measures, including photomicroscopy, are recommended to verify surface homogeneity and document outcomes, ensuring consistent and reliable results.

Applications and Best Use Cases for Electropolishing

Core Applications by Industry

Medical and Dental

Surgical instruments such as scalpels, needles, and implants in the medical and dental fields benefit significantly from electropolishing. Micro-imperfections on these instruments can lead to biocompatibility issues and increased bacterial adhesion. Electropolishing removes these flaws, ensuring that the instruments are safe for use inside the human body. For devices such as endoscopes, surface smoothness is critical for hygiene compliance. The smooth surface achieved through electropolishing prevents the accumulation of contaminants, making sterilization more effective.

Pharmaceutical and Biotechnology

Process equipment in the pharmaceutical and biotech industries, such as tanks, reactors, and piping, must meet strict standards to prevent contaminants from accumulating in crevices. Electropolishing eliminates these crevices, ensuring compliance with FDA and GMP standards. In ultra-high-purity systems that handle ultrapure gases or liquids, surface roughness can cause particle shedding. Electropolishing reduces this roughness, maintaining the purity of the substances being processed.

Aerospace and Defense

Aircraft components like turbine blades, landing gear, and hydraulic systems face harsh operating conditions. Burrs on these components can negatively affect aerodynamics and corrosion resistance. Electropolishing deburrs these parts, improving their performance. High-stress parts in aerospace applications are prone to cracking. Electropolishing creates smoother surfaces that help delay cracks, extending the service life of these components.

Food and Beverage

Sanitary surfaces are crucial in the food and beverage industry to prevent microbial growth and ensure product safety. Valves, pipes, and mixing tanks are electropolished to create surfaces that resist bacteria and facilitate clean-in-place (CIP) processes. This not only ensures the safety of the products but also meets USDA and EHEDG standards for hygienic design.

Semiconductor and Electronics

Semiconductor manufacturing requires extremely clean environments. Wafer handling components need sub-micron surface finishes to prevent particulate contamination in cleanrooms. Electropolishing achieves these precise finishes. Additionally, oxide layers on connectors can impede electrical conductivity. Electropolishing removes these layers, enhancing signal integrity.

Automotive

In the automotive industry, fuel injection systems need to have good flow dynamics and corrosion resistance. Electropolished injectors and sensors offer these benefits. Gears and springs in vehicles are subject to cyclic loads, which can cause wear. Electropolishing reduces this wear, improving the durability of these components.

Consumer Goods

In consumer goods, aesthetics and ease of cleaning are important. Electropolishing gives stainless steel cookware, cutlery, and light fixtures a mirror finish, making them more attractive and easier to clean. Outdoor metal furniture also benefits from electropolishing, as it provides a corrosion-resistant finish.

Best Use Cases

Deburring Precision Parts

Machined components, such as medical screws and aerospace fasteners, often have microscopic burrs. Electropolishing can remove these burrs without altering the part’s tolerances, ensuring the precision of these critical parts.

Surface Passivation

Stainless steel’s corrosion resistance can be enhanced through electropolishing. It improves the chromium oxide layer beyond what traditional passivation can achieve, making the metal more resistant to corrosion in various environments.

Pre-Coating Preparation

Before applying PVD coatings, electropolishing is an effective pre-treatment. It eliminates embedded contaminants, ensuring superior adhesion of the coating to the metal surface.

Restoration

Corroded or contaminated surgical tools and industrial equipment can be rejuvenated through electropolishing. This process restores the functionality and appearance of these items, saving costs on replacement.

Comparison: Electropolishing vs Mechanical Polishing

Process Differences

Electropolishing and mechanical polishing are both used to enhance the surface finish of metal components, but they operate on fundamentally different principles.

Electropolishing

Electropolishing is an electrochemical process where metal parts are immersed in a chemical bath and subjected to an electric current. This process selectively removes surface material, smoothing microscopic peaks and valleys, to achieve a highly polished finish. The chemical bath typically consists of a mixture of phosphoric and sulfuric acids, and the process is precisely controlled by adjusting parameters such as current density and bath temperature.

Mechanical Polishing

Mechanical polishing involves using abrasive materials such as polishing wheels, pads, or compounds to physically abrade the metal surface. This method can be manual or automated and is often used to prepare surfaces for further finishing processes. Mechanical polishing relies on the physical removal of material to smooth the surface, which can leave behind micro-scratches and an uneven finish.

Comparative Advantages and Disadvantages

Each method has its own set of advantages and disadvantages, making them suitable for different applications.

Electropolishing Advantages

• Improved Corrosion Resistance: Electropolishing enhances the chromium-to-iron ratio on stainless steel surfaces, forming a thicker and more uniform oxide layer that significantly improves corrosion resistance.
• Superior Surface Finish: It produces a smooth, bright, and mirror-like surface free of micro-cracks and crevices, reducing sites for bacteria and contaminants, which is especially beneficial for medical and food processing applications.
• Enhanced Cleanability: The ultra-smooth surface makes it easier to clean and sterilize, which is crucial in environments requiring high levels of hygiene.
• Deburring: Electropolishing effectively removes burrs and sharp edges uniformly at a microscopic level, improving the safety and performance of metal components.
• Reduced Friction and Improved Fatigue Life: By smoothing the surface and reducing surface stresses, electropolishing can extend the fatigue life of parts subjected to cyclic loading and reduce frictional wear.

Electropolishing Disadvantages

• Higher Cost: The process requires specialized equipment, controlled chemical baths, and electricity, making it more expensive than mechanical polishing.
• Chemical and Environmental Concerns: It uses hazardous chemicals that need careful handling and disposal, posing safety and environmental risks.
• Time-Consuming: Electropolishing can be slower compared to mechanical polishing, especially for parts with stringent surface finish requirements.
• Size Limitations: The size of the parts that can be electropolished is limited by the size of the chemical bath.

Mechanical Polishing Advantages

• Cost-Effectiveness: Generally less expensive than electropolishing, as it requires simpler equipment and does not involve hazardous chemicals.
• Versatility: Can be applied to a wide range of materials, including metals and plastics, and is effective on welded parts and large surfaces.
• Speed: Mechanical polishing can be faster than electropolishing, making it suitable for applications where time is a critical factor.

Mechanical Polishing Disadvantages

• Surface Damage and Contamination: The abrasive process can embed contaminants into the surface or cause changes that promote corrosion.
• Less Uniform Finish: Mechanical polishing does not remove material uniformly, potentially leaving behind microscopic irregularities, micro-cracks, or burrs.
• Limited Access to Complex Geometries: Mechanical polishing tools cannot easily reach interior surfaces, small holes, or undercuts, limiting its effectiveness on intricate parts.

Surface Finish Comparison

Electropolishing achieves a smoother, more uniform surface finish than mechanical polishing. The electrochemical process removes material at a microscopic level, eliminating micro-cracks and surface contaminants. This results in a bright, mirror-like finish that is not achievable through mechanical means alone. In contrast, mechanical polishing often leaves micro-scratches and a less consistent surface profile.

Best Use Cases for Each Method

Electropolishing

Electropolishing is best suited for applications requiring superior corrosion resistance, high cleanliness, and a high-quality surface finish. It is ideal for medical devices, pharmaceutical equipment, food processing equipment, and aerospace components where these characteristics are critical.

Mechanical Polishing

Mechanical polishing is suitable for applications where cost, speed, and versatility are primary considerations. It is effective for preparing surfaces for subsequent finishing processes, polishing large or welded parts, and working with a variety of materials, including metals and plastics. It is commonly used in automotive, construction, and general manufacturing industries.

By understanding the distinct advantages and limitations of electropolishing and mechanical polishing, professionals can select the appropriate process based on the specific requirements of their applications.

Comparison: Electropolishing vs Passivation

Overview of Electropolishing and Passivation

Electropolishing and passivation are two essential surface treatment processes that enhance the properties of metals, especially stainless steel. While both aim to improve corrosion resistance and cleanliness, they achieve these goals through different mechanisms.

Process Differences

Electropolishing

Electropolishing is an electrochemical process that involves immersing the metal part in an electrolytic bath and applying a direct electrical current. The metal part serves as the anode, and through anodic dissolution, a thin layer of metal is selectively removed from the surface. This process smooths and polishes the metal, resulting in a bright, ultra – smooth finish. Electropolishing is effective at removing micro – burrs, oxide scales, heat tint, and micro – cracks, thereby enhancing the surface’s microfinish and cleanability.

Passivation

Passivation is a chemical treatment that typically uses nitric or citric acid baths to remove free iron and contaminants from the surface of stainless steel. This forms a thin, transparent oxide film that improves corrosion resistance without altering the metal’s appearance.

Surface Finish and Microfinish

Electropolishing

Electropolishing creates a bright, polished surface by removing material at a microscopic level, significantly enhancing surface smoothness and reducing roughness by up to 40%. The process eliminates surface defects and creates a featureless, ultra – smooth surface that enhances cleanability and reduces biofilm formation. Electropolishing is particularly effective in treating weld zones and heat – affected areas, improving both the appearance and performance of the metal.

Passivation

Passivation does not significantly change the surface roughness or brightness of the metal. It primarily removes contaminants and forms an oxide layer that increases corrosion resistance. The process is less effective in treating weld heat tint and does not remove physical defects like micro – burrs or cracks. Consequently, passivation is more suitable for applications where surface finish is not critical, and the primary concern is corrosion resistance.

Corrosion Resistance

Electropolishing

Electropolishing significantly enhances corrosion resistance by improving surface chemistry and reducing surface defects. By preferentially dissolving iron from the surface, electropolishing increases the Cr/Fe ratio, resulting in a thicker, more uniform, and stable oxide layer. This protective layer offers superior resistance against various forms of corrosion, including pitting, crevice corrosion, stress corrosion cracking, and microbiologically influenced corrosion (MIC). Electropolishing is approximately 30 times more effective at preventing corrosion and pathogen contamination on stainless steel surfaces compared to passivation alone.

Passivation

Passivation also enhances corrosion resistance by forming an oxide film that passivates the metal surface. The process increases the Cr/Fe ratio and prevents galvanic corrosion caused by iron particles reacting with the stainless steel surface. However, the corrosion resistance provided by passivation is less pronounced compared to electropolishing. Passivation is often used as a follow – up treatment after electropolishing to optimize corrosion resistance further.

Applications and Best Use Cases

Electropolishing

Electropolishing is ideal for applications requiring both aesthetic quality and high performance in terms of corrosion and wear resistance. It is commonly used in industries such as medical devices, aerospace, pharmaceutical, automotive, food processing, electronics, and hydraulics. The process is particularly beneficial for parts that need a bright, polished finish, enhanced cleanability, and improved fatigue life.

Passivation

Passivation is more cost – effective and suitable for applications where surface finish is not critical, and corrosion resistance is the primary concern. It is widely used in food processing, pharmaceuticals, and general stainless steel maintenance. Passivation is effective for treating parts that do not require significant surface smoothing or polishing but need to prevent corrosion and maintain durability.

Combined Use

In certain industries, such as medical device manufacturing and aerospace, both electropolishing and passivation are used sequentially. Electropolishing first removes surface defects and contaminants while smoothing the surface, followed by passivation to ensure any free iron exposed during electropolishing is chemically removed and the oxide layer is optimized for maximum corrosion resistance. This combined approach offers the best performance in terms of corrosion resistance, cleanliness, and surface finish.

Surface Roughness and Electropolishing

Surface Roughness Metrics

Surface roughness is a crucial parameter in determining the quality of a metal’s surface finish. It is commonly measured using two main metrics: Ra (Roughness Average) and RMS (Root Mean Square).

Ra is the average of all the deviations from the mean line of the surface profile. RMS is the square root of the average of the squared deviations from the mean line, which is more sensitive to peaks and flaws.

Both metrics are typically expressed in microinches (µin) or micrometers (µm).

Typical Improvements by Electropolishing

Electropolishing can significantly improve surface roughness by selectively removing material from the peaks of the surface microstructure.

Electropolishing can reduce surface roughness by approximately 10% to 50%, depending on the initial surface condition and the specific process parameters, with typical improvements ranging between 10% and 30% reduction in Ra.

Electropolishing usually removes less than 0.001 inch of material, focusing on sharp edges where more material is removed due to higher current density.

Process Limitations and Surface Condition Effects

The effectiveness of electropolishing decreases with finer initial surface roughness, and it may expose subsurface voids or inclusions that were masked by mechanical finishing. Surface imperfections such as non-metallic inclusions, heat scale, large grain size, and directional roll marks can limit the achievable smoothness.

Benefits of Electropolishing Related to Surface Roughness

• Smoothing and Deburring: Electropolishing preferentially removes surface peaks and sharp edges, effectively deburring and smoothing complex and curved surfaces better than flat ones.
• Enhanced Cleanliness: The process improves microcleanliness by removing mechanical smears, abrasives, oxides, and debris that are often invisible after mechanical polishing.
• Improved Corrosion Resistance: Electropolishing enriches the surface in chromium and nickel by removing free iron from the outer layer, resulting in a more passive, corrosion-resistant surface.
• Fatigue Resistance: By removing the mechanically deformed and stressed surface layer, electropolishing can enhance fatigue life.
• Reduced Friction: The process reduces the coefficient of friction by smoothing asperities, potentially decreasing friction to about a quarter of that of a mechanically finished surface.
• Surface Appearance: Electropolishing can produce mirror-like reflective surfaces, enhancing aesthetic appeal and maintaining appearance indefinitely.

Drawbacks and Considerations

Excessive material removal can lead to rough, pitted surfaces, making process control critical, especially for parts with tight dimensional tolerances. Surfaces with heavy blasting or coarse finishes may not be fully smoothed by electropolishing, as deep surface disruptions remain even after treatment. Electropolishing can reveal inclusions, carbides, or voids that degrade surface quality, requiring careful material selection and preparation. Achieving a high-quality electropolished finish often necessitates prior mechanical polishing to remove macroscopic texture, scratches, or rolling marks because electropolishing primarily improves microscopic roughness.

Comparison with Mechanical Finishing

Safety and Environmental Considerations

Chemical Hazards

Electropolishing uses highly corrosive and hazardous chemicals, typically strong acids like phosphoric acid and sulfuric acid. These chemicals pose significant risks if mishandled, including skin and eye irritation, respiratory tract irritation from mists or vapors, and potential chemical burns. To mitigate these risks, workers should wear appropriate personal protective equipment (PPE) such as chemical – resistant gloves, safety goggles or face shields, respirators, and protective clothing. Additionally, ensure adequate ventilation and exhaust systems to prevent the inhalation of harmful fumes and control vapor buildup. Chemicals should be stored in cool, dry, well – ventilated areas away from heat, ignition sources, and incompatible materials. Containers must be tightly sealed when not in use.

Explosion and Fire Risks

The electropolishing process can generate hydrogen and oxygen gases, which can create explosive atmospheres if not managed properly. Additionally, some electropolishing solutions contain flammable solvents, further increasing fire risks. To ensure safety, use explosion – proof equipment and strictly control ignition sources within the electropolishing area. Implement fire suppression systems and establish emergency procedures tailored to chemical fires. Immediate containment and cleanup of spills are crucial to minimize hazardous exposure and environmental release.

Handling and Spill Management

When handling and cleaning up spills, use non – combustible materials like sand or earth for containment. Thoroughly wash the area with water afterward, and ensure personnel wear full protective gear to prevent exposure.

Wastewater and Disposal

The rinse water and spent electrolyte solutions from electropolishing are classified as hazardous waste due to their chemical content and the presence of heavy metals. Proper handling, treatment, and disposal in compliance with environmental regulations are critical. Direct discharge into drains, watercourses, or soil is strictly prohibited to prevent contamination of natural water bodies and ecosystems. Facilities must implement methods to contain, neutralize, and dispose of waste safely. Monitoring and reporting any accidental environmental releases are mandatory under regulatory guidelines.

Chemical Composition and Ecotoxicity

While electropolishing solutions are generally water – soluble, they can still harm aquatic and terrestrial life if mishandled. Large or frequent spills can cause significant environmental damage. The mobility of these chemicals in soil increases the risk of environmental spread. Though individual components may not be highly bioaccumulative or environmentally persistent, their combined effect can be harmful.

Benefits and Drawbacks

Electropolishing offers several benefits, including enhanced surface cleanliness and smoothness, improved corrosion resistance, and ease of cleaning and sterilization. However, these advantages come with safety and environmental drawbacks that require stringent controls and careful management. The process also necessitates specialized equipment and trained personnel, adding to the operational complexity and cost.

Maintenance and Post-Processing After Electropolishing

Post-Processing Steps

Multistage Rinsing

Following the electropolishing process, thorough rinsing is essential to remove any residual electrolytes and contaminants from the metal surface. This typically involves multiple rinsing stages, including acid and water rinses. Using acid rinses like citric or nitric acid combined with clean water helps remove leftover chemicals. Up to ten rinsing stations may be used to ensure complete removal of electrolytes.

Ultrasonic cleaning can be an optional step where parts are dipped in ultrasonic tanks containing nitric or citric acid. This helps dissolve stubborn by-products like metal phosphates or sulfates, preventing the formation of milky residues on the surface.

Neutralization and Drying

Neutralizing leftover acids is essential to avoid reactions that might harm the metal surface. Mild alkaline dips, such as soda ash solutions, are used to neutralize these acids, particularly for parts with complex geometries where acid residues may be more challenging to remove.

Drying methods include hot rinses, centrifugal dryers, or heated air chambers. These methods are employed to prevent water spotting and staining, ensuring a spotless and smooth finish on the electropolished parts.

Quality Assurance

Quality control is a critical post-processing step to validate the effectiveness of electropolishing. Copper sulfate testing is commonly used to confirm the removal of free iron, ensuring the metal surface is properly passivated. Additionally, visual and instrumental inspections are conducted to check for brightness, corrosion resistance, and surface roughness. Electropolishing can reduce surface roughness by up to 50%, a benefit confirmed during quality checks.

Maintenance Considerations

Bath Chemistry

Maintaining the correct bath chemistry is essential for consistent electropolishing results. Specific gravity monitoring ensures the electrolyte remains within the optimal concentration range. When the level of dissolved metals becomes excessive, bath replacement is necessary to maintain effectiveness.

Temperature control is another vital aspect, as it influences the polishing rate and helps minimize defects such as pitting. Consistent temperature regulation ensures uniform material removal and high-quality surface finishes.

Waste Management

Proper waste management practices are crucial due to the hazardous nature of the chemicals used in electropolishing. Heavy metal precipitation involves neutralizing spent electrolytes with sodium hydroxide, which generates a sludge that can be filtered and disposed of safely. Drag-out recovery systems, such as counterflow rinses, help reclaim electrolyte, reducing waste and treatment costs.

Benefits of Electropolishing

Electropolishing offers several significant advantages, including surface enhancement by removing micro-burrs and smoothing peaks and valleys. This process creates a passive oxide layer that enhances corrosion resistance. For medical applications, electropolishing makes metal parts easier to sterilize by removing contaminants. Additionally, electropolishing is more efficient than labor-intensive mechanical polishing, enabling bulk processing of parts.

Drawbacks and Limitations

Electropolishing is sensitive to surface defects and cannot hide deep scratches, porosity, or non-metallic inclusions. Additionally, it may polish unevenly on multi-phase alloys or cast metals due to varying dissolution rates. Furthermore, electropolishing requires strict control of parameters such as voltage, agitation, and racking to avoid defects like gas streaks or leopard spots.

Comparison with Mechanical Polishing

Industry Standards

Electropolishing for stainless steel is governed by standards such as ASTM B912, which specifies the requirements for passivation through electropolishing. Additionally, ASTM A967 outlines chemical passivation methods that are often used in conjunction with electropolishing to enhance corrosion resistance further.

Key Process Variables

Key variables in the electropolishing process include cycle time, which can range from 10 seconds to 20 minutes depending on the material and desired finish. Agitation is necessary to prevent gas accumulation and ensure uniform current density. The configuration of the cathode also affects current distribution; improper setups can lead to uneven polishing.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the main advantages of electropolishing compared to other surface finishing methods?

Electropolishing offers several significant advantages compared to other surface finishing methods. One of the primary benefits is the superior surface smoothness and finish quality it provides. Electropolishing can reduce surface roughness (Ra) by up to 50%, resulting in a microscopically smooth and bright finish without the fine directional lines or scratches typical of mechanical polishing. This process is non-contact, preserving the material’s integrity and allowing it to polish complex shapes and internal surfaces that mechanical methods cannot easily reach.

Additionally, electropolishing enhances corrosion resistance by removing embedded contaminants and enriching the surface layer with chromium, which improves the passive oxide film’s quality. This results in better resistance to various types of corrosion, including pitting and stress corrosion cracking.

Electropolished surfaces are also easier to clean and maintain due to their smooth finish, which reduces areas where bacteria and contaminants can accumulate. This makes it particularly beneficial for applications in the food, beverage, pharmaceutical, and medical industries.

Furthermore, electropolishing deburrs parts and exposes surface defects, ensuring higher quality and safety of finished components. It also reduces friction and surface stress, improving the performance and longevity of moving parts.

What are the disadvantages or limitations of electropolishing?

Electropolishing, while beneficial for enhancing corrosion resistance, surface smoothness, and cleanliness, has several disadvantages and limitations. These include:

1. Cost and Specialized Equipment: The process is generally more expensive and requires specialized electrolytic equipment and skilled operation, making it less suitable for low-budget or high-volume projects.

2. Safety Concerns: Electropolishing involves the use of hazardous chemicals, which pose risks to operator safety and environmental health. Proper handling, protective equipment, and waste management protocols are mandatory, increasing operational complexity and cost.

3. Surface Defects Visibility: Electropolishing cannot completely conceal surface defects such as deep scratches, pits, or non-metallic inclusions. These imperfections may become more apparent after the process.

4. Limited Surface Roughness Improvement: The process typically improves surface smoothness by about 50%, which may not be sufficient for parts with high initial roughness. Additional mechanical finishing might be required.

5. Dimensional Changes: Material removal during electropolishing can cause minor but measurable dimensional changes, which can affect tight tolerance parts.

6. Size and Shape Limitations: Electropolishing requires parts to be immersed in a chemical bath, limiting the size and geometry of parts that can be treated.

7. Surface Appearance Alteration: The process can alter the surface texture and appearance, which may not be desirable for certain applications requiring specific looks or tactile feels.

8. Residual Chemical Contamination: The process can leave chemical residues that require thorough post-treatment cleaning to prevent corrosion, staining, or contamination, particularly in sensitive industries like medical devices or food processing.

Selecting electropolishing should involve a careful consideration of these limitations to ensure its advantages outweigh the drawbacks for the specific application.

How does electropolishing compare to mechanical polishing?

Electropolishing and mechanical polishing are distinct processes used for finishing metal surfaces, each with its unique advantages and drawbacks. Electropolishing is an electrochemical process that removes a uniform layer of material from metal parts, resulting in a smooth, ultraclean surface. It enhances corrosion resistance by creating a chromium-rich surface layer and can effectively polish hard-to-reach areas, such as undercuts and drill holes. Additionally, electropolishing removes burrs and jagged edges, providing a defect-free finish, which is ideal for applications requiring high purity, like medical devices and food processing equipment. However, it requires specialized equipment and is generally more expensive for small quantities.

On the other hand, mechanical polishing involves manually smoothing metal surfaces using abrasives like belts and wheels. It is more cost-effective for small batches or prototypes and is versatile, suitable for various materials, including metals and polymers. Mechanical polishing can achieve a mirror finish but may leave embedded abrasives and surface distortions that can lead to corrosion and reduced surface strength. Unlike electropolishing, it is less effective at polishing micro-areas and does not inherently enhance corrosion resistance.

Choosing between electropolishing and mechanical polishing depends on the specific requirements, including budget, material type, and desired surface finish quality. Electropolishing is preferred for high-purity applications and superior surface quality, while mechanical polishing is suitable for cost-sensitive projects and diverse material applications.

How much surface roughness improvement can electropolishing achieve?

Electropolishing can significantly improve the surface roughness of metal parts, particularly stainless steel. Typically, it reduces the roughness average (Ra) by 10 to 30%, although in ideal conditions, improvements of up to 50% are possible. The actual improvement depends on several factors, including the initial surface condition and the specific electropolishing parameters used. Generally, smoother starting surfaces yield less percentage improvement but achieve highly refined finishes. Electropolishing achieves these improvements by removing a controlled amount of material, usually between 0.0002" to 0.0003" per surface, which helps enhance the part’s corrosion resistance, aesthetic appeal, and cleanability. However, it is less effective for removing large scratches or significant macroscopic imperfections, which may require mechanical polishing prior to electropolishing.

What safety and environmental concerns are associated with electropolishing?

Electropolishing involves using acidic electrolytes, typically sulfuric acid and phosphoric acid, to remove material from a metal surface through an electrochemical process. This technique offers benefits such as improved corrosion resistance and enhanced surface smoothness. However, several safety and environmental concerns are associated with electropolishing.

Safety concerns primarily revolve around the hazardous chemicals used. These acids can cause severe burns and eye damage upon contact, and inhaling their vapors can irritate or damage the respiratory system. Proper personal protective equipment (PPE), such as gloves, goggles, face shields, and acid-resistant clothing, is essential. Additionally, adequate ventilation and chemical fume hoods are necessary to prevent inhalation hazards. The process also generates hydrogen gas, which poses an explosion risk if not properly ventilated.

Environmental concerns include the disposal of hazardous waste generated by the process, such as spent acidic solutions and metal sludge. These wastes must be handled and disposed of according to local, state, and federal regulations to prevent environmental contamination. The emission of corrosive vapors and toxic gases must be controlled to protect air quality.

When is electropolishing appropriate for specific metal parts?

Electropolishing is appropriate for specific metal parts when enhanced surface properties such as improved corrosion resistance, cleanliness, and deburring are required. This electrochemical process is particularly beneficial for metals that need micron-level surface refinement and uniformity. It is most effective on metals with fine grain boundaries and minimal non-metallic inclusions, such as stainless steel (300- and 400-series), aluminum, brass, copper alloys, nickel alloys, titanium, cobalt chrome, tool steels, and high-temperature alloys like Hastelloy and Inconel.

Electropolishing is ideal for applications where microscopic surface smoothing is necessary, such as medical devices, food processing equipment, and aerospace components. It removes sharp edges and burrs, significantly improves surface roughness, and produces ultra-clean finishes suitable for sterilization. Additionally, the process enhances the natural passivation layer, increasing corrosion resistance and reducing sites for stress corrosion cracking and pitting.

In summary, electropolishing is appropriate when the goal is to achieve a high-quality, corrosion-resistant, and ultra-clean surface finish on compatible metal parts, particularly in industries requiring precision and hygiene standards.
