Understanding Gas Metal Arc Welding (GMAW): Benefits and Comparisons

Imagine being able to create strong, high-quality welds with minimal effort and high efficiency. Gas Metal Arc Welding (GMAW), commonly known as MIG welding, offers exactly that and much more. For those already familiar with basic welding techniques, delving into the world of GMAW can open up a realm of possibilities. This article will guide you through the intricacies of GMAW, shedding light on its key components, historical evolution, and the significant role it plays in modern welding.

We’ll explore the numerous advantages of GMAW, such as its ability to produce clean welds with low spatter, alongside some potential drawbacks like its sensitivity to wind and higher setup costs. Moreover, you’ll discover how GMAW stacks up against other welding processes, including Flux-Cored Arc Welding (FCAW) and Shielded Metal Arc Welding (SMAW), providing you with a comprehensive understanding of its strengths and limitations.

Ready to enhance your welding knowledge and skills? Let’s dive into the world of GMAW and see how it can transform your welding projects.

Introduction to GMAW

Definition of Gas Metal Arc Welding (GMAW)

Gas Metal Arc Welding (GMAW), also known as MIG (Metal Inert Gas) or MAG (Metal Active Gas) welding, uses a continuously fed wire electrode and shielding gas to join metals. This process involves creating an electric arc between the wire electrode and the workpiece, which melts the metals and forms a weld pool.

Detailed Overview of the GMAW Process

GMAW is characterized by its semi-automatic or automatic operation, making it suitable for many industrial applications. The primary components involved in the GMAW process include:

• Consumable Wire Electrode: The electrode is continuously fed through the welding gun, which melts and deposits into the weld pool.
• Shielding Gas: The shielding gas protects the weld area from atmospheric contamination, ensuring the quality and integrity of the weld.
• Power Supply: Supplies electrical energy to create and maintain the arc, with adjustable parameters like voltage and current.

The welding process starts when the operator initiates the arc by pressing the trigger on the welding gun. The wire melts and fuses with the base material, creating a strong weld.

Key Components Involved in GMAW

GMAW relies on several key components to function effectively:

• Welding Gun: Houses the consumable wire electrode and delivers the shielding gas. It is ergonomically designed for ease of use and precision.
• Wire Feeder: Automatically feeds the wire electrode at a controlled rate, ensuring consistent weld quality.
• Shielding Gas Supply: Provides the necessary gas (inert or active) to protect the weld from atmospheric contamination. Common gases include argon, helium, and carbon dioxide.
• Power Source: Supplies electrical energy to generate the arc, with adjustable parameters like voltage and current.

Historical Development and Evolution of GMAW

GMAW was developed in the 1940s primarily for welding aluminum and non-ferrous materials. Over time, the process evolved to include steel welding, thanks to its efficiency and adaptability. Advancements in shielding gases and welding technology have made GMAW a versatile and popular welding method.

Importance and Impact of GMAW in Modern Welding

GMAW has become a cornerstone of modern welding due to several key benefits:

• Versatility: Suitable for a wide range of materials and thicknesses, including aluminum, stainless steel, and carbon steel.
• Efficiency: Offers faster travel speeds and higher deposition rates compared to traditional welding methods.
• Automation Compatibility: Easily integrated into robotic welding systems, enhancing productivity in high-volume production environments.
• Clean Process: Produces minimal slag, reducing post-weld cleanup and improving overall efficiency.
• Cost-Effectiveness: Optimized wire consumption and reduced labor costs contribute to lower operational expenses.

The widespread adoption of GMAW in industries such as automotive, aerospace, and manufacturing underscores its importance in achieving high-quality welds with improved efficiency and reduced costs.

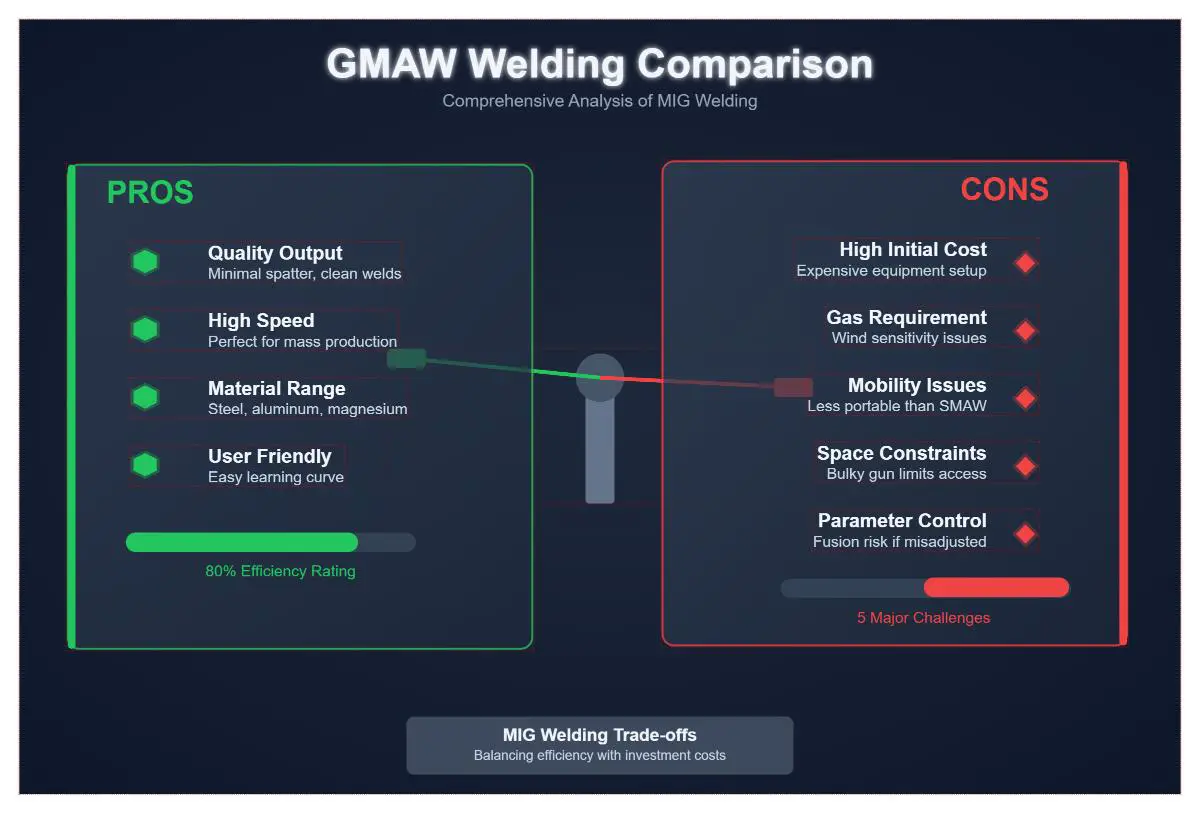

Advantages and Disadvantages of GMAW

Advantages of GMAW

High-Quality Welds

GMAW produces high-quality welds with a smooth appearance and minimal spatter. The process ensures a clean and smooth finish, which is particularly beneficial in industries where the aesthetic quality of the weld is important, such as automotive and aerospace manufacturing.

Efficiency and Speed

A key benefit of GMAW is its efficiency and speed, thanks to the continuous wire feed that allows for faster welding compared to other methods. This increased speed is crucial in high-volume production environments where time is a critical factor.

Ease of Use

GMAW is easy to learn and use, making it accessible for both beginners and experienced welders. The semi-automatic nature of the process reduces the complexity involved in manual welding, allowing for more consistent results and less operator fatigue.

Versatility

This welding method is versatile and can be used to weld a wide range of metals, including steel, aluminum, and magnesium. Its adaptability makes it suitable for various applications, from heavy industrial fabrication to delicate repair work.

Less Cleanup Required

GMAW produces less mess and requires minimal post-weld cleanup compared to other welding techniques. The minimal spatter and lack of slag mean that the finished welds need less effort to clean, saving time and resources.

Disadvantages of GMAW

High Initial Costs

The setup for GMAW can be expensive, particularly for beginners or small-scale operations. The cost of purchasing the welding equipment, including the power source, wire feeder, and shielding gas supply, can be a significant investment.

Sensitivity to Air

GMAW requires a clean environment to prevent contamination of the weld pool. The shielding gas must effectively protect the weld from atmospheric gases. Welding in windy conditions or environments with drafts can compromise the quality of the weld and lead to defects.

Limited Portability

GMAW equipment, like the wire feeder and gas cylinders, can be bulky and hard to move. This limitation affects the portability of the welding setup, making it less suitable for fieldwork or situations where mobility is essential.

Difficulty in Tight Spaces

The MIG gun used in GMAW can be challenging to maneuver in tight or confined spaces. Welders may need additional tools or techniques to effectively weld in areas with limited access, which can complicate the process.

Potential Lack of Fusion

If welding parameters and techniques are not properly controlled, there is an increased risk of lack of fusion defects. Proper training and attention to detail are required to ensure that the weld penetrates the base material adequately.

Applications and Uses of GMAW

Key Applications of GMAW

Gas Metal Arc Welding (GMAW) is widely adopted across various industries due to its versatility, efficiency, and precision. Below are some of the primary applications and uses of GMAW:

Automotive Manufacturing

The automotive industry relies heavily on GMAW for welding tasks such as vehicle frames, exhaust systems, and body panels. The high-speed welding capability and compatibility with thin materials make it ideal for assembly lines, ensuring rapid production and high-quality welds. The process’s adaptability allows it to handle the diverse materials used in modern vehicles, including aluminum and high-strength steel.

Robotic Automation

GMAW’s precise arc control and repeatability make it particularly well-suited for integration into automated systems, establishing it as a staple in mass production environments like automotive and electronics manufacturing, where consistency and efficiency are critical. This automation compatibility helps in achieving uniform welds and reducing production time.

Construction and Infrastructure

The construction industry employs GMAW for structural steelwork, pipelines, and track maintenance. Its semi-automatic operation is beneficial in environments where manual welding is challenging or inefficient. The process’s ability to produce strong, reliable welds makes it invaluable for constructing buildings, bridges, and other infrastructure projects.

Aerospace and Defense

In aerospace and defense applications, GMAW is used to join aluminum, magnesium, and titanium alloys in aircraft components. The minimal spatter and high-quality welds produced by GMAW are crucial for the stringent standards required in these sectors. The process’s precision ensures the integrity and performance of critical components.

Specialized Repairs

GMAW can create reliable welds in difficult environments by using specific shielding gases and equipment. This capability is essential for maintaining the structural integrity of marine vessels and offshore installations, where specialized repair scenarios such as underwater welding are common.

Non-Ferrous Metal Fabrication

GMAW is effective for welding non-ferrous metals like copper, nickel, and silicon bronze alloys. These materials are commonly used in industrial machinery and artistic metalwork, where the process’s adaptability and precision are advantageous. GMAW’s ability to handle various metal types enhances its utility in diverse fabrication applications.

Benefits of GMAW in Various Applications

Speed and Efficiency

One of the significant benefits of GMAW is its speed and efficiency. The continuous wire feed mechanism reduces downtime and enables faster production cycles compared to other welding methods. This efficiency is particularly beneficial in high-volume manufacturing environments, where time savings translate to cost savings.

Material Versatility

GMAW supports a wide range of materials, including carbon steel, stainless steel, aluminum, and hybrid alloys. This versatility allows it to be used across different industries and applications, from automotive manufacturing to aerospace engineering. The process can accommodate various material thicknesses, ranging from thin sheets to thicker plates.

Automation Compatibility

GMAW is easily integrated with robotic systems, making it ideal for high-volume tasks that require consistent output. Automation compatibility ensures that welds are uniform and meet quality standards, which is crucial for industries like automotive and electronics manufacturing.

Environmental and Operational Advantages

GMAW provides multiple benefits, both environmentally and operationally:

• Minimal Waste: GMAW uses fully consumable electrodes, which reduces material waste.
• No Flux Requirement: The absence of flux in GMAW minimizes post-weld cleanup, saving time and resources.
• Lower Skill Threshold: The semi-automatic nature of GMAW makes it easier to learn and operate compared to manual welding processes, reducing the need for highly skilled labor.

Comparative Analysis

When comparing GMAW to other welding processes like SMAW (Shielded Metal Arc Welding) and TIG (Tungsten Inert Gas) welding, several key differences emerge:

Industry-Specific Trends

Automotive

There is a growing trend in the automotive industry toward using aluminum GMAW for lightweight electric vehicle frames. This shift is driven by the need for improved fuel efficiency and reduced emissions, making aluminum an attractive material choice due to its lightweight properties.

Underwater Welding

Advancements in gas mixtures and remote-operated GMAW systems are enhancing the capability of deep-sea repairs. These innovations are crucial for maintaining offshore oil rigs and marine vessels, ensuring safety and operational efficiency in challenging underwater environments.

Robotics

The adoption of AI-driven GMAW systems is increasing, particularly in aerospace and electronics manufacturing. These systems offer precision and adaptability, which are essential for producing high-quality components in industries that demand exacting standards.

The balance of speed, quality, and adaptability in GMAW makes it essential for applications in both heavy industry and precision engineering.

Welding Techniques in GMAW

Basic Welding Techniques

Gas Metal Arc Welding (GMAW) includes various fundamental techniques suited to different welding requirements and materials. Understanding these techniques is essential for achieving optimal results.

Short Circuit Transfer and Spray Transfer

Short Circuit Transfer, also known as short arc or dip transfer, operates at low voltage and current, rapidly cooling the weld pool. This method is ideal for welding thin materials and out-of-position welding, minimizing distortion and burn-through. In contrast, Spray Transfer uses higher voltage and current, melting the wire electrode into fine droplets sprayed into the weld joint. It ensures deep penetration and a smooth, spatter-free weld, suitable for thicker materials but limited to flat and horizontal positions due to high heat input.

Globular Transfer

Globular Transfer uses more heat than Short Circuit Transfer but less than Spray Transfer. The molten metal forms larger globules that transfer across the arc to the weld pool. This technique is less controlled and can produce more spatter, making it less desirable for applications requiring high-quality welds. It is typically used for welding thicker materials where appearance is not a primary concern.

Pulse Spray Transfer

Pulse Spray Transfer is an advanced technique that combines the benefits of Spray Transfer with better control over the heat input. The welding machine alternates between a high peak current and a low background current, allowing the molten droplets to transfer across the arc in a controlled manner. This pulsing action reduces the overall heat input, minimizing distortion and improving weld quality. It is suitable for welding a wide range of materials and positions, making it a versatile choice for complex welding tasks.

Advanced Welding Techniques

In addition to the basic techniques, GMAW includes advanced methods that enhance weld quality and efficiency.

Dual Shield Welding

Dual Shield Welding, also known as Flux-Cored Arc Welding (FCAW) with an external shielding gas, combines the benefits of GMAW and flux-cored welding. This technique uses a tubular wire filled with flux, which generates additional shielding gases and slag to protect the weld pool. The external shielding gas further ensures weld quality. Dual Shield Welding provides deep penetration and high deposition rates, making it suitable for heavy fabrication and structural applications.

Metal-Cored Welding

Metal-Cored Welding uses a composite wire electrode with a metallic core surrounded by a sheath. This technique offers higher deposition rates and improved weld quality compared to solid wire electrodes. The metallic core enhances arc stability and reduces spatter, resulting in cleaner welds. Metal-Cored Welding is particularly effective for welding thick materials and high-strength steels.

Practical Troubleshooting Tips

Recognizing and addressing common problems can greatly enhance the GMAW process.

Addressing Porosity

Porosity, caused by trapped gases in the weld, can weaken the joint. To prevent porosity, ensure proper shielding gas flow, maintain a clean work environment, and use the correct welding parameters. Regularly inspect and clean the welding gun to avoid blockages that can disrupt gas flow.

Controlling Spatter

Spatter can be minimized by adjusting the voltage and wire feed speed to optimal levels. Using high-quality shielding gas and maintaining a consistent welding technique also helps reduce spatter. Employing anti-spatter sprays or gels can further simplify post-weld cleanup.

Preventing Lack of Fusion

Lack of fusion occurs when the weld metal does not properly bond with the base material. To prevent this, ensure adequate heat input by adjusting the voltage and travel speed. Proper joint preparation and maintaining the correct electrode angle also contribute to achieving complete fusion.

In-Depth Technical Analysis of GMAW Techniques

A thorough understanding of the technical aspects of GMAW techniques is crucial for optimizing weld quality and efficiency.

Heat Input Management

Controlling heat input is essential for managing weld pool characteristics and reducing defects. Techniques like Pulse Spray Transfer allow for precise heat control, reducing the risk of distortion and improving structural integrity. Adjusting parameters such as voltage, current, and travel speed helps tailor the heat input to specific welding applications.

Arc Stability

Arc stability is essential for consistent weld quality. Factors influencing arc stability include the type of wire electrode, shielding gas composition, and welding parameters. Using high-quality consumables and maintaining proper equipment settings enhances arc stability, resulting in smoother and more uniform welds.

Material Compatibility

Different materials require specific GMAW techniques to achieve optimal results. For instance, aluminum welding benefits from Pulse Spray Transfer due to its lower melting point and higher thermal conductivity. Conversely, welding thicker carbon steels may require Spray Transfer for deeper penetration and higher deposition rates.

By mastering these techniques and understanding their applications, welders can achieve high-quality welds across various materials and conditions, enhancing the overall efficiency and effectiveness of the GMAW process.

Comparison with Other Welding Processes

Gas Metal Arc Welding (GMAW) and Shielded Metal Arc Welding (SMAW) differ significantly in their technique and equipment. GMAW uses a wire electrode fed continuously along with shielding gas, while SMAW uses a consumable electrode coated with flux. The flux in SMAW melts and forms a protective slag over the weld pool, which must be removed after welding. In contrast, GMAW’s shielding gas prevents atmospheric contamination without producing slag, simplifying post-weld cleanup, whereas SMAW’s portability, due to its lack of external gas cylinders, makes it ideal for fieldwork and remote repairs.

GMAW is known for its high productivity due to the continuous wire feed, making it faster than SMAW. This speed is beneficial in high-volume production environments. Additionally, GMAW’s lack of slag results in cleaner welds and reduced cleanup time. However, SMAW can be more forgiving of surface contaminants, which can be advantageous in less controlled environments.

Flux-Cored Arc Welding (FCAW) can be done with or without external shielding gas. The flux core within the wire generates shielding gases and slag to protect the weld pool. In contrast, GMAW relies exclusively on external shielding gas, such as argon or carbon dioxide. This difference influences the welding environment suitability; FCAW can be more versatile in windy or outdoor conditions where shielding gas might be disrupted.

GMAW generally offers faster welding speeds and higher deposition rates compared to FCAW, especially in applications requiring high productivity. Both processes produce high-quality welds, but FCAW’s slag formation can necessitate additional cleanup. GMAW’s minimal spatter and cleaner welds can save time in post-weld processing, enhancing overall efficiency.

Tungsten Inert Gas (TIG) welding is renowned for its precision and control, making it ideal for intricate work and welding thin materials. TIG uses a non-consumable tungsten electrode and an external shielding gas, often requiring manual addition of filler material. GMAW, on the other hand, uses a consumable wire electrode with continuous feed, which is better suited for high-volume production tasks.

Although TIG welding is slower, it produces exceptionally clean and precise welds, crucial for aerospace and medical device manufacturing. GMAW’s speed and versatility make it a preferred choice for automotive and industrial fabrication where efficiency is paramount.

GMAW’s speed and efficiency are perfect for automotive manufacturing and industrial fabrication, while SMAW’s portability and durability are advantageous for construction and repair work in challenging environments. FCAW’s versatility in shielding mechanisms allows for effective welding in outdoor conditions. TIG’s precision is indispensable in industries requiring meticulous welds, such as aerospace and medical devices.

Understanding these differences helps in selecting the appropriate welding process for specific tasks, optimizing both productivity and weld quality across various applications.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the advantages and disadvantages of GMAW?

Gas Metal Arc Welding (GMAW), commonly known as MIG welding, offers several advantages that make it a favored choice in various industries. It produces high-quality welds with minimal spatter, resulting in less post-weld cleanup. The process is efficient and fast, ideal for high-volume production environments. GMAW is versatile, suitable for welding different metals like steel, aluminum, and magnesium. Additionally, it is relatively easy to learn, making it accessible for beginners.

However, GMAW also has some disadvantages. The initial setup costs for equipment can be high, which might deter small-scale or occasional users. The requirement for shielding gas makes it less effective in windy conditions or areas with air drafts. Compared to methods like SMAW, GMAW equipment is less portable due to the need for a wire feeder and gas supply. The welding gun can be cumbersome, making it difficult to access tight or confined spaces. Lastly, if welding parameters are not properly controlled, there is a risk of lack of fusion in the welds.

How does GMAW compare to other welding processes?

Gas Metal Arc Welding (GMAW) is often compared to other welding processes like Flux-Cored Arc Welding (FCAW), Shielded Metal Arc Welding (SMAW), and Gas Tungsten Arc Welding (GTAW) in terms of productivity, material compatibility, weld quality, positional capability, automation, and cost.

GMAW offers higher welding speeds and continuous wire feed, making it ideal for high-volume production. It is versatile for materials such as steel, aluminum, and stainless steel, but requires shielding gas. While it produces moderate-quality welds with some spatter, it excels in flat and horizontal positions and is easily automated, reducing labor costs for large projects.

In contrast, FCAW is optimized for thick ferrous metals and outdoor use due to its gasless design, providing better penetration but producing slag. SMAW is adaptable to all positions, including overhead and vertical, but requires frequent electrode changes and is slower, increasing labor costs. GTAW is best for thin, non-ferrous metals and precision work, offering superior weld quality but at a higher operational cost and slower speed.

What are the applications of GMAW?

Gas Metal Arc Welding (GMAW) is widely applied across various industries due to its adaptability and efficiency. In the automotive sector, GMAW is used extensively for chassis assembly and component repairs. Manufacturing industries leverage GMAW for robotic assembly lines, facilitating high-volume production of consumer goods and machinery. In construction, GMAW is employed for structural steelwork, shipbuilding, and railroad track repairs. Aerospace applications include joining lightweight alloys such as aluminum and magnesium for airframe components. The energy sector benefits from GMAW in pipe welding for oil and gas pipelines as well as nuclear infrastructure. Additionally, GMAW is favored in custom fabrication for artistic metalwork and specialized equipment requiring precise, clean welds.

How can I improve my welding skills with GMAW?

To improve your welding skills with Gas Metal Arc Welding (GMAW), focus on refining your technique, optimizing the welding process, and utilizing application-specific strategies. Mastering electrode angles is crucial; use a 45° work angle for lap and T-joints and a 90° angle for butt joints. For travel angle, maintain a 15-30° drag angle. Practice gun manipulation patterns such as creating small ovals for lap/T-joints and using a Z-pattern for butt joints to ensure even puddle distribution and proper fusion.

Control your travel speed by monitoring the weld puddle and arc sound—excessive spatter indicates improper speed. Optimize metal transfer by maintaining a consistent arc length and using manufacturer-recommended power settings for stable spray or short-circuit transfer. For positional welding, use smaller wire diameters and reduced amperage for vertical or overhead work to keep weld pools small.

Experiment with push (forehand) and drag (backhand) techniques based on material thickness; push produces wide, shallow welds suitable for thin materials, while drag achieves deeper penetration for thicker sections. Stay updated with recent developments like synergic controls in modern GMAW systems and leverage video tutorials for equipment setup and troubleshooting guidance.

What types of shielding gases are used in GMAW?

In Gas Metal Arc Welding (GMAW), shielding gases are essential for protecting the weld area from atmospheric contamination, which can adversely affect weld quality. The primary types of shielding gases used in GMAW include:

1. Argon (Ar): An inert gas commonly used for welding non-ferrous metals like aluminum, copper, and magnesium. Argon provides a stable arc and produces high-quality welds with good appearance.
2. Carbon Dioxide (CO2): Often used for welding carbon steel due to its cost-effectiveness. However, it can produce a more erratic arc with increased spatter compared to argon-based mixes.
3. Argon-CO2 Blends:
   • C25 (75% Argon, 25% CO2): Popular for MIG welding, offering a balance of arc stability and penetration. The CO2 component helps burn off contaminants.
   • C10 (90% Argon, 10% CO2): Suitable for achieving spray or pulsed spray transfer at lower currents, though less effective on thinner materials.
4. Helium (He) and Argon-Helium Blends: Used for deeper penetration and higher welding speeds, especially with aluminum and magnesium. Blends with argon improve weld quality and reduce gas flow rates.

Choosing the appropriate shielding gas depends on factors such as the type of material being welded, the desired weld characteristics, and the specific welding application.

What are the safety standards for GMAW?

Gas Metal Arc Welding (GMAW), or MIG welding, necessitates strict adherence to safety standards to safeguard operators and bystanders. Key safety considerations include the use of appropriate Personal Protective Equipment (PPE) such as welding helmets with proper filter lenses, safety glasses with side shields, and flame-resistant clothing like gloves, long sleeves, and protective shoes. Ensuring adequate ventilation is vital to prevent inhalation of toxic fumes, especially when welding materials that release harmful gases. Fire prevention measures include keeping flammable materials away from the welding area and having fire extinguishers readily available.

Proper installation, maintenance, and grounding of welding equipment by qualified personnel are essential to prevent electrical shocks and ensure operational safety. Additionally, avoiding welding on coated metals or ensuring proper ventilation and using air-supplied respirators can mitigate the risk of inhaling toxic fumes. Compliance with OSHA standards (e.g., 29 CFR 1910.252) and ANSI guidelines for equipment and safety practices is crucial for maintaining a safe working environment. By following these standards, operators can effectively minimize risks associated with GMAW.
