Understanding High Strength Bolts: A Comprehensive Guide

Have you ever wondered what makes some bolts capable of withstanding extreme forces in construction projects? High strength bolts are the unsung heroes in many engineering feats, offering far greater durability and load – bearing capacity than ordinary bolts. Made primarily from specialized steels, these bolts are crucial in maintaining the structural integrity of buildings and bridges. Their unique manufacturing processes, like quenching and tempering, set them apart. By delving into this guide, you’ll uncover the secrets behind their strength. So, are you ready to explore how these bolts shape modern construction?

Introduction to High Strength Bolts

What is a High Strength Bolt?

High strength bolts are specialized fasteners designed to withstand significant loads and stresses. They are essential components in construction and engineering projects, providing robust and secure connections in various structures.

Definition and Characteristics

High strength bolts are defined by their enhanced mechanical properties, including high tensile strength and durability. These bolts are typically manufactured from strong steel alloys. Their design ensures they can handle greater forces without deforming or failing, making them suitable for critical applications.

Key characteristics of high strength bolts include:

• High Tensile Strength: The ability to resist breaking under tension.
• Durability: Resistance to wear, corrosion, and extreme temperatures.
• Precision Engineering: Manufactured to strict standards for consistent performance.

Importance in Construction and Engineering

High strength bolts play a vital role in ensuring the stability and safety of various structures such as buildings, bridges, towers, and industrial machinery by connecting steel beams and support columns. The use of these bolts is crucial in maintaining the integrity and longevity of structures, especially those exposed to dynamic loads and harsh environmental conditions.

Why Use High Strength Bolts?

Benefits Over Other Types of Bolts

High strength bolts offer several advantages over ordinary bolts, making them the preferred choice for demanding applications. They have an enhanced load – bearing capacity and can handle higher loads without failure. They also improve safety by reducing the risk of structural failures and accidents. Moreover, they have a longer lifespan as they have greater resistance to fatigue and environmental factors.

Common Applications

High strength bolts are used in a variety of applications, including:

• Steel Structures: Essential for the construction of high – rise buildings, bridges, and industrial facilities.
• Heavy Machinery: They provide reliable connections for equipment under high operational stress.
• Aerospace: Used in aircraft construction where lightweight and high – strength materials are critical.

High strength bolts are essential in modern construction and engineering as they offer the reliability and performance required for complex projects. Their superior mechanical properties and durability make them indispensable in maintaining the structural integrity and safety of various applications.

Materials and Manufacturing Processes

Materials Used in High Strength Bolts

High strength bolts are crafted from various materials, each selected for specific properties and applications.

Alloy Steel

Alloy steel is widely used for its exceptional strength and ability to be hardened. Materials like 42CrMo, B7, and 40CrNiMo are commonly used. 42CrMo is known for its high strength, making it suitable for grade 10.9 or 12.9 bolts, while B7, with its precise molybdenum control, is ideal for high-temperature applications. 40CrNiMo offers better low-temperature impact toughness, which is useful in environments as cold as -40°C.

Stainless Steel

Stainless steel is used when corrosion resistance is required. It helps the bolts withstand harsh environments, such as those with high humidity or exposure to chemicals.

Carbon Steel

Carbon steel is cost-effective and easy to machine. It is often used for general applications where extremely high strength is not the primary requirement.

Manufacturing Processes

The production of high strength bolts involves several key steps to ensure their quality and performance.

Material Selection

The first step is selecting the appropriate steel grade based on the application’s requirements. Factors such as the expected load, temperature, and environmental conditions play a role in this decision.

Spheroidization Annealing

This process softens the material, making it more pliable and easier to shape during cold heading, a crucial step in bolt formation.

Wire Drawing

The selected material is stretched to achieve the required diameter. This process helps in getting the bolt to the right size and shape.

Cold Forging

The bolt head is formed through cold forging. This not only gives the bolt its shape but also improves its mechanical properties by aligning the metal grains.

Thread Processing

Threads are rolled onto the bolt. Rolling the threads increases the strength and precision of the bolt, ensuring a better fit and connection.

Heat Treatment

Heat treatment, including quenching and tempering, is critical. Quenching rapidly cools the bolt to form a hard, strong martensitic structure. Tempering is then done by heating the bolt to a specific temperature. This enhances ductility and reduces brittleness, ensuring that the bolt has the right balance of strength and toughness.

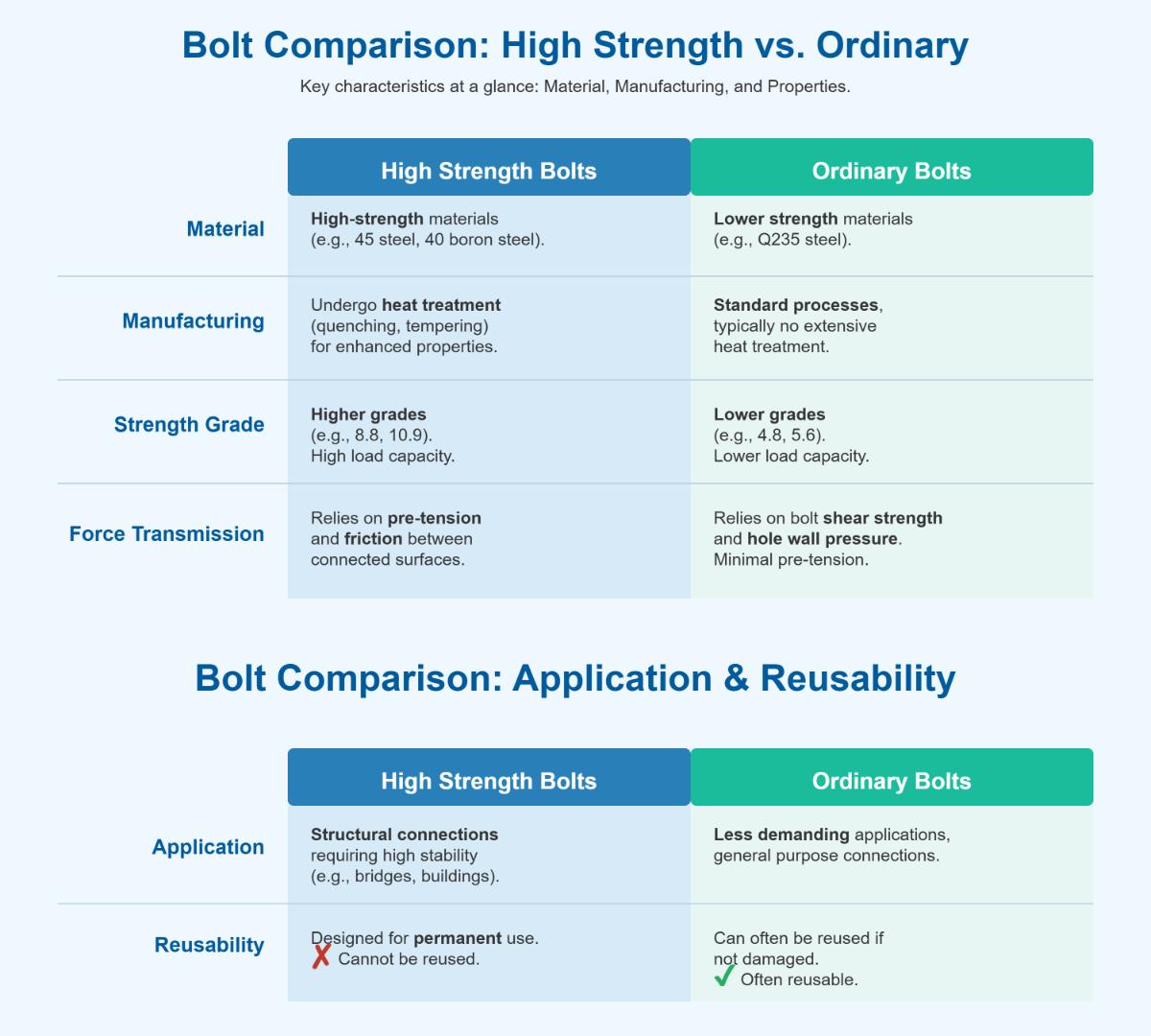

Comparison of High Strength Bolts and Ordinary Bolts

Key Differences

High strength bolts and ordinary bolts mainly differ in the materials used for their construction. High strength bolts are made from high-quality steel alloys like 45 steel, 40 boron steel, and 20 manganese-titanium-boron steel, which are selected for their superior mechanical properties and often undergo heat treatment to enhance strength and durability. In contrast, ordinary bolts are typically made from lower-grade materials like Q235 (A3) steel, which do not undergo the same intensive heat treatment processes, resulting in lower mechanical properties and strength characteristics.

Manufacturing Processes

The manufacturing process for high strength bolts involves several critical steps designed to maximize their strength and reliability. These steps include quenching and tempering. Quenching rapidly cools the bolts to harden them, while tempering reheats them to improve flexibility and toughness. Ordinary bolts do not typically undergo such rigorous heat treatment processes. As a result, their manufacturing process is simpler and less costly, but this also means they do not achieve the same levels of strength and durability as high strength bolts.

Mechanical Properties

High strength bolts, classified into grades such as 8.8 and 10.9, can withstand significantly higher loads and stresses without deforming or failing. Ordinary bolts generally have lower strength grades, such as 4.4, 4.8, and 5.6. While these bolts are suitable for less demanding applications, they do not offer the same load-bearing capacity or resistance to environmental factors as high strength bolts.

Performance Comparison

Load-Bearing Capacity

High strength bolts can handle heavy loads, making them ideal for critical construction and engineering applications. Their ability to maintain structural integrity under heavy loads is a key advantage over ordinary bolts, which have a lower load-bearing capacity and are more likely to fail under high stress.

Resistance to Environmental Factors

High strength bolts also offer better resistance to environmental factors such as corrosion, extreme temperatures, and fatigue. The materials and manufacturing processes used in their production ensure that they can withstand harsh conditions and maintain their performance over time. Ordinary bolts, with their lower-grade materials and simpler manufacturing processes, are more susceptible to environmental degradation and have a shorter lifespan in challenging conditions.

Usage and Reusability

High strength bolts are typically used for permanent connections in critical applications such as steel structures, bridges, and heavy machinery. Once installed, these bolts cannot be reused because the pre-tension applied during installation alters their mechanical properties, making them unsuitable for reuse. Ordinary bolts, on the other hand, can be reused in many applications. Their lower load-bearing requirements and simpler installation processes make them suitable for less demanding tasks where reusability is a practical advantage.

Advantages of High Strength Bolts

High strength bolts offer superior mechanical performance, including higher tensile strength, better resistance to fatigue, and greater durability. These properties ensure that high strength bolts do not loosen under dynamic loads, providing a reliable and secure connection in critical applications. The use of high strength bolts can simplify construction processes. Their robust mechanical properties reduce the need for frequent maintenance and replacements, thereby improving overall efficiency and cost-effectiveness of construction projects.

Applications in Construction and Engineering

High Strength Bolts in Steel Structures

High strength bolts are crucial in the construction of steel structures, ensuring strength and stability to withstand various loads and environmental conditions.

Role in Maintaining Structural Integrity

High strength bolts are essential for connecting steel beams, columns, and trusses in buildings and bridges. They ensure that the structural components remain securely fastened, distributing loads evenly and preventing structural failure. By maintaining the integrity of the connections, these bolts contribute to the
In high-rise buildings, high strength bolts are used to assemble the steel framework that supports the entire structure. They are designed to handle dynamic loads caused by wind and seismic activity, ensuring the building remains stable. In bridge construction, these bolts are used in the assembly of girders and trusses, providing the necessary strength to support the weight of vehicles and resist environmental stresses such as temperature fluctuations and corrosion.

Importance of Pre-Tension

Pre-tensioning is a critical process in the installation of high strength bolts, enhancing their performance and reliability.

Definition and Purpose

Pre-tensioning involves tightening the bolt to a specified tension during installation. This ensures the bolt stays securely fastened and prevents it from loosening under dynamic loads. The main purpose of pre-tensioning is to improve the bolt’s resistance to fatigue and vibration, which are common in structures subjected to variable loads.

How Pre-Tensioning Improves Bolt Performance

By applying pre-tension, the initial tension counters the external loads applied to the structure. This process reduces the risk of bolt failure due to fatigue and minimizes the potential for joint slippage. As a result, pre-tensioned bolts provide more consistent and reliable performance, which is essential for the long-term stability of steel structures.

High Strength Bolts in Heavy Machinery and Equipment

High strength bolts are widely used in heavy machinery and industrial equipment, providing secure connections that can withstand high operational stresses.

Applications in Cranes and Mining Equipment

In cranes, high strength bolts are used to assemble critical components such as the boom and mast sections. These bolts ensure the crane can safely lift and move heavy loads without the risk of mechanical failure. Similarly, in mining equipment, high strength bolts secure structural components, providing the necessary strength and durability to operate in harsh conditions.

Ensuring Stability Under Heavy Loads

For example, in a heavy-duty excavator, high strength bolts hold together the arm and bucket assembly. Without these bolts, the intense forces during digging could cause the components to loosen or fail, leading to dangerous and costly equipment breakdowns.

High Strength Bolts in the Automotive and Aerospace Industries

High strength bolts play a vital role in both the automotive and aerospace industries, where they are used in applications demanding high reliability and safety.

In the automotive industry, high strength bolts are used in critical components such as engine blocks, transmission assemblies, and suspension systems. These bolts ensure that vehicles can operate safely under high speeds and varying thermal conditions, providing the necessary strength and durability to handle dynamic loads.

In the aerospace industry, high strength bolts are used in the construction of aircraft, including wing assemblies, fuselages, and engine mounts. These bolts must withstand extreme conditions, such as drastic temperature changes and high pressures, to ensure the safety and performance of the aircraft.

High Strength Bolts in the Oil and Gas Industry

The oil and gas industry relies on high strength bolts for the construction and maintenance of offshore platforms, pipelines, and pressure vessels.

Offshore Platforms and Pipelines

High strength bolts are used to secure large steel structures, piping systems, and pressure vessels in offshore platforms. These bolts must endure high pressure and corrosive environments, ensuring the integrity and safety of the infrastructure.

Handling Harsh Environments

The robust properties of high strength bolts make them suitable for use in the challenging environments typical of the oil and gas industry. Their resistance to corrosion and ability to maintain strength under high pressure ensure the long-term reliability of critical infrastructure.

In – depth Analysis of Bolt Failure Modes

Common Failure Modes

Understanding the common failure modes of high – strength bolts is crucial for ensuring the reliability and safety of mechanical and structural systems. Here are the primary types of bolt failures:

Fatigue Failure

Fatigue failure happens when bolts are repeatedly loaded and unloaded, causing cracks to form over time. This type of failure is characterized by the presence of cracks at the threads or root and striations on the fracture surface. Common causes include insufficient preload, excessive dynamic loading, and poor design.

Overload Failure

Overload failure occurs when a bolt is subjected to forces beyond its designed strength. This can be due to excessive torque, miscalculated loads, or unforeseen forces. It typically results in fracture or excessive elongation of the bolt.

Corrosion Failure

Corrosion failure occurs when the bolt material reacts with environmental factors like moisture, chemicals, and dissimilar metals (galvanic action), leading to deterioration. Signs of corrosion failure include rust, pitting, and surface irregularities.

Hydrogen Embrittlement

Hydrogen embrittlement happens when hydrogen atoms enter the bolt material, causing it to become brittle. Bolts affected by hydrogen embrittlement exhibit cracking at low stress levels.

Shear Failure

Shear failure occurs when the bolt material yields and fails due to excessive shear stresses. This type of failure is often associated with material defects and is characterized by shear yielding and fracture along the shear plane.

Creep Failure

Creep failure happens when a bolt slowly deforms under constant stress, even if the stress is less than its yield strength. High – temperature environments and material softening are common causes of creep failure, which is indicated by a slow loss of preload.

Preventing Bolt Failures in High – Strength Applications

Preventing bolt failures involves several key practices:

Material Selection

Choosing the right material for the specific application is critical. High – quality materials, such as corrosion – resistant stainless steel or coated bolts, should be used in harsh environments.

Design and Operational Considerations

Properly designing bolted joints to handle expected loads and stresses, using locking mechanisms to prevent vibration – induced loosening, and applying the correct torque as recommended can greatly enhance bolt performance.

Regular Inspection and Maintenance

Regularly inspecting bolts for signs of wear, corrosion, or damage and performing timely maintenance can prevent failures and extend the lifespan of the bolts.

Analyzing Bolt Failures

Analyzing bolt failures involves a systematic approach to identify and understand the root causes:

Failure Mode Effect Analysis (FMEA)

FMEA is a structured method to identify potential failure modes and evaluate their effects on system performance. This analysis helps prioritize areas for improvement by understanding the impact of different failure modes.

Root Cause Analysis (RCA)

RCA is essential for identifying the true cause of bolt failure. It involves examining the failed component and using techniques such as the Ishikawa diagram to map out potential failure scenarios.

Laboratory Testing

Laboratory testing is crucial for accurately diagnosing complex failures like hydrogen embrittlement. This involves detailed analysis of the material conditions to confirm the failure mode and understand the underlying factors.

Case Studies of Successful Bolt Applications

High-strength bolts were crucial in ensuring the stability of a large-scale high-rise steel building project. The building’s design involved connecting numerous steel beams, columns, and trusses. Grade 10.9 bolts were specifically chosen for these connections due to their high tensile strength, which could withstand significant vertical and horizontal loads, including wind and seismic forces. Pre-tensioning was carefully applied to the bolts during construction, counteracting dynamic loads and preventing joint loosening over time. This not only simplified the assembly process but also enhanced the structure’s
A major bridge project required the connection of large steel girders and trusses. High-strength bolts with excellent corrosion resistance were chosen for this application. Given the bridge’s coastal location, it was exposed to high humidity and saltwater, which could cause severe corrosion. The bolts were coated with a special anti-corrosion layer to protect them from the harsh coastal environment. Their fatigue resistance was also a key factor, as the bridge would be subjected to repeated dynamic loads from passing vehicles. These high-strength bolts provided reliable connections that could withstand these loads without failure, ensuring the bridge’s long-term durability and minimizing the need for frequent maintenance.

In mining operations, heavy machinery like large excavators and crushers are essential. High-strength bolts were crucial for securing the various components of this machinery, which had to withstand high operational stresses, including extreme vibrations and heavy loads. For example, in an excavator, high-strength bolts held together the arm and bucket assembly. The bolts’ high yield strength and impact toughness were critical in preventing failures under the intense forces generated during digging. By using high-strength bolts, the mining company reduced the risk of equipment breakdowns, avoiding costly downtime and safety hazards.

In the aerospace industry, high-strength bolts are used in aircraft construction. For instance, in the assembly of an aircraft’s wing, lightweight, high-strength bolts were used. These bolts had to withstand extreme conditions, including drastic temperature changes and high pressures during flight. The precision engineering of the high-strength bolts ensured a tight and secure fit, crucial for the aircraft’s safety and performance. Their use allowed the aircraft to maintain structural integrity under various flight conditions, contributing to the
An offshore oil platform is a complex structure that requires high-strength bolts to withstand high pressure and corrosive environments. High-strength bolts made of materials like B7 (ASTM A193) secured the large steel structures, piping systems, and pressure vessels on the platform, resisting saltwater corrosion and maintaining strength under high pressure, essential for long-term stability. Using these bolts ensured the safety and integrity of the offshore platform, reducing the risk of leaks and structural failures in this critical infrastructure.

Interactive Visuals for Bolts

Importance of Interactive Visuals

Interactive visuals are crucial for understanding the intricate structures and functions of high-strength bolts. These visuals help illustrate the detailed aspects of bolt design, manufacturing processes, and their applications in various engineering projects. By providing a visual representation, they make it easier for beginners to grasp the technical concepts involved.

Types of Interactive Visuals

3D Models

3D models offer a detailed and manipulable view of high-strength bolts. Users can rotate, zoom, and explore the bolt from various angles, which helps in understanding its geometry, including the threads, heads, and shanks. This interactive element is particularly useful for visualizing how bolts fit into assemblies and the significance of precise engineering.

Animated Diagrams

Animations can demonstrate the quenching and tempering process, showing how these treatments improve the bolt’s strength and durability. They can also depict the pre-tensioning process, explaining how tension is applied to bolts to enhance their performance in structural connections.

Interactive Cross-Sections

Interactive cross-sections allow users to see inside the bolts and understand their internal structure. Exploring different layers and components helps learners understand how materials and design contribute to the bolt’s strength and functionality. This is particularly helpful in understanding complex failure modes and the importance of material selection.

Benefits of Using Interactive Visuals

Enhanced Learning Experience

Interactive visuals engage multiple senses, making the learning process more dynamic and effective. They cater to visual and kinesthetic learners by providing a hands-on approach to studying high-strength bolts, which can be more memorable and impactful than static images or text descriptions.

Improved Comprehension of Complex Concepts

By breaking down complex processes and structures into manageable visual segments, interactive visuals help beginners understand intricate engineering concepts. They can see how different parts of a bolt work together and how manufacturing processes influence the final product.

Real-Time Exploration and Interaction

Users can interact with the visuals in real-time, allowing them to explore specific areas of interest or revisit parts they find challenging. This self-paced learning approach enables a deeper understanding and retention of information.

Practical Applications

Educational Tools

Interactive visuals serve as valuable tools in engineering courses and training programs, offering practical ways for students to visualize theoretical concepts and real-world applications of high-strength bolts.

Professional Training

In professional settings, interactive visuals can be used for training new engineers or technicians. They help bridge the gap between theoretical knowledge and practical application, ensuring that professionals are well-prepared to work with high-strength bolts in various projects.

Accessing Interactive Visuals

Interactive visuals can be accessed through various platforms, including educational websites, engineering software, and mobile applications. Many resources offer free or subscription-based access to high-quality interactive content that can be used for both self-study and formal education.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the differences between high strength bolts and ordinary bolts?

High strength bolts differ from ordinary bolts primarily in their material composition, manufacturing processes, mechanical properties, and applications. High strength bolts are made from high-strength materials like 45 steel or 40 boron steel, and undergo heat treatments such as quenching and tempering to enhance their strength and durability. They are commonly available in higher strength grades like 8.8 and 10.9, making them capable of withstanding higher loads and are typically used in structural connections requiring high stability, such as bridges and buildings.

In contrast, ordinary bolts are usually made from lower strength materials like Q235 steel and have lower strength grades (e.g., 4.8 or 5.6). They rely on the shear strength of the bolt rod and the pressure of the hole wall for force transmission, and their pre-tension is minimal. Ordinary bolts are suitable for less demanding applications and can often be reused, unlike high strength bolts, which are designed for permanent, high-load-bearing connections and cannot be reused once installed.

Detailed comparison of features and uses

High strength bolts are specialized fasteners made from high-quality alloy steel and undergo rigorous heat treatments like quenching and tempering to enhance their strength and durability. They are designed to bear greater loads and withstand harsh environments, making them ideal for critical applications such as large steel structures, heavy machinery, and aerospace.

Ordinary bolts, on the other hand, are typically made from carbon steel or low alloy steel and involve simpler production processes. They are suitable for general loads and less demanding environments, such as furniture assembly and non-load-bearing construction projects.

The key differences include the connection mechanism, where high strength bolts apply significant pre-tension to ensure no relative movement under load, providing high rigidity and safety. Ordinary bolts rely on shear strength and have minimal pre-tension, which can lead to movement under load.

High strength bolts are not reusable due to their high pre-tension, making them ideal for permanent, critical connections. Ordinary bolts can be reused but are less reliable under dynamic loads.

Economically, high strength bolts are more expensive but provide long-term reliability and safety, which can be cost-effective in critical applications. Ordinary bolts are more cost-effective for general applications where high strength is not required.

How are high strength bolts used in construction?

High strength bolts are essential in construction, particularly in assembling steel structures like buildings and bridges. These bolts provide superior tensile strength, which is crucial for maintaining the stability and integrity of large-scale structures. They are designed to withstand significant forces, resist corrosion through coatings like galvanization, and endure continuous stress, making them ideal for environments subject to heavy traffic or machinery vibrations.

In construction, high strength bolts are used to connect steel beams and frames, ensuring that high-rise buildings can withstand environmental stresses. In bridges, they connect steel components that bear the weight of vehicles and pedestrians, maintaining structural integrity under varying loads. Types of high strength bolts used in construction include hexagon head bolts, anchor bolts, heavy hex bolts, structural bolts, and tension control bolts.

The benefits of using high strength bolts in construction include their high load capacity, which ensures the structural integrity of large constructions, and their pre-tension force, which reduces the risk of slippage under load. Their resistance to corrosion and fatigue extends the service life and reliability of structures, and they are designed for ease of installation and minimal maintenance.

Specific examples and case studies

High-strength bolts are used in a variety of critical applications due to their superior mechanical properties. One notable example is their use in the construction of steel structures such as bridges and high-rise buildings. These bolts provide the necessary load-bearing capacity and resistance to dynamic forces, ensuring the structural integrity and safety of these constructions.

A specific case study involves the use of high-strength bolts in the mass production of excavators. These bolts are essential for maintaining the operational reliability and structural integrity of heavy machinery, highlighting their importance in the manufacturing sector.

Another example is the custom engineering of high-strength hex bolts for a stamping supplier. This showcases the adaptability of high-strength bolts in various industrial processes, providing cost-effective solutions without compromising performance.

These real-world applications underscore the critical role of high-strength bolts in ensuring safety, durability, and efficiency across different industries.

What materials are high strength bolts made of?

High strength bolts are made from specific materials chosen for their exceptional mechanical properties, including high tensile strength, hardenability, and resistance to high temperatures and impact loads. Common materials used include alloy structural steels such as 42CrMo, B7, and 40CrNiMo.

• 42CrMo is known for its high strength and hardenability, making it suitable for bolts in grades like 10.9 and 12.9.
• B7 is often used in high-temperature and high-pressure environments, particularly in petrochemical equipment.
• 40CrNiMo is preferred for applications requiring low-temperature impact toughness, such as wind power and offshore engineering.

Additionally, advanced alloys like Inconel 718 and MP35N are used in extreme applications due to their high strength and excellent corrosion resistance, ideal for aerospace and high-performance industries. These materials ensure that high strength bolts can withstand demanding conditions and maintain structural integrity in various applications.

Overview of common materials and their benefits

High strength bolts are made from various materials, each with unique benefits. Alloy steels like 42CrMo, B7, and 40CrNiMo offer high tensile strength, impact toughness, and resistance to corrosion and wear, suitable for automotive, aerospace, and construction. Stainless steel, available in grades 304, 316, and 410, has excellent corrosion resistance and is used in marine and food processing. Titanium is lightweight with a high strength – to – weight ratio, used in aerospace and medical implants. Carbon steel is cost – effective for general construction, while brass and bronze, with moderate strength and an attractive look, are used in electrical and decorative applications.

What are the common failure modes of high – strength bolts?

High-strength bolts, while robust, can fail due to several common modes. Fatigue failure happens from repeated loading cycles, leading to cracks, often due to insufficient preload or excessive cyclic loading. Shear failure occurs when the applied shear stress surpasses the bolt’s shear strength, causing joint members to slip sideways. Hydrogen embrittlement results from hydrogen absorption, making the bolt brittle and prone to cracking, particularly in bolts with zinc or cadmium plating. Corrosion failure weakens bolts through material degradation from exposure to moisture or chemicals. Overload failure arises from forces exceeding the bolt’s strength, causing fractures or elongation. Lastly, galling and seizing involve adhesive wear that locks parts together, often due to over-tightening or insufficient lubrication. Preventing these failures involves proper preload, material selection, avoiding over-tightening, and regular inspections.

Can you provide more real – life examples of successful high – strength bolt applications?

High-strength bolts have been successfully applied in various real-life scenarios due to their exceptional strength and durability. In construction, they are essential for assembling steel beams and columns in high-rise buildings and bridges, ensuring these structures can withstand heavy loads and environmental stresses like wind and seismic forces. In renewable energy, high-strength bolts are used in wind turbine towers and solar panel mounting systems to endure extreme weather conditions.

In the aerospace and automotive industries, these bolts are vital for aircraft structural components and high-performance vehicles, maintaining integrity under extreme conditions. The oil and gas industry relies on high-strength bolts for offshore platforms and pipelines, where they must withstand high pressure, temperature fluctuations, and corrosive environments. Additionally, in heavy machinery and power plants, these bolts ensure the reliability of mining equipment, turbines, and generators under continuous use and vibration. These examples highlight the critical role of high-strength bolts in maintaining safety and performance across various sectors.

How do interactive visuals help in understanding high – strength bolts?

Interactive visuals are extremely helpful for understanding high-strength bolts. For instance, visual indication systems like SmartBolts change color when the right tension is reached, making it easy to see if a bolt is properly tightened. Educational videos on platforms such as YouTube explain differences in bolt grades and their performance under stress. Interactive simulations show how bolts behave under different loads and environmental factors. Design and engineering tools offer virtual visualizations for testing bolted joints. Real-time monitoring systems provide instant feedback on bolt tension. Overall, these visuals simplify complex concepts and enhance understanding of high-strength bolts.
