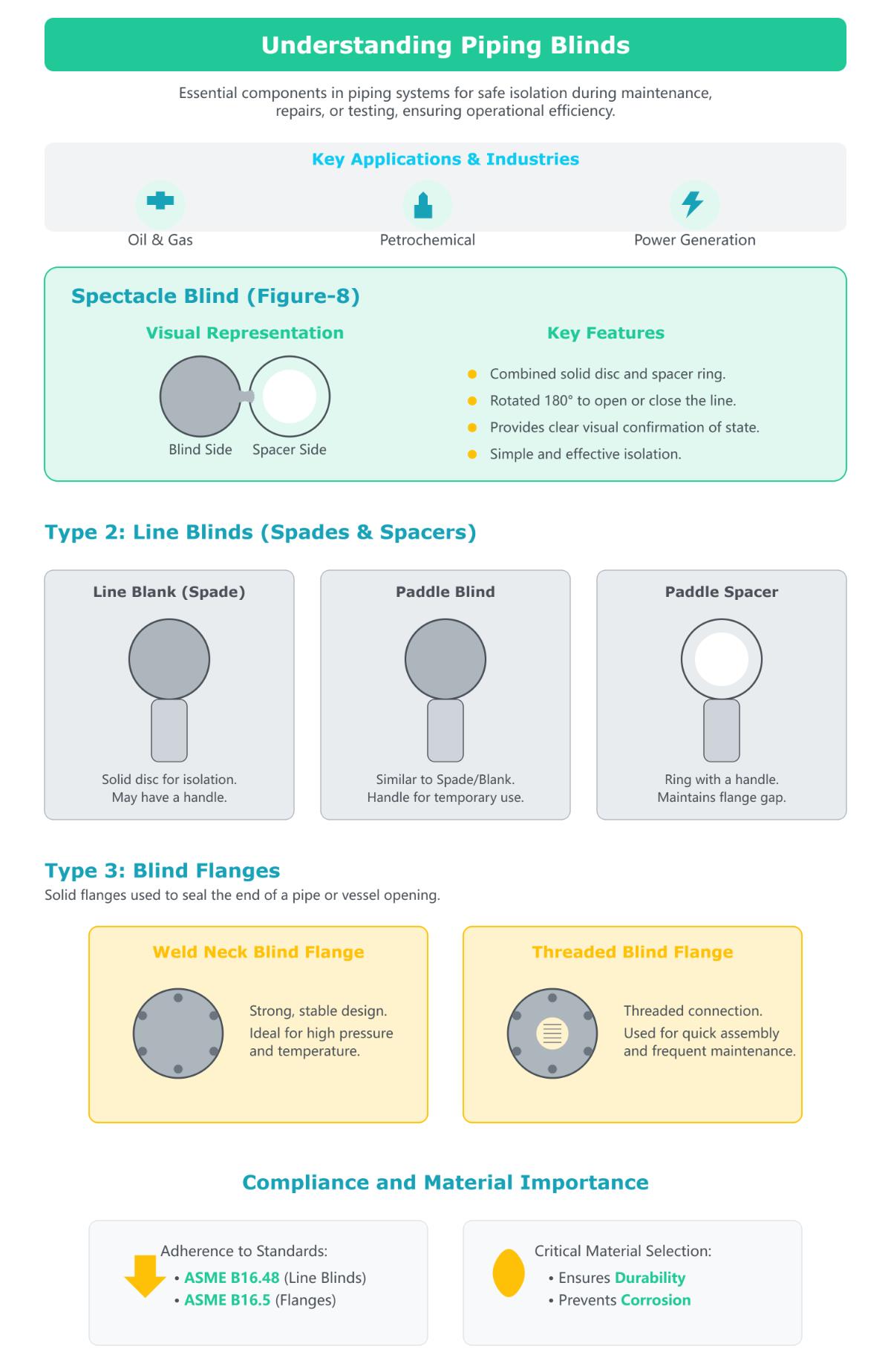

Understanding Spectacle Blinds and Line Blinds in Piping Systems

In the intricate world of piping systems, isolation devices play a crucial role in ensuring safety and efficiency. Among these, spectacle blinds and line blinds stand out as key components. Spectacle blinds, with their unique figure-eight shape, alternate between allowing and blocking flow, while line blinds offer a more permanent isolation solution. There are also blind flanges, which seal off the end of a pipe. Intermediate-level professionals seeking a technical deep-dive into these components will learn about their definitions, technical specs, and applications across industries like oil and gas. So, which type of blind is the most cost – effective for a specific industrial use?

Introduction to Piping Isolation Devices

Definition and Purpose of Piping Isolation

In industrial piping systems, piping isolation is essential for safety and maintenance. This involves using different methods and devices to block the flow of fluids or gases, creating a safe work zone. This process protects personnel, prevents environmental contamination, and ensures safety during maintenance, repairs, or modifications.

Factors Influencing Isolation Technique Selection

The choice of isolation techniques depends on several factors. Pipeline size plays a significant role, as larger pipes may require different isolation methods compared to smaller ones. The pressure within the pipeline is another crucial factor, as isolation devices must be able to withstand the operational pressures. The type of fluid flowing through the pipeline, whether it is a gas, liquid, or a hazardous substance, also affects the selection of isolation techniques. Additionally, the duration of isolation required for the maintenance or repair work is considered, as some methods are more suitable for short-term isolation, while others are better for long-term scenarios.

Common Isolation Methods

There are several common isolation methods used in piping systems. Valves, both single and double block types, are frequently employed. Single-block valves can stop the flow in one direction, while double-block valves provide an additional layer of protection by blocking the flow from both sides. Double block and bleed systems use two valves to block the flow and a bleed valve to release trapped fluid or pressure. Mechanical plugs are another option, which can be inserted into the pipeline to physically block the flow. Physical removal or insertion of blanks or spools is also a common practice, where a blank plate is inserted between flanges to block the flow path.

Requirements for Isolation Devices

Isolation devices must withstand operational pressures, provide a reliable seal to prevent leaks, and be made from materials compatible with the pipeline fluid to avoid corrosion.

Spectacle Blinds

Spectacle Blinds in Piping Systems

Spectacle blinds are vital components in piping systems, used to isolate pipeline sections during maintenance, inspection, or shutdown. They resemble a pair of spectacles, consisting of a solid plate on one side and a ring-shaped plate (spacer) on the other, connected by a small piece of metal. This figure-eight shape allows them to be rotated to either block the flow or allow it, depending on the maintenance needs.

Material and Construction

Spectacle blinds are typically made from materials that match the piping system, such as carbon steel (ASTM A105), stainless steel (ASTM A182), and various alloy steels, ensuring compatibility and durability. The choice of material depends on the operational conditions, such as pressure, temperature, and the type of fluid being transported.

Importance in Piping Systems

Spectacle blinds play a significant role in ensuring the safety and efficiency of piping systems. They provide a reliable method for isolating sections of the pipeline, allowing maintenance work to be carried out without the risk of fluid flow. This isolation capability is vital in industries where the safe operation of pipelines is critical, such as oil and gas, petrochemicals, and power generation.

Technical Specifications

Operational Modes

Spectacle blinds have two primary modes: ‘Blind Mode,’ where the solid plate blocks the flow to isolate the section, and ‘Spacer Mode,’ where the ring-shaped plate allows fluid to flow normally.

Installation and Rotation

Spectacle blinds are installed between flanges in the pipeline. They can be rotated without removal, making them highly efficient for systems that require frequent isolation. The rotation is usually facilitated by loosening the flange bolts and using lifting equipment to turn the spectacle blind to the desired position.

Advantages and Limitations

Advantages

• Safety: Spectacle blinds ensure the safety of maintenance personnel by providing a secure method of isolating pipeline sections.
• Efficiency: They reduce downtime by allowing quick and easy isolation without the need to remove the device from the pipeline.
• Cost-Effectiveness: Compared to isolation valves, spectacle blinds are a more economical option for isolating sections of pipelines.

Limitations

• Weight: In large piping systems, the weight of spectacle blinds can be significant, potentially adding stress to the pipeline. This is particularly relevant for sizes above 16 inches.
• Manual Operation: The need for manual rotation and the use of lifting equipment can be seen as a drawback compared to automated isolation methods.

Quality Control and Standards

Spectacle blinds are manufactured according to industry standards like ASTM and ANSI, ensuring they meet requirements for dimensional accuracy, material quality, and pressure rating.

Quality Assurance

Manufacturers subject spectacle blinds to rigorous testing to meet the stringent requirements of heavy industries. This testing ensures that the blinds can withstand the operational pressures and conditions they will encounter in service.

Key Considerations for Spectacle Blind Usage

Accessibility

It is essential to ensure that spectacle blinds are accessible for maintenance and operation. This includes considering factors such as the placement within the pipeline and the availability of lifting equipment for rotating the blind.

Material Selection

Choosing the right material for the spectacle blind is crucial for longevity and performance, ensuring compatibility with the pipeline fluid to prevent corrosion and enhance durability.

Spectacle blinds are indispensable for maintaining the integrity and safety of piping systems, providing a reliable and efficient method for isolating sections during maintenance or emergencies.

Line Blinds

Definition and Concept

Line blinds are solid plates placed between flanges to completely block off a pipe section. These devices offer a reliable method for achieving a complete shut-off, ensuring no fluid or gas passes through the pipe. Unlike valves, which depend on system pressure to remain closed, line blinds provide a positive, verifiable shut-off, even if seals fail.

Comparison with Spectacle Blinds

• Structure:
• Line Blinds: Single solid plates.
• Spectacle Blinds: Consist of two discs (a solid disc and a ring-shaped spacer) connected by a small metal section.
• Operation:
• Line Blinds: Usually require breaking the flange connection to insert or remove.
• Spectacle Blinds: Can be rotated between open and closed positions without fully removing the assembly.
• Isolation:
• Line Blinds: More suitable for long-term or permanent isolation.
• Spectacle Blinds: Better for frequent switching between open and closed states.
• Installation Effort:
• Line Blinds: Traditionally need flange removal and re-bolting.
• Spectacle Blinds: Require flange removal but no re-bolting.
• Pipe Stress:
• Line Blinds: Spreading types can induce flange spreading stress, non-spreading types avoid such stress.
• Spectacle Blinds: Cause minimal pipe stress.

Technical Specifications

Types Based on Mechanical Operation

• Spreading Line Blinds:
• Example: Strahman 700 Series.
• Features: Spread the adjacent pipe flanges apart to allow the solid line blind plate to seal the upstream pipe. Cost-effective and suited for high-pressure or extreme temperature applications. Operate without additional tooling.
• Real-World Scenario: Ideal for isolating high-pressure steam lines in power plants to ensure safe maintenance.
• Non-Spreading Line Blinds:
• Examples: Strahman 740 and 760 Series.
• Features: Use a cam mechanism to create space between the flanges. The line blind plate can then be rotated or slid into position. Minimize mechanical stress on piping. Many feature ergonomic designs with handwheels or levers for easy operation and can be automated for position feedback.
• Real-World Scenario: Suitable for food and beverage processing where frequent cleaning and safety checks are necessary without inducing pipe stress.

Safety and Standards

Line blinds are crucial safety devices recognized in industry regulations. OSHA 29 CFR specifies their use in permit-required confined spaces and lockout/tagout procedures for energy isolation. They are manufactured and dimensioned according to ASME B16.48 standards, ensuring compatibility with flange sizes and pressure ratings per ASME B16.5 flanges. These standards guarantee that line blinds can withstand maximum system pressures without leakage.

Applications

Line blinds are widely used in various industries where safety and reliable isolation are critical:

• Petrochemical and Chemical Processing: Essential for isolating sections of the plant during maintenance to prevent hazardous leaks.
• Oil and Gas Pipelines and Facilities: Used to safely isolate pipeline sections, ensuring the safety of workers during repairs.
• Food and Beverage Processing: Important for maintaining hygiene and safety standards by allowing thorough cleaning and inspection.
• Power Generation: Ensure safe isolation of high-pressure steam lines during maintenance.
• Mining and Plastics Manufacturing: Provide reliable shut-off in systems handling abrasive or hazardous materials, enhancing operational safety.

Blind Flanges

Product Overview

Blind flanges are solid, circular plates used to close off the end of a pipe, valve, or vessel, effectively blocking the flow of fluid or gas. Unlike other flange types, blind flanges have no center bore, making them ideal for situations where isolation is required. They are bolted to the pipe or valve flange, allowing for easy removal and access to the pipeline interior when needed for inspection, maintenance, or modification. This feature enhances the operational flexibility of the piping system.

Usage in Piping Systems

Isolation and Shutdown

Isolate sections of a piping system during maintenance, repairs, or modifications. By securely sealing off a part of the pipeline, blind flanges prevent fluid or gas leakage, ensuring the safety of workers and the integrity of the system.

Pressure Testing

Play a vital role in pressure testing of piping systems. By sealing off sections, operators can apply pressure and verify the integrity of the pipes, joints, and other components.

Contamination Prevention

Prevent the ingress of contaminants when a section of the pipeline is closed, maintaining the purity of the fluid and ensuring compliance with safety and environmental standards.

Access Points

Serve as removable end caps, allowing future access to the pipeline for extensions, inspections, or the installation of valves and fittings.

Technical Specifications

Design Considerations

Blind flanges come in various pressure classes and sizes. They are generally thicker than standard flanges because they need to withstand system pressure without the support of a bore. Common flange face types include Raised Face (RF), Flat Face (FF), and Ring-Type Joint (RTJ). The RTJ type is preferred for high-pressure applications due to its enhanced sealing capabilities.

Material Selection

The materials used for blind flanges typically match those of the connected piping. Steel and stainless steel, such as 304L and 316L, are common choices. These materials offer a good balance between strength and corrosion resistance, ensuring the longevity of the blind flange and the

Gasket Use

Gaskets for blind flanges are usually standard ring or full-face types to ensure a tight seal. However, using solid-center (no ID, or inner diameter) gaskets with blind flanges is generally not recommended. Trapped fluid behind such gaskets can build up pressure and pose a safety hazard when the bolts are loosened.

Applications and Industries Using Blind Flanges

Common Applications of Blind Flanges

Blind flanges are integral components in various industrial applications due to their ability to provide a secure, leak-proof seal at the ends of piping systems. They play a crucial role in maintaining system integrity, especially in environments characterized by high pressure and extreme temperatures.

Oil and Gas Industry

Blind flanges are ubiquitous in the oil and gas sector, including upstream, midstream, and downstream operations.

• Upstream: They seal off wellheads during maintenance or when not in use, both on offshore drilling platforms and onshore oil fields.
• Midstream: In pipelines transporting crude oil and natural gas, blind flanges isolate sections for repairs, inspections, and pressure testing.
• Downstream: Refineries and petrochemical plants rely on blind flanges to isolate processing units during shutdowns or turnarounds, ensuring safety and facilitating maintenance activities.

Chemical Processing

In chemical plants, blind flanges serve as critical safety components.

• Batch Processing: They enable the isolation of reactors, distillation columns, and storage tanks for cleaning, inspection, or repair.
• Corrosive Environments: Often made from corrosion-resistant materials like stainless steel or special alloys to handle aggressive chemicals.
• High-Pressure Systems: Used in high-pressure applications to maintain system integrity and prevent leaks of hazardous substances.

Water and Wastewater Treatment

Blind flanges are vital in both municipal and industrial water treatment facilities.

• System Isolation: They allow sections of water pipelines to be isolated for maintenance, preventing contamination and ensuring the safety of the water supply.
• Upgrades and Repairs: Facilitate upgrades and repairs by sealing off sections of the system without disrupting the entire network.

Power Generation and HVAC Systems

Power plants and HVAC systems rely on blind flanges for various functions.

• Steam and Gas Turbines: In power plants, blind flanges are essential for isolating sections of high-pressure steam and gas pipelines during maintenance and inspections.
• Safety and Compliance: They ensure compliance with safety standards by providing a reliable method for shutting down sections of the piping system in emergencies.
• HVAC Systems: Used to isolate sections of ductwork or piping, allowing for maintenance or modifications without affecting the entire system. They help regulate airflow and pressure to optimize performance and efficiency.

Industry-Specific Applications

Blind flanges are critical in the marine and offshore industries due to their robust construction and resistance to harsh environments. On offshore platforms, they seal off sections of piping exposed to seawater and extreme weather conditions, ensuring the safety and operational integrity of the platform. In shipbuilding, they isolate piping systems during construction, repairs, and maintenance.

In agricultural settings, blind flanges are used in irrigation systems and pipelines. They ensure secure connections and prevent leaks in pipelines transporting water, fertilizers, and pesticides. Providing a reliable seal in demanding field conditions, blind flanges contribute to the efficiency and sustainability of agricultural operations.

Types and Material Considerations

Blind flanges are available in various types and materials to suit different operational demands and environments.

• Types: Include Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), and Hub Blind Flanges. Each type is designed to meet specific sealing requirements and operational conditions.
• Materials: Commonly used materials include carbon steel, alloy steel, stainless steel (such as 304L and 316L), and specialized alloys (nickel, chromium, molybdenum) for highly corrosive environments. Material selection typically matches the connected pipe material to ensure compatibility and longevity.

Selection Criteria

When selecting blind flanges, several factors must be considered:

• Pressure and Temperature Ratings: Ensure that the blind flange can withstand the operational pressures and temperatures of the system.
• Material Compatibility: Choose materials that are compatible with the fluid or gas being transported to prevent corrosion and ensure a long service life.
• Industry Standards: Compliance with industry standards, such as ASME B16.5 and B16.47, is essential for ensuring safety and reliability.

Blind flanges are indispensable in various industries, providing a robust, reliable means of isolating sections of piping systems for maintenance, repair, and testing. Their application spans across sectors, demonstrating their versatility and critical role in maintaining operational safety and efficiency.

Comparative Analysis of Blind Options for Specific Industries

Oil and Gas

Safety and reliability are paramount in the oil and gas industry because of the hazardous fluids and high pressures and temperatures. Line blinds, especially quick – action models, are highly recommended. They provide positive isolation. This isolation is crucial when dealing with flammable and toxic substances. These blinds can handle extreme pressures and temperatures, making them suitable for all aspects of the industry, from upstream drilling to downstream refining. Spectacle blinds may be used in less critical areas where cost is a major factor and frequent isolation is not as necessary.

Petrochemical

Petrochemical plants need both types of blinds based on the application. Routine isolation tasks involve regular maintenance activities such as checking equipment for wear and tear or replacing small components. For these tasks, spectacle blinds are useful. Their easy rotation between open and closed positions allows for quick and efficient isolation. Critical safety isolation, however, is required in areas where the release of hazardous chemicals could cause significant harm to workers, the environment, or the plant itself. For example, in areas where highly reactive or toxic chemicals are stored or processed. In these cases, line blinds are a better choice as they offer a more robust physical barrier and ensure zero leakage even under extreme conditions.

Power Generation

Power generation facilities, whether fossil – fueled, nuclear, or renewable, demand high reliability and safety during maintenance and shutdowns. Line blinds are the preferred option. They can withstand the high pressures and temperatures of steam and other working fluids. For instance, during maintenance of a steam turbine, a line blind can be installed to prevent high – pressure steam from flowing into the maintenance area. This protects workers from steam burns and other potential injuries. It also prevents steam from damaging sensitive equipment that is being serviced, ensuring the integrity of the power generation system.

Manufacturing and Metalworking

In manufacturing and metalworking, the choice between spectacle and line blinds depends on the specific processes and the nature of the fluids or materials being handled. For operations with moderate pressures, lower temperatures, and less hazardous substances, spectacle blinds are a cost – effective solution. They are easy to install and allow for visual inspection of the flow status. In metalworking, this could be for processes like low – pressure water cooling systems or in general manufacturing for handling non – toxic liquids. However, for high – stress situations such as high – pressure hydraulic systems in manufacturing or handling molten metals in metalworking, line blinds are more appropriate. They offer better isolation and durability, reducing the risk of leaks and ensuring the safety of the work environment.

Engineering

Engineers should consider the project’s specific needs when specifying blind options. For projects where cost is a major constraint and isolation requirements are not extremely demanding, spectacle blinds can be a viable option. However, for projects that prioritize safety, reliability, and the ability to handle extreme conditions, line blinds are typically recommended. Engineers also need to ensure that the selected blinds comply with relevant industry standards and regulations.

Case Studies and Cost Analysis

Case Studies Demonstrating Application and Benefits

Spectacle Blinds in Petrochemical and Power Plants

In a large petrochemical plant, expanding production capacity required the installation of new pipelines and equipment. Spectacle blinds were employed to isolate specific piping sections during this process. This not only prevented potential contamination between the old and new systems but also minimized downtime, particularly in high – pressure steam systems where the quick – switching ability of spectacle blinds was extremely beneficial for routine maintenance. Workers could rapidly isolate the required section, perform maintenance tasks, and then resume normal flow, ensuring the continuous and safe operation of the plant.

Power plants also rely on spectacle blinds, whose figure – eight design allows for the safe and quick isolation of specific pipeline sections. In systems handling high – temperature or high – pressure fluids, such as steam pipelines in a thermal power plant, the quick isolation feature is critical. It helps protect workers from potential hazards and prevents damage to the equipment during maintenance or emergency situations.

Line Blinds in Chemical Processing Plants

A chemical plant faced significant challenges with its traditional line blinds, especially in small – diameter piping and manifold systems. These bulky blinds were difficult to operate, which increased the risks of misalignment, equipment damage, and worker injury. The plant decided to replace them with SchuF Cam Set line blinds. This innovative solution eliminated the need for flange spreading and bolt removal during installation and removal. As a result, the plant achieved positive isolation in under a minute for small – sized pipes. The new line blinds enhanced operational efficiency and safety, and also significantly reduced maintenance downtime.

Cost Analysis and Operational Impact

Installation and Maintenance Costs

Spectacle blinds have a distinct advantage when it comes to installation and maintenance costs. Since they can rotate in place, there is no need for flange spreading and bolt removal during switching operations. This not only saves labor costs but also reduces the downtime required for maintenance. In contrast, traditional line blinds often require the time – consuming process of flange spreading and re – bolting, which increases labor hours and system downtime. Compared to isolation valves, spectacle blinds also offer cost savings in terms of both installation and long – term maintenance.

Safety and Risk Mitigation

Traditional line blinds pose safety risks, particularly when flange spreading is involved. Using cheater bars to spread flanges can lead to misalignment and physical harm to workers. However, innovations like the SchuF Cam Set line blinds have addressed these issues. They enable quick, bolt – free installation and removal, which significantly reduces the risk of accidents and damage – related expenses. Spectacle blinds, with their design that does not require flange spreading, also provide a high level of safety.

Material and Longevity Considerations

Spectacle blinds made from corrosion – resistant materials like stainless steel or alloys often have a higher upfront cost. However, they offer a long service life and a reduced replacement frequency. This leads to a lower total cost of ownership as it minimizes unplanned outages and the need for frequent gasket replacements. Line blinds also come in various materials, and the choice depends on the manufacturer and the specific application requirements. Selecting the right material for both types of blinds is crucial to ensure their longevity and performance.

Operational Efficiency Gains

The ability of spectacle blinds to switch quickly between open and closed states has a direct impact on operational efficiency. During maintenance or emergency shutdowns, reduced process downtime means that the plant can resume normal operations faster. The chemical plant that installed over 120 SchuF line blinds reported faster blanking operations and enhanced safety. These improvements translated into better plant availability and lower operational costs, as the plant could produce more with less disruption.

Maintenance and Safety Procedures for Piping Systems

Maintenance Procedures for Piping Systems

Inspection and Monitoring

Regular inspection and monitoring are crucial for ensuring the integrity and safety of piping systems. This involves:

• Visual Inspection: Regularly check piping isolation devices, such as spectacle blinds and line blinds, for signs of wear, corrosion, or damage. Identifying issues early can prevent leaks and potential failures during operation.
• Flange and Gasket Checks: Inspect flange surfaces and gaskets for cleanliness and damage. Replace gaskets as needed to maintain a proper seal.
• Identification Verification: Ensure spectacle blinds are correctly marked to differentiate between open (ring) and closed (solid plate) sides to avoid operational errors.
• Documentation: Keep detailed records of inspection findings, repairs, replacements, and installation history to support predictive maintenance and compliance auditing.

Proper Installation, Handling, and Corrosion Prevention

Effective installation, handling, and maintenance of piping isolation devices are essential for safe and reliable operation:

• System Shutdown and Depressurization: Ensure the system is fully depressurized and drained before installing or removing isolation devices to prevent accidents.
• Appropriate Tools and Training: Use correct tools and ensure personnel are trained to avoid damage to isolation devices and flange faces during installation.
• Correct Orientation: For spectacle blinds, verify the correct side faces the flow direction to prevent operational mistakes.
• Torque Specifications: Tighten flange bolts uniformly to manufacturer-recommended torque values to ensure an effective seal without damaging the blind or flanges.
• Cleaning: Regularly clean isolation devices to remove corrosion products, debris, or chemical deposits. Use mechanical brushing or chemical cleaners compatible with the device material.
• Corrosion Protection: Apply protective coatings or use corrosion-resistant materials for isolation devices. Regularly inspect and maintain these coatings to prevent degradation.

Safety Protocols for Piping Systems

Personal Protective Equipment (PPE) and Training

Ensuring safety during maintenance and handling involves:

• PPE Use: Personnel must wear appropriate PPE, including gloves, goggles, and protective clothing, during installation, removal, and inspection to protect against exposure to hazardous substances or mechanical injury.
• Training: Regular training ensures staff understand the function, proper handling, and safety protocols associated with isolation devices, including emergency procedures.

Lockout/Tagout Procedures

Implementing Lockout/Tagout (LOTO) during maintenance activities is critical:

• LOTO Implementation: Use LOTO procedures during the installation or removal of isolation devices to ensure the system remains isolated and cannot be inadvertently pressurized or activated.

Emergency Preparedness

Facilities must have clear emergency response plans:

• Emergency Response Plans: Develop protocols for immediate isolation and evacuation in case of leaks or accidental releases during handling of isolation devices.

Integration with

Isolation devices are part of a comprehensive maintenance program:

• System Inspections: Conduct regular inspections using ultrasonic testing, radiography, and thermal imaging to detect hidden flaws or leaks.
• Pressure Testing: Perform pressure tests after installation or maintenance to verify system integrity.
• Corrosion Monitoring: Implement corrosion prevention measures, including inhibitors and selecting materials resistant to process fluids.
• Documentation: Maintain thorough records of all maintenance activities, including inspections, repairs, and isolation device usage.
• Training Programs: Ensure all personnel are trained in the maintenance and safety aspects of piping systems and isolation devices.

ASME Standards for Piping Systems

Overview of ASME Standards

The American Society of Mechanical Engineers (ASME) establishes detailed standards for designing, fabricating, installing, and maintaining piping systems. These standards ensure the safety, reliability, and functionality of piping components and accessories used in various industries, including oil and gas, petrochemical, and power generation.

ASME B31.3 – Process Piping

ASME B31.3 covers the design, materials, fabrication, assembly, erection, inspection, and testing of process piping typically found in petroleum refineries, chemical plants, pharmaceutical facilities, paper and pulp plants, and power generation industries. It provides guidelines to ensure that piping systems operate safely under various pressure and temperature conditions. Spectacle and line blinds are essential components in process piping systems for isolating sections during maintenance or operational activities. ASME B31.3 specifies that these components must match the pressure – temperature ratings of the piping system to which they are attached. This includes requirements on the design, materials, and pressure ratings of flanges and blinds. The code also outlines pressure design criteria for components such as flanges, blanks, and blinds, ensuring they can withstand both internal and external pressures. It addresses stress analysis, material selection, and fabrication quality to guarantee safe operation across different temperature and pressure ranges.

ASME B31.1 – Power Piping

ASME B31.1 applies to power piping systems used in electric generation stations, industrial plants, and district heating systems. The code sets basic rules for designing, selecting materials, fabricating, inspecting, and maintaining power and service piping. In power piping systems, spectacle and line blinds are critical for ensuring isolation during maintenance, preventing accidental flow or contamination. ASME B31.1 mandates that these components comply with the system’s pressure and temperature ratings and that they are correctly installed and maintained to preserve system integrity and safety.

General ASME Requirements for Blinds (Spectacle and Line Blinds)

Definition and Function

• Spectacle Blinds: A solid plate and an open ring joined by a small metal section, making it easy to switch between open and closed states without removing the blind from the system.
• Line Blinds: Solid plates used to isolate a section of pipe or equipment entirely, typically inserted between flanges to provide positive isolation.

Material and Construction

ASME standards require that blinds be fabricated from materials compatible with the piping system, capable of withstanding the design pressure and temperature. Material traceability and testing per ASME standards ensure the integrity of these components.

Pressure – Temperature Ratings

Blinds must conform to the pressure – temperature ratings established for flanges in the piping system, as defined by the relevant ASME B31 codes. This ensures that the blinds can safely withstand system conditions without failure.

Installation and Identification

Proper installation following ASME guidelines is critical. Spectacle blinds are typically marked to indicate their open or closed status for operational clarity. The code emphasizes correct flange alignment and bolt tightening to prevent leaks or mechanical failure during operation.

Testing and Inspection

After installation, blinds and their matching flanges should be inspected and pressure – tested according to ASME codes to ensure they are sealed correctly and mechanically sound. This includes non – destructive examination methods as appropriate.

Related ASME Codes and Considerations

ASME B16 Series

While B31 codes cover piping systems broadly, ASME B16 standards govern the dimensions, pressure ratings, and materials for flanges and fittings, including spectacle and line blinds as flange accessories. These standards ensure compatibility and interchangeability in piping components.

Safety and Operational Integrity

The ASME B31 codes, combined with ASME B16 standards, provide a comprehensive framework that ensures spectacle and line blinds are designed, fabricated, and maintained to prevent accidental flow, leakage, or contamination, protecting personnel and equipment.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the different types of blinds used in piping systems?

In piping systems, several types of blinds are used to isolate sections of pipelines for maintenance, repairs, or testing. The primary types include spectacle blinds, line blinds, and blind flanges.

Spectacle blinds, also known as figure-8 blinds, consist of two connected discs: one solid (blind) and the other with a central hole (spacer). This design allows for easy switching between open and closed positions by rotating the device, providing a clear visual indication of their orientation.

Line blinds can be further categorized into line blanks (skillet blinds or spades), paddle blinds, and paddle spacers. Line blanks are solid discs used to isolate sections of piping and can be part of a spectacle blind or used independently. Paddle blinds are similar to the solid half of a spectacle blind, often used temporarily and featuring a handle for easy insertion and removal. Paddle spacers resemble paddle blinds but have a central hole to maintain spacing between flanges when not in use.

Blind flanges are used to seal off the ends of piping systems. They come in various types, including weld neck blind flanges, which are strong and stable for high-pressure applications, and threaded blind flanges, suitable for quick connections and frequent maintenance.

These blinds ensure safety and operational efficiency across various industries, including oil and gas, petrochemical, and power generation. They are produced in accordance with standards such as ASME B16.48 for line blinds and ASME B16.5 for flanges, with material selection being critical for durability and preventing corrosion.

How do Spectacle Blinds function in piping systems?

Spectacle blinds function as a mechanical isolation device in piping systems, providing a simple and effective means to block or allow fluid flow. They are composed of a steel plate shaped like a pair of spectacles, with one side being a solid disc and the other a ring. When the solid disc is positioned within the pipe, it completely blocks the flow, ensuring safe isolation for maintenance or safety purposes. Conversely, when the ring side is positioned, fluid can flow freely through the pipe.

To operate a spectacle blind, the bolts on the pipe flanges are loosened, the blind is rotated to the desired position (either blocking or allowing flow), and the bolts are then re-tightened. This manual operation provides clear visual confirmation of the line’s status. Spectacle blinds are typically used for semi-permanent isolation rather than frequent operation, making them ideal for long-term maintenance or safety applications in industries like oil and gas, chemical processing, and power generation. Their design ensures reliability and compliance with standards such as ASME B16.48.

What are the applications of Line Blinds in industry?

Line blinds, also known as line blind valves, are crucial in various industries for ensuring complete isolation of pipeline sections. They are used extensively in tank storage and maritime industries to maintain controlled environments for liquids and gases. In refineries, steel, petrochemical, and chemical industries, line blinds are essential for operational safety, particularly in high-temperature and cryogenic conditions. Steam systems and industrial gas pipelines rely on line blinds to prevent leakage and ensure safety. In the oil and gas sector, they are vital for shutting off hydrocarbon liquids and gases, maintaining pipeline integrity. Additionally, in the pharmaceutical industry, line blinds prevent product contamination and ensure process safety. They are also critical in emergency situations for quickly isolating affected pipeline sections to prevent further damage or environmental pollution.

How do you maintain and ensure the safety of isolation devices?

Maintaining and ensuring the safety of isolation devices like spectacle blinds and line blinds in piping systems involves several critical practices. First, thorough risk assessments must be conducted before isolation procedures to identify potential hazards. Detailed isolation procedures and emergency response plans should be developed accordingly. Proper installation and verification of isolation devices are essential to ensure they are leak-tight and securely fastened, adhering to industry standards such as those from the American Petroleum Institute (API).

Regular maintenance is crucial, including inspections for corrosion and wear, and checking the integrity of flanges and bolts. Training personnel is also important; they must be qualified to perform isolation tasks safely and effectively. Developing and practicing emergency response plans will prepare the team for incidents like leaks or equipment failures.

Compliance with safety regulations, such as OSHA lockout/tagout procedures, is necessary to maintain high safety standards. Utilizing advanced isolation technologies, like Tecno Plugs, can enhance safety by providing double block and bleed capabilities without invasive procedures, thus reducing downtime and environmental impact. These practices ensure that isolation devices function properly and maintain a safe environment for maintenance and repair work.

What are the cost implications of different blind options?

When considering the cost implications of different blind options in piping systems, it’s essential to compare spectacle blinds and line blinds based on several factors.

Spectacle blinds, or figure-8 blinds, typically have a higher initial cost due to their integrated design and manufacturing complexity. They are often made from durable materials like carbon steel or stainless steel, which can withstand high pressures and temperatures. However, their ability to rotate in place between open and closed positions without full removal reduces labor and maintenance costs. This feature minimizes system downtime during maintenance, translating into operational cost savings over time.

On the other hand, line blinds, which include spades, paddles, and ring spacers, may have a lower initial material cost as they are manufactured as separate components. However, their installation and maintenance are more labor-intensive, requiring flange separation and complete removal for operation. This results in higher labor costs and increased downtime compared to spectacle blinds. Additionally, handling large and heavy components can further escalate costs due to the need for specialized equipment and additional manpower.

What ASME standards apply to piping isolation devices?

ASME standards that apply to piping isolation devices, such as spectacle blinds and line blinds, include several key codes that ensure safety and compliance in design, installation, and operation.

1. ASME B31.1 and B31.3: These codes regulate the design and testing of pressure piping systems, specifying requirements for components like valves and fittings integral to isolation devices. ASME B31.3, for example, provides detailed requirements for piping components, ensuring they operate within specified pressure and temperature limits.

2. ASME B16.5 and B16.11: These standards cover specifications for flanges and fittings, which are essential for connecting isolation devices to piping systems. They detail the pressure and temperature ratings necessary for safe operation.

3. ASME B31.1 Appendix II: This section includes non-mandatory rules for pipe support, addressing considerations for piping flexibility and stress analysis, crucial for preventing damage or leakage when integrating isolation devices.

Compliance with these standards ensures that isolation devices such as spectacle blinds and line blinds are safely integrated into piping systems, maintaining operational integrity and safety during maintenance and repair activities.
