Understanding Weld Fusion Zone and Heat Affected Zone: A Comparative Guide

Imagine the intricate dance of molten metal and intense heat, creating the bonds that hold structures together. In the world of welding, understanding the weld fusion zone and the heat affected zone is crucial for anyone looking to master the craft. These two zones, though often discussed together, play distinct roles in the integrity and performance of welded joints.

In this guide, we’ll delve into the differences between the weld fusion zone and the heat affected zone, exploring how heat input affects their sizes and properties. By comparing these zones, we’ll uncover the secrets to achieving optimal weld quality and durability. Ready to uncover the mysteries of welding zones and elevate your skills? Let’s dive in.

Introduction to Welding Zones

Understanding Welding Zones

Welding is a technique used to join metals by melting and fusing them together. During welding, the heat generated affects the metal around the weld area, creating distinct zones that influence the overall properties and quality of the weld. Two primary zones of interest are the Weld Fusion Zone and the Heat Affected Zone (HAZ). Understanding these zones is essential for ensuring optimal weld quality and performance.

Weld Fusion Zone

The Weld Fusion Zone is where the actual fusion of metals occurs. In this zone, the base metals are melted and often mixed with filler materials to create a joint. This complete melting and subsequent solidification form a new, unified structure. The characteristics of the Weld Fusion Zone differ significantly from the base metal due to the melting and resolidification process.

The base metals and any filler material are entirely melted in this zone, and upon cooling, the molten material solidifies to form a new microstructure. Consequently, the mechanical properties, such as strength and toughness, can vary from those of the base metal due to changes in grain structure and composition.

Heat Affected Zone (HAZ)

The Heat Affected Zone is adjacent to the Weld Fusion Zone and experiences high temperatures during the welding process, but does not melt. Instead, the metal’s structure and grain size are altered due to thermal exposure. The extent and nature of these changes depend on several factors, including the base material and the welding process used.

Importance of Welding Zones

Understanding how welding affects different zones of metal is crucial for ensuring high-quality welds. The distinctions between the Weld Fusion Zone and the Heat Affected Zone are important for several reasons:

• Quality Control: Ensuring the integrity and quality of the weld requires careful management of both zones.
• Material Selection: Different materials respond differently to welding, influencing the properties of the Weld Fusion Zone and HAZ.
• Process Optimization: Selecting appropriate welding parameters can minimize adverse effects in the HAZ and enhance overall weld performance.

Comparative Overview

Structural Differences

The Weld Fusion Zone undergoes complete melting and solidification, resulting in a new microstructure. In contrast, the Heat Affected Zone experiences thermal effects without melting, leading to changes in the metal’s structure and grain size.

Property Changes

Similarly, the properties in the Weld Fusion Zone, such as strength and toughness, can vary significantly from the base metal. The Heat Affected Zone may exhibit reduced strength and increased susceptibility to defects.

Impact on Weld Quality

The Weld Fusion Zone directly impacts the strength and durability of the weld. Conversely, the Heat Affected Zone can be a weak point due to altered properties, influencing the overall performance of the weld. Understanding these welding zones and their characteristics is essential for optimizing welding processes and ensuring high-quality, durable welds. By controlling factors such as heat input and material selection, it is possible to manage the properties of both the Weld Fusion Zone and the Heat Affected Zone effectively.

Weld Fusion Zone

The Weld Fusion Zone (FZ) is where the actual joining of metals takes place through melting and solidification. This zone encompasses both the base metal and any filler material used, which melt together to form a cohesive weld bead. The fusion zone is distinct from the Heat Affected Zone (HAZ), which undergoes thermal changes without melting.

The primary characteristics of the Weld Fusion Zone include complete melting, solidification, and the formation of a new microstructure that differs from both the base metal and the HAZ.

The Weld Fusion Zone is vital to the integrity and performance of the welded joint because its mechanical properties, like tensile strength and toughness, determine the weld’s overall strength and durability. Proper management of this zone helps prevent common welding defects such as cracking, porosity, and incomplete fusion. Controlling the heat input during welding is essential to ensure a high-quality fusion zone with desirable microstructural characteristics.

The microstructure of the Weld Fusion Zone significantly affects the material properties of the weld. The fusion zone usually has a dendritic crystalline structure due to the way it solidifies from the molten state. Depending on the materials involved, the fusion zone can contain various metallic phases such as ferritic, austenitic, or martensitic phases in steels. The grain size in the fusion zone is influenced by the cooling rate; rapid cooling generally leads to finer grains, which can enhance the mechanical properties.

The fusion zone often has different mechanical properties compared to the base metal, which can include either increased or decreased tensile strength, depending on the welding process and materials used. The toughness of the fusion zone can vary, with some welds being more brittle due to rapid cooling and others maintaining good impact resistance. The chemical composition of the fusion zone, influenced by the filler material and base metal, affects its corrosion resistance.

The fusion zone can be further subdivided into specific regions based on thermal exposure and microstructural changes:

• Weld Metal Zone: This is the area where the filler metal has been deposited and solidified.
• Grain Growth Zone: Adjacent to the HAZ, this zone experiences grain growth due to thermal exposure.
• Grain Refinement Zone: Areas within the fusion zone where grain size is refined due to rapid cooling or other thermal effects.

Understanding these subdivisions helps in managing the welding process to achieve optimal weld quality.

Defects in the Weld Fusion Zone can compromise the integrity of the weld. Common defects include cracking, porosity, incomplete fusion, and micro-segregation. Proper welding techniques and heat management are essential to minimize these defects and ensure a strong, durable weld.

Effective heat control is crucial for maintaining the quality of the fusion zone, influenced by factors such as the welding process, parameters like travel speed and current, and the cooling rate. By optimizing these factors, welders can achieve a fusion zone with desirable microstructural and material properties, ensuring the overall quality and performance of the welded joint.

Heat Affected Zone (HAZ)

Definition and Characteristics

The Heat Affected Zone (HAZ) is the area next to the weld fusion zone that is exposed to high temperatures during welding but does not melt. This exposure leads to changes in the metal’s microstructure and properties.

• Characteristics: The HAZ’s characteristics are influenced by the type of base material, the welding process used, and the amount of heat input. It can exhibit changes in grain size, hardness, and mechanical properties.

Influence of Heat Input

The size and properties of the HAZ are directly affected by the heat input during the welding process.

• Thermal Diffusivity: Materials with high thermal diffusivity cool more quickly, resulting in a smaller HAZ. Conversely, materials with lower thermal diffusivity have a larger HAZ due to slower cooling rates.
• Heat Input: High heat input processes, like oxyfuel welding, tend to produce a larger HAZ, whereas concentrated heat input processes, such as laser beam and electron beam welding, create a smaller HAZ.
• Welding Techniques: Different welding techniques can vary in their impact on the HAZ. Techniques that concentrate heat more precisely generally result in a smaller HAZ.

Microstructure Changes and Material Properties

The thermal cycles experienced by the HAZ during welding lead to significant microstructural changes, which in turn affect the material properties.

• Microstructural Changes: The HAZ may experience grain growth, phase changes, and alterations in dislocation density. These changes can lead to variations in hardness and brittleness.
• Grain Growth: High temperatures can cause the grains in the metal to grow, reducing the toughness of the HAZ.
• Phase Changes: Depending on the material and the thermal cycle, new phases such as martensite or bainite may form, affecting the hardness and ductility.
• Mechanical Properties: Changes in the HAZ’s microstructure can affect its mechanical properties, such as hardness and toughness.
• Hardness: The HAZ can exhibit either increased or decreased hardness compared to the base metal, depending on the specific thermal cycles and material composition.
• Toughness: Changes in grain size and phase composition can affect the toughness, often making the HAZ more susceptible to brittle fracture.
• Susceptibility to Cracking: The HAZ is often more prone to cracking due to thermal stresses and microstructural changes, which can compromise the integrity of the weld.

Control and Management

Managing the HAZ is crucial for the performance and durability of welded joints, and involves controlling heat input, cooling rates, and selecting suitable welding techniques.

• Heat Input Control: By optimizing welding parameters such as current, voltage, and travel speed, it is possible to control the heat input and consequently the size and properties of the HAZ.
• Cooling Rates: The cooling rate can be managed by using preheating or post-weld heat treatment to reduce thermal gradients and minimize adverse effects.
• Welding Techniques: Selecting welding techniques that concentrate heat more precisely, such as laser or electron beam welding, can help reduce the size of the HAZ and improve weld quality.

Recent Developments and Considerations

Recent advancements in welding technology have focused on better understanding and managing the HAZ to improve weld quality and performance.

• Precision Welding Techniques: Techniques like laser and electron beam welding have been developed to provide more controlled heat input, resulting in a smaller HAZ and improved weld integrity.
• Material-Specific Studies: Ongoing research into the effects of welding on various materials, including carbon steels, stainless steels, and alloy steels, aims to optimize welding parameters for minimal HAZ impact.
• Advanced Cooling Methods: Innovations in cooling methods and heat treatment processes are being explored to better control the thermal cycles and reduce the negative impacts on the HAZ.

Fusion Welding

Fusion welding is a process where metals are joined by melting their edges and fusing them together. This technique is fundamental in various industrial applications, including construction, manufacturing, and aerospace. Fusion welding creates a homogeneous joint by melting both the base metals and any filler material, resulting in a solidified weld bead.

Types of Fusion Welding Processes

Fusion welding encompasses several distinct methods, each with unique characteristics and applications:

Oxy-Fuel Welding (Oxyacetylene Welding)

Oxy-fuel welding uses a flame from burning oxygen and acetylene gas. It’s great for welding thin materials and detailed work because of its precise heat control.

Electric Arc Welding Processes

Electric arc welding processes are popular in many industries for their efficiency and versatility. Key types include:

• Metal Inert Gas (MIG) Welding (GMAW): MIG welding uses a consumable wire electrode and inert gas. This process is favored for its high production rates and ease of use, making it suitable for large-scale manufacturing.
• Tungsten Inert Gas (TIG) Welding (GTAW): TIG welding employs a non-consumable tungsten electrode and inert gas. It is known for producing high-quality, clean welds, ideal for applications requiring precision, such as aerospace and automotive industries.
• Plasma Arc Welding (PAW): Plasma arc welding creates deep penetration welds and is suitable for industrial applications where robustness and reliability are critical.
• Submerged Arc Welding (SAW): This method involves a continuously fed electrode and a blanket of granular flux. SAW is used for welding thick metal sections with minimal spatter, providing high-quality welds.
• Flux Cored Arc Welding (FCAW): Similar to MIG welding but uses a flux-cored wire for additional shielding. FCAW is advantageous for outdoor applications where wind may disperse shielding gases.

Role in Creating Weld Fusion Zone and Heat Affected Zone

Fusion welding plays a crucial role in forming the Weld Fusion Zone (WFZ) and the Heat Affected Zone (HAZ):

The Weld Fusion Zone (WFZ) is where the base metal and filler material melt and fuse, undergoing significant changes that affect the weld’s properties. Adjacent to it, the Heat Affected Zone (HAZ) experiences high temperatures without melting, altering the metal’s microstructure and properties.

Comparative Analysis with Other Welding Processes

Fusion welding is often compared to resistance and solid-state welding. Resistance welding joins metals through pressure and electrical current, without melting. Solid-state welding, like friction welding, joins metals without melting by using mechanical forces and friction-generated heat, preserving the base material’s properties better but may not suit all applications.

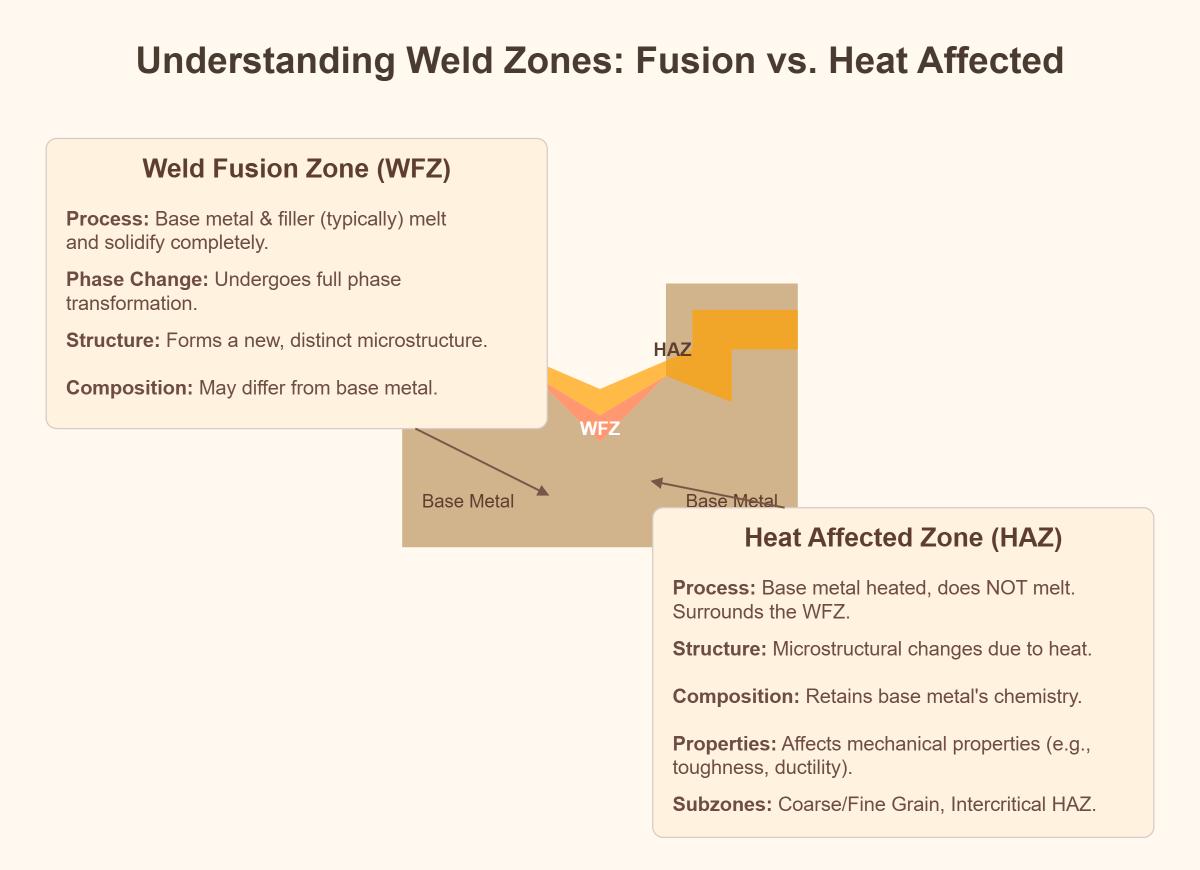

Comparative Analysis: Weld Fusion Zone vs. Heat Affected Zone

Definition and Formation

Weld Fusion Zone

The Weld Fusion Zone (WFZ) is where the base metal melts and solidifies during welding, creating the weld bead or seam. This zone experiences complete melting and re-solidification, resulting in a new microstructure distinct from the original base metal.

Heat Affected Zone (HAZ)

The Heat Affected Zone (HAZ) surrounds the Weld Fusion Zone and is subjected to high temperatures during welding, but it does not melt. Instead, the metal in this zone undergoes changes in microstructure and properties due to thermal exposure.

Key Differences

Microstructure Changes

• Weld Fusion Zone: Experiences complete melting and re-solidification, forming a new microstructure that can include various metallic phases, such as ferritic, austenitic, or martensitic phases in steels. The microstructure is typically dendritic due to the way the metal solidifies from the molten state.
• Heat Affected Zone: Undergoes partial microstructural changes, such as grain coarsening or refinement, depending on the material and welding conditions. These changes occur due to thermal cycling without complete melting, leading to variations in grain size and phase composition.

Property Alterations

• Weld Fusion Zone: The properties of the weld metal in the WFZ can be similar to or different from the base metal, depending on the filler material used and the welding process. This zone can exhibit changes in tensile strength, toughness, and corrosion resistance due to the new microstructure formed during solidification.
• Heat Affected Zone: The properties of the HAZ are altered due to the thermal cycles experienced during welding. This zone can suffer from reduced mechanical properties, such as decreased ductility and increased brittleness, making it more susceptible to defects like cracking and embrittlement.

Formation Process

• Weld Fusion Zone: Forms through the melting and solidification of metals.
• Heat Affected Zone: Changes due to heat exposure without melting.

Significance in Welding

• Weld Fusion Zone: The WFZ is crucial for the structural integrity of the weld, determining the weld’s strength and durability. The properties of this zone can be controlled by selecting appropriate filler materials and optimizing welding conditions. Ensuring a high-quality WFZ is essential to prevent common welding defects such as porosity, incomplete fusion, and cracking.
• Heat Affected Zone: The HAZ often represents a weak link in welded joints because of its altered mechanical properties. Managing the HAZ involves optimizing welding parameters to minimize its width and mitigate adverse effects. Techniques such as preheating, post-weld heat treatment, and selecting welding methods with concentrated heat input can help control the size and properties of the HAZ, enhancing the overall quality of the weld.

Effects of Heat Input on Welding Zones

Relationship Between Heat Input and HAZ Size

Heat input during welding affects how much the base metal heats up, which in turn influences the HAZ’s width and microstructural changes.

Higher Heat Input

• Larger HAZ: Higher heat input creates a larger HAZ because the heat spreads further into the base metal, causing more noticeable microstructural changes like grain growth and phase transformations.
• Reduced Toughness: A larger HAZ may experience reduced toughness and increased susceptibility to cracks and other defects due to the extensive thermal exposure and resultant microstructural changes.
• Thermal Stresses: Higher heat input can introduce significant thermal stresses, potentially leading to warping and distortion of the welded components.

Lower Heat Input

• Smaller HAZ: Lower heat input usually results in a smaller HAZ, reducing microstructural changes and better preserving the base metal’s properties.
• Weld Strength: While a smaller HAZ can reduce the risk of defects, it may also compromise weld strength if not properly optimized. Ensuring adequate fusion and penetration is crucial when using lower heat input.

Techniques to Control Heat Input

Effective management of heat input is essential to control the size and properties of the HAZ and achieve high-quality welds. Several techniques and parameters can be adjusted to optimize heat input during welding.

Welding Parameters

• Travel Speed: Increasing the travel speed of the welding torch reduces the heat input per unit length, leading to a smaller HAZ. Conversely, slower travel speeds increase heat input and expand the HAZ.
• Arc Length: Shorter arc lengths concentrate the heat input and reduce the HAZ size, while longer arcs distribute heat over a larger area, enlarging the HAZ.
• Current and Voltage: Lowering the welding current and voltage decreases the heat input, resulting in a smaller HAZ. However, it is important to balance these settings to ensure proper fusion and weld integrity.

Preheating and Post-Weld Heat Treatment

• Preheating: Preheating the base metal before welding reduces the thermal gradient and can help control the HAZ size. It also minimizes thermal stresses and the risk of cracking.
• Post-Weld Heat Treatment: Post-weld heat treatment relieves residual stresses and refines the HAZ microstructure, enhancing the weld’s mechanical properties and durability.

Best Practices for Optimal Weld Quality

Implementing best practices for controlling heat input is crucial for achieving optimal weld quality and performance. Here are some key recommendations:

Selection of Welding Process

• TIG Welding: Tungsten Inert Gas (TIG) welding is known for its precise heat control and low heat input, making it suitable for applications requiring minimal HAZ, such as thin materials and sensitive alloys.
• MIG/MAG Welding: Metal Inert Gas (MIG) and Metal Active Gas (MAG) welding offer versatility and can be adjusted to control heat input effectively. These processes are ideal for a wide range of metals and thicknesses.
• Shielded Metal Arc Welding (SMAW): This process typically involves higher heat input and is used for thicker materials and outdoor conditions. Careful parameter optimization is necessary to manage the HAZ size.

Optimized Welding Techniques

• Stringer Beads vs. Weaving: Using stringer beads instead of weaving helps concentrate heat input and reduce HAZ size. Stringer beads offer better control over the weld pool and minimize heat exposure.
• Interpass Temperature Control: Monitoring and controlling the interpass temperature between successive weld passes can prevent excessive heat buildup and reduce the HAZ size.

Effective heat input management is essential for controlling the HAZ and ensuring high-quality, durable welds. By optimizing welding parameters, selecting appropriate processes, and employing techniques like preheating and post-weld heat treatment, welders can achieve desirable microstructural and material properties, enhancing the overall performance of welded joints.

Material Properties

Influence of Welding on Material Properties

Welding can significantly alter the material properties of metals because of the thermal cycles involved. These changes are most pronounced in the Weld Fusion Zone (WFZ) and the Heat-Affected Zone (HAZ).

Weld Fusion Zone (WFZ) Properties

In the Weld Fusion Zone, the metal completely melts and solidifies, creating a new microstructure. This zone often has properties distinct from the base metal due to these processes.

• Strength and Ductility: The WFZ typically has different strength and ductility compared to the base metal. The formation of new grain structures during solidification can enhance the strength and ductility of the weld. For instance, fine grains formed during rapid cooling can increase the tensile strength and toughness.
• Microstructure: The microstructure in the WFZ is usually dendritic due to the solidification process. The exact microstructure depends on the cooling rate and the composition of the weld metal and filler material. For example, in steel welding, the WFZ might exhibit a mix of ferritic, austenitic, or martensitic phases.
• Corrosion Resistance: The corrosion resistance of the WFZ can vary depending on the chemical composition of the filler material and the base metal. The introduction of alloying elements through filler material can enhance or reduce the corrosion resistance of the weld.

Heat-Affected Zone (HAZ) Properties

The Heat-Affected Zone does not melt but undergoes significant changes due to the heat from the welding process. These changes can impact the mechanical and physical properties of the material.

• Hardness and Toughness: The HAZ often shows variations in hardness and toughness. Areas within the HAZ that experience high temperatures may undergo grain growth, which can reduce toughness and increase brittleness. Conversely, regions that experience lower temperatures might exhibit finer grains, leading to improved toughness.
• Grain Structure: The grain structure in the HAZ varies from coarse near the WFZ to fine further away. Coarse grains can reduce mechanical properties, while fine grains can improve strength and toughness.
• Susceptibility to Cracking: The HAZ is particularly susceptible to various forms of cracking due to thermal stresses and changes in microstructure. For example, high-carbon steels may form martensite in the HAZ, increasing the risk of cracking.

Comparative Analysis of Material Properties

Strength and Ductility

• Weld Fusion Zone: Generally exhibits higher strength and ductility due to new grain structures formed during solidification.
• Heat-Affected Zone: Can show reduced strength and increased brittleness, particularly in regions with coarse grains.

Microstructure

• Weld Fusion Zone: New dendritic microstructures with potential phase changes depending on the material and cooling rates.
• Heat-Affected Zone: Altered existing grain structures with varying grain sizes and potential phase transformations.

Corrosion Resistance

• Weld Fusion Zone: Influenced by the filler material’s composition, which can either enhance or degrade corrosion resistance.
• Heat-Affected Zone: May exhibit different corrosion behavior due to changes in microstructure and the presence of heat-affected elements.

Techniques to Preserve Material Integrity

Several techniques can help preserve the material properties in both the WFZ and HAZ:

• Optimized Heat Input: Controlling the heat input during welding can minimize adverse effects. Techniques such as pulsed welding or using low heat input processes like TIG welding can help manage the thermal exposure.
• Preheating and Post-Weld Heat Treatment: Preheating the base metal can reduce thermal gradients, while post-weld heat treatment can relieve residual stresses and refine the microstructure in the HAZ.
• Filler Material Selection: Selecting the right filler materials that match or enhance the base metal can significantly improve the weld’s mechanical properties and corrosion resistance.

By understanding and managing the material properties in the WFZ and HAZ, welders can optimize the welding process to achieve high-quality, durable welds suitable for various industrial applications.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the differences between the weld fusion zone and the heat affected zone?

The weld fusion zone and the heat affected zone (HAZ) are two distinct areas in welding, each with unique characteristics and roles. The weld fusion zone is the region where the base metal and filler material melt and solidify, forming a new microstructure. This zone undergoes a complete phase change, resulting in a distinct microstructure that may differ from the base metal. The weld fusion zone typically contains filler material, except in autogenous welding, leading to potential differences in chemical composition compared to the base metal.

In contrast, the heat affected zone (HAZ) surrounds the weld fusion zone and experiences significant thermal effects without melting. The HAZ consists solely of the base material, retaining its chemical composition but undergoing microstructural changes due to the heat generated during welding. These changes can affect mechanical properties such as toughness and ductility. The HAZ can be further divided into subzones, including coarse grain HAZ, fine grain HAZ, and intercritical or subcritical HAZ, each characterized by different thermal histories and microstructural transformations.

How does the heat input affect the size of the HAZ?

Heat input directly affects the size of the Heat Affected Zone (HAZ) in welding. Higher heat input results in greater energy delivered to the base material, causing slower cooling rates. This slower cooling allows the heat to penetrate further into the base metal, expanding the width of the HAZ. Conversely, lower heat input leads to faster cooling and a smaller HAZ because the heat does not diffuse as widely before dissipating.

The formula for calculating heat input is:

Heat Input (kJ/mm)=(Voltage×Current×60)/(1000×Travel Speed)

Thus, increasing voltage or current, or decreasing travel speed, raises the heat input.

Additionally, the microstructure within the HAZ is influenced by heat input. Higher heat input can cause grain coarsening due to prolonged exposure to elevated temperatures, reducing toughness. Phase transformations are also affected; for instance, rapid cooling from low heat input can form hard but brittle martensite in steels, whereas slower cooling from high heat input may produce softer, tougher microstructures but risk grain coarsening.

What are the material property changes in the weld fusion zone?

The weld fusion zone (FZ) is the area in a welded joint where the base metals have melted and solidified. This zone experiences significant material property changes due to the intense thermal cycle it undergoes. The primary change is the complete melting and resolidification of the metal, leading to a newly formed microstructure. During this process, a crystalline structure is created, which can vary depending on factors such as heat input, cooling rate, and alloy composition. Improper heat control can lead to the formation of undesirable phases like brittle martensite or coarse grains, which can weaken the weld.

Micro-segregation can occur during solidification, causing uneven distribution of alloying elements and potentially leading to localized weaknesses or brittleness. Additionally, phase changes, such as the development of various iron phases in steels, can influence the fusion zone’s hardness, toughness, and ductility.

Mechanically, the fusion zone typically exhibits higher hardness due to rapid cooling and the formation of hard phases. However, toughness and ductility may be reduced if coarse grains or brittle phases form. Residual stresses are also common due to the intense thermal gradients, which can affect fatigue life and susceptibility to cracking. Proper control of welding parameters, such as heat input, travel speed, and shielding gas, is essential to optimize the properties of the fusion zone and avoid defects that could compromise the welded joint’s integrity.

How can one minimize the adverse effects on the heat affected zone?

To minimize the adverse effects on the Heat Affected Zone (HAZ), several strategies can be employed:

1. Control Heat Input: Reducing the heat input during welding helps to limit the size of the HAZ and prevents excessive changes to the base metal. Adjusting welding parameters such as current, voltage, and travel speed, and using low-heat input methods like Tungsten Inert Gas (TIG) or laser welding, can be effective.
2. Preheating the Base Metal: Preheating slows down the cooling rate, reducing thermal stresses and the likelihood of cracking. This helps to manage the thermal cycle and can enhance the toughness of the welded area.
3. Post-Weld Heat Treatment (PWHT): PWHT can relieve residual stresses, reduce hardness, and improve toughness by reheating the weld area. This treatment is crucial for managing the microstructure and properties of the HAZ, though it may be costly and time-consuming.
4. Optimizing Welding Speed and Parameters: Faster welding speeds can help reduce heat input and narrow the HAZ, but must be balanced with achieving proper penetration and weld quality. Optimizing amperage and voltage settings is essential.
5. Using Advanced Filler Materials: Selecting filler metals that are compatible with the base material helps prevent issues like cracking and ensures that the weld area maintains its mechanical properties and resistance to corrosion.
6. Managing Cooling Rates: Controlling the cooling rate is vital for achieving a desired microstructure in the HAZ. Techniques such as using insulating blankets or controlled cooling methods can help manage thermal stresses and avoid undesirable material changes.

By implementing these strategies, one can effectively minimize the adverse effects on the HAZ, ensuring better weld quality and performance.

What are the best welding practices to ensure high-quality welds?

Ensuring high-quality welds involves a combination of selecting appropriate welding processes, maintaining equipment, and adhering to best practices.

First, choosing the right welding process is crucial. TIG welding (GTAW) is known for its precision and control, making it ideal for high-quality welds, especially in thin metals. MIG welding (GMAW) is suitable for thicker metals and offers faster speeds, although it may produce more spatter. Shielded Metal Arc Welding (SMAW) is versatile but requires skilled operators to avoid defects.

Proper equipment maintenance is essential. Ensure all tools are calibrated and in good condition. Using the correct shielding gas prevents atmospheric contamination, particularly in TIG and MIG welding.

Material preparation is vital for preventing defects. Clean both base metal and filler material thoroughly to avoid porosity and inclusions. Preheating the metal can reduce thermal stress.

Consistent welding techniques are important for uniform penetration and minimal defects. Adjust welding parameters based on material type and thickness to optimize results.

Safety protocols must be followed, including wearing PPE and ensuring adequate ventilation to avoid inhaling fumes.

By adhering to these practices, welders can achieve high-quality, durable welds.

How do different welding processes compare in terms of heat input and affected zones?

Different welding processes vary in terms of heat input and the size of the Heat Affected Zone (HAZ), impacting the weld quality and material properties. Shielded Metal Arc Welding (SMAW) and Flux-Cored Arc Welding (FCAW) typically produce higher heat input due to the nature of their electrodes and flux, resulting in larger HAZs. This larger HAZ can lead to significant changes in the microstructure and mechanical properties of the base metal, potentially causing weaknesses near the weld. Oxyacetylene welding, with its high heat output and broad flame width, creates the widest HAZ, increasing the risk of distortion and weakening.

Conversely, Gas Metal Arc Welding (GMAW/MIG) and Gas Tungsten Arc Welding (GTAW/TIG) generally deliver lower heat input. MIG’s thinner electrode diameter and TIG’s precise control contribute to smaller HAZs, minimizing alterations to the base metal microstructure and preserving its mechanical properties. Plasma cutting and laser cutting, while primarily used for cutting, exhibit similar thermal considerations. Plasma cutting produces an intermediate-sized HAZ, while laser cutting generates a very small HAZ due to highly localized heat input.
