Vertical Milling Machine: Advantages, Disadvantages, and Comparisons

Have you ever wondered why vertical milling machines are a staple in manufacturing and engineering workshops around the world? These versatile machines are renowned for their precision and adaptability, but they come with their own set of pros and cons. In this article, we will delve into the specifics of vertical milling machines, exploring their key advantages and disadvantages, and comparing them to their horizontal counterparts. We’ll also highlight their various applications, particularly in CNC machining and precision engineering. By the end, you’ll have a comprehensive understanding of where vertical milling machines shine and where they may fall short. Ready to uncover the details? Let’s get started.

Understanding Vertical Milling Machines

Definition and Basic Operation of Vertical Milling Machines

A vertical milling machine uses a rotating cutting tool to remove material from a workpiece. The spindle of a vertical milling machine is oriented vertically, which means the cutting tool moves vertically along the z-axis. The workpiece is typically fixed to a table that can move in the horizontal directions (x and y axes). This setup allows the operator to perform various milling operations such as drilling, tapping, and slotting with precision.

Key Components and Features

Spindle

The spindle, the heart of the vertical milling machine, holds and drives the cutting tool at various speeds for cutting operations. The spindle is capable of moving up and down along the z-axis, allowing for depth control during machining.

Table

The table is where the workpiece is secured. It can move left and right (x-axis) and back and forth (y-axis), providing precise positioning for milling operations. The table’s movements are typically controlled manually or through computer numerical control (CNC) systems.

Cutting Tools

Vertical milling machines use a variety of cutting tools, including end mills, face mills, and drill bits. These tools come in different shapes and sizes to perform specific tasks such as cutting slots, grooves, and holes.

Control Systems

Modern vertical milling machines often use CNC technology for automated and precise machining. CNC systems control the spindle and table movements with pre-programmed software, enabling complex tasks with minimal human intervention.

Basic Operation

Operating a vertical milling machine involves these steps:

1. Setup: Secure the workpiece to the table using clamps or fixtures. Install the appropriate cutting tool in the spindle.
2. Programming: Input the machining program into the control system if using a CNC machine. For manual machines, set the desired speeds and feeds.
3. Machining: Rotate the spindle to drive the cutting tool, which moves vertically to cut the material. Move the table horizontally to position the workpiece accurately under the cutting tool.
4. Inspection: Inspect the workpiece for accuracy and quality after machining to ensure it meets the required specifications.

Comparative Aspects

Precision and Versatility

Vertical milling machines are renowned for their precision and versatility. They can perform a wide range of operations, including drilling, tapping, and boring, making them suitable for detailed and intricate work.

Cost and Maintenance

Vertical milling machines are generally more cost-effective and easier to maintain than horizontal machines. Their simple design makes them popular for small to medium-sized manufacturing operations.

Space Requirements

Vertical milling machines typically have a smaller footprint compared to horizontal machines, making them more suitable for workshops with limited space. This compact design does not compromise their functionality, as they can still perform various milling tasks effectively.

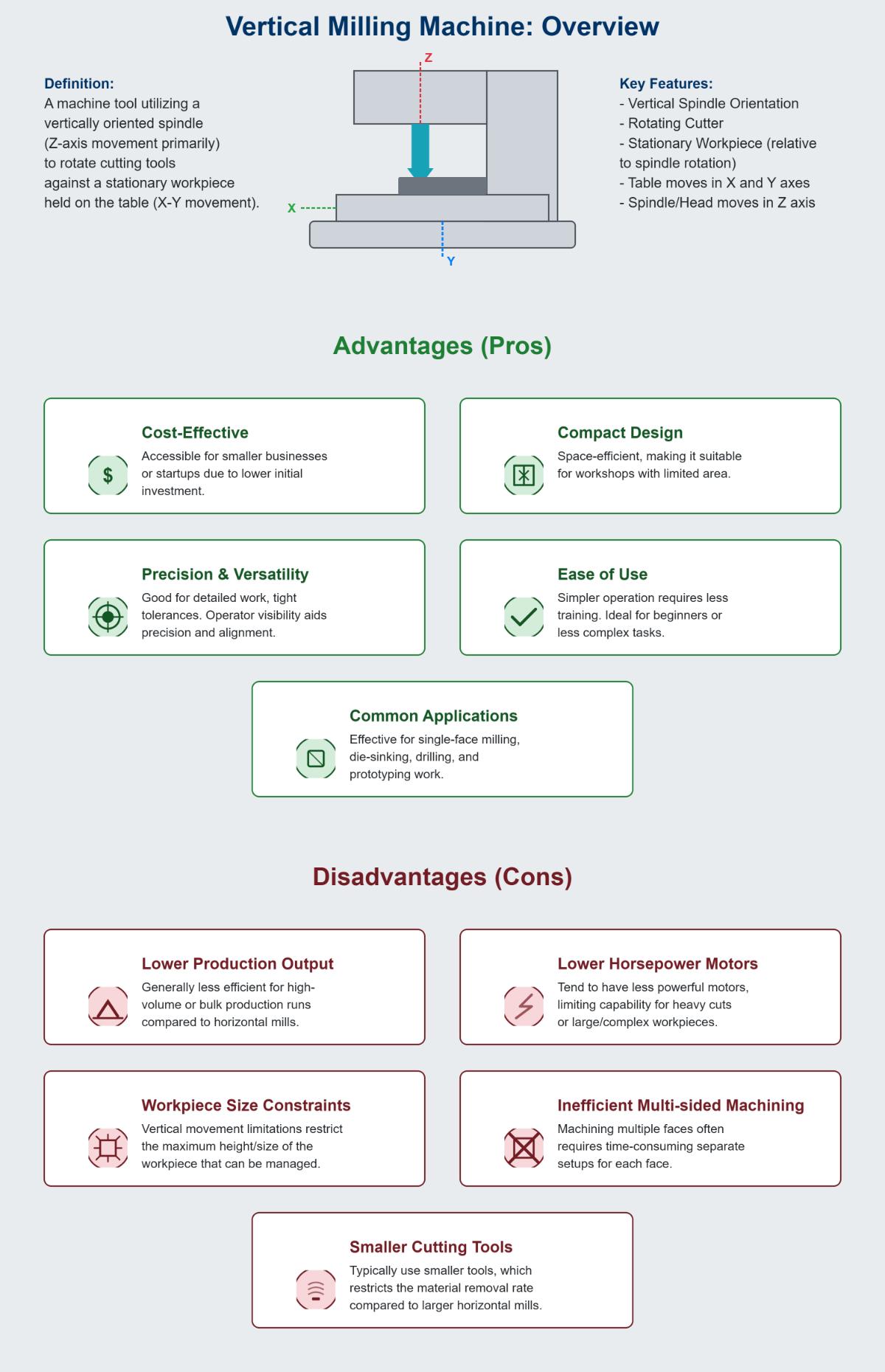

Advantages and Disadvantages of Vertical Milling Machines

Advantages of Vertical Milling Machines

Vertical milling machines offer several benefits that make them a popular choice in various industries.

Cost-Effectiveness

Vertical milling machines typically cost less than horizontal milling machines. This cost-effectiveness, which includes both the initial purchase price and ongoing maintenance costs, makes them accessible to smaller enterprises and workshops with limited budgets.

Ease of Use

Vertical mills are user-friendly and simple to operate, thanks to advancements in automated CNC technology. Operators can quickly learn to use these machines, contributing to their widespread adoption. The ease of use also reduces the learning curve for new machinists, enhancing productivity.

Detailing and Precision

One of the standout features of vertical milling machines is their ability to achieve high levels of precision. They excel at milling fine details with tight tolerances. This precision makes them ideal for projects that require meticulous detailing, such as components for aerospace and medical devices.

Smaller Footprint

Vertical milling machines have a more compact design compared to horizontal milling machines. This smaller footprint is beneficial for workshops with limited space. Despite their compact size, they do not compromise on functionality and can perform a wide range of milling tasks effectively.

Wide Availability of Skilled Operators

Due to their widespread use, there is a larger pool of qualified machinists familiar with operating vertical milling machines. This availability of skilled operators can be advantageous for companies looking to hire experienced personnel.

Disadvantages of Vertical Milling Machines

While vertical milling machines have numerous advantages, they also come with certain limitations.

Power and Handling Heavy Materials

Vertical mills often have lower horsepower motors compared to horizontal milling machines. This can limit their ability to handle heavy or large materials effectively. Lifting and lowering heavy workpieces can be challenging, which may restrict their use in certain applications.

Output Rate

Vertical milling machines generally produce work at a slower rate than horizontal milling machines. This slower production speed can be a drawback for large projects that require high-volume production. Companies needing fast turnaround times may find vertical mills less efficient for their needs.

Complexity and Quantity

Vertical milling machines are not ideally suited for producing large quantities or handling complex geometries. They are best for single-face milling tasks and may struggle with projects requiring multi-face machining or intricate designs. Horizontal milling machines, in contrast, offer better versatility for complex projects.

Limited Workpiece Orientation

Vertical milling machines have limitations in workpiece orientation. They cannot mill both sides of a component without additional work-holding setups. This restriction can limit their versatility in certain applications, where multiple sides of a workpiece need milling.

Comparing Vertical and Horizontal Milling Machines

Definition and Operation of Horizontal Milling Machines

A horizontal milling machine is a type of milling machine where the spindle is oriented horizontally. This orientation allows the cutting tool to move sideways, making it ideal for machining larger and heavier workpieces. The table on a horizontal milling machine can move in multiple axes (x, y, and sometimes z), providing flexibility in machining complex parts.

Spindle and Tool Movement

In horizontal milling machines, the spindle is mounted horizontally, which allows tools to cut along the side of the workpiece. This setup is ideal for cutting grooves, slots, and removing large amounts of material. The horizontal orientation also enables better chip evacuation, enhancing machining efficiency.

Comparative Analysis: Vertical vs. Horizontal Milling Machines

Spindle Orientation and Tool Movement

• Vertical Milling Machines: The spindle is vertically aligned, making the tools move up and down. This setup is ideal for detailed and precision work, often used in small-scale production and custom machining.
• Horizontal Milling Machines: The spindle is horizontally aligned, allowing tools to move sideways. This configuration is better suited for heavy material removal and high-volume production.

Tooling and Specialization

• Vertical Milling Machines: Typically use longer and thinner tools, which are specialized for detailed work. This makes them perfect for industries like tool and die making, prototyping, and operations requiring tight tolerances and intricate details.
• Horizontal Milling Machines: Utilize shorter and thicker tools, which are more robust and cost-effective for large-scale production environments. They are versatile and can handle a variety of heavy-duty tasks.

Cost and Maintenance

• Vertical Milling Machines: Generally have a lower upfront cost and require less maintenance. This makes them more accessible to small businesses and custom manufacturers.
• Horizontal Milling Machines: Tend to be more expensive initially but offer long-term savings through high-speed production efficiency. Their robust design can handle more wear and tear, reducing maintenance frequency over time.

Key Differences in Applications, Efficiency, and Outcomes

Applications

• Vertical Milling Machines: Commonly used for precision tasks such as tool and die making, prototyping, research and development (R&D), and custom machining. They are also ideal for operations requiring tight tolerances and intricate details.
• Horizontal Milling Machines: Primarily used in industries like automotive manufacturing, aerospace engineering, and mass production environments. They excel at heavy material removal and large-scale production tasks.

Efficiency and Effectiveness

• Vertical Milling Machines: Offer greater precision and flexibility, making them effective for detailed and complex parts. However, they are slower at removing large volumes of material.
• Horizontal Milling Machines: Provide higher material removal rates and are more efficient for large-scale production. They are better suited for heavy-duty tasks due to their robust tooling and efficient chip removal capabilities.

Comparative Advantages and Disadvantages

Vertical Milling Machines

• Advantages: Cost-effective, easy to use, precise, smaller footprint, wide availability of skilled operators.
• Disadvantages: Limited power, slower output rate, less suited for complex geometries and high-volume production.

Horizontal Milling Machines

• Advantages: High-speed production, efficient chip removal, better for heavy and large materials, versatile tooling.
• Disadvantages: Higher initial cost, more complex operation and maintenance, larger footprint.

Applications of Vertical Milling Machines

Key Applications of Vertical Milling Machines

Vertical milling machines are integral to various industries due to their versatility, precision, and efficiency. These machines are used in numerous applications where detailed and intricate work is required.

Mold and Die Making

Vertical milling machines play a crucial role in mold and die-making. They are used to create complex shapes and contours in hardened materials, which are critical for producing molds and dies used in manufacturing processes. This application is prevalent in the automotive, aerospace, and medical device industries, where precision and accuracy are paramount.

Tool and Die Making

Vertical milling machines are vital in tool and die making, creating cutting tools, jigs, and fixtures essential for producing precise and repeatable parts in various manufacturing processes.

Prototyping and Custom Manufacturing

Vertical milling machines are perfect for prototyping and custom manufacturing. They allow for the production of prototypes and custom components quickly and accurately, which is crucial in rapid product development. This capability enables engineers and designers to test and refine their designs before full-scale production.

Automotive Industry

In the automotive industry, vertical milling machines are used to manufacture engine components, transmission parts, and other critical automotive parts. The precision offered by vertical mills ensures that these components meet stringent specifications and performance requirements.

Aerospace Industry

The aerospace industry relies on vertical milling machines to produce precise components such as turbine blades and structural parts for aircraft and spacecraft. Their ability to machine complex shapes with high accuracy makes vertical mills indispensable in aerospace, where safety and performance are critical.

General Manufacturing

Vertical milling machines are widely used in general manufacturing for producing a broad range of products. From small parts to large industrial components, these machines offer the flexibility and precision needed to handle various manufacturing tasks. Their ability to perform operations such as drilling, boring, and milling makes them versatile tools in any manufacturing setting.

Role in CNC Machining and Precision Engineering

Vertical milling machines have a significant role in CNC machining and precision engineering. Equipped with advanced CNC technology, these machines can perform highly accurate and complex machining tasks with minimal human intervention. This automation enhances productivity and ensures consistent quality in manufacturing processes.

Advanced CNC Machining Techniques

Modern vertical milling machines utilize advanced CNC machining techniques to achieve superior precision and efficiency. These techniques include:

• 3D Machining: Allows for the creation of complex three-dimensional shapes and surfaces.
• Multi-Axis Machining: Enables the machine to move the cutting tool along multiple axes, providing greater flexibility and precision.
• High-Speed Machining: Increases the speed of cutting operations, reducing production time while maintaining accuracy.

These advanced techniques make vertical milling machines ideal for high-precision applications in many industries.

Detailed Case Studies

Several case studies highlight the effectiveness of vertical milling machines in different applications:

• Medical Device Manufacturing: A company used vertical milling machines to produce intricate components for medical devices, achieving high precision and reliability.
• Aerospace Component Production: An aerospace manufacturer utilized vertical mills to create turbine blades with complex geometries, ensuring optimal performance and safety.
• Automotive Parts Fabrication: An automotive supplier employed vertical milling machines to manufacture transmission parts, meeting strict tolerances and quality standards.

These case studies demonstrate the versatility and capability of vertical milling machines in addressing diverse manufacturing challenges.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the pros and cons of using a vertical milling machine?

A vertical milling machine, as defined, is a machine tool that uses a vertically oriented spindle to hold and rotate cutting tools against a stationary workpiece.

Pros:
Vertical milling machines offer several advantages. They are cost-effective, making them accessible for smaller businesses or startups. Their compact design is space-efficient, suitable for workshops with limited area. They excel in precision and versatility, particularly for projects requiring detailed work and tight tolerances due to the operator’s direct visibility of the cutting process and easier workpiece alignment. Additionally, they are easier to operate and require less training, making them ideal for beginners or simpler tasks. Common applications include single-face milling, die-sinking, and prototyping.

Cons:
However, vertical milling machines also have drawbacks. They generally have lower production output, making them less efficient for high-volume or bulk projects. The motors tend to have lower horsepower, limiting their ability to handle heavy or complex workpieces. There are constraints on the size of the workpiece they can manage due to vertical movement limitations. They are inefficient for multi-sided machining, as each face requires a separate setup. Additionally, the smaller cutting tools used in vertical mills restrict material removal rates compared to horizontal mills.

How does a vertical milling machine compare to a horizontal milling machine?

Vertical milling machines and horizontal milling machines have distinct differences that cater to specific machining needs. A vertical milling machine features a vertically oriented spindle, which is ideal for detailed operations such as drilling and engraving. It uses long, cylindrical end mills for precise, shallow cuts, making it suitable for intricate parts and precision-focused tasks like tool and die making, aerospace prototyping, and R&D.

In contrast, a horizontal milling machine has a spindle that lies parallel to the worktable. This orientation allows for the use of shorter, thicker cutters capable of deep cuts and high material removal rates, making it efficient for heavy-duty tasks. Horizontal milling machines excel in large-scale part production and heavy industries, such as automotive and aerospace manufacturing, where high-volume output and robust performance are crucial.

While vertical mills are generally more affordable and easier to operate and maintain, horizontal mills offer better long-term ROI for mass production due to their speed and durability. Vertical mills are versatile and can handle 3-5 axis machining for complex geometries, whereas horizontal mills are favored for their efficiency in material removal and chip evacuation, which minimizes heat and tool wear.

What are the applications of vertical milling machines?

Vertical milling machines are versatile tools used across various industries due to their ability to create intricate shapes with high precision. They are crucial in mold and die making, producing complex shapes and contours in hardened materials for the automotive, aerospace, and medical sectors. Additionally, they play a significant role in tool and die making, creating cutting tools, jigs, fixtures, and other essential tooling components. These machines are also ideal for prototyping and custom manufacturing, offering precision and versatility for industries requiring rapid prototyping. In the automotive industry, vertical milling machines manufacture engine components and transmission parts with high precision. In aerospace, they produce turbine blades and structural parts critical for aircraft and spacecraft. Overall, vertical milling machines are highly valued for their efficiency, precision, and ability to handle a wide range of products, from small parts to large industrial components.

What advanced CNC machining techniques are used with vertical milling machines?

Advanced CNC machining techniques with vertical milling machines enhance their capabilities, precision, and efficiency. One notable technique is the use of pallet changers, which allow for continuous machining by handling loading and unloading operations externally, thus maximizing production time. Wireless probing is another advanced feature, enabling precise real-time measurement and adjustment, which reduces setup times and ensures accuracy in part dimensions.

Incorporating a 4th axis or even 5-axis capabilities greatly enhances the machine’s ability to perform complex operations without repositioning the workpiece, allowing for intricate geometries and detailed designs. Expanded tool changers facilitate rapid tool switching, minimizing downtime. High-speed spindles are ideal for operations requiring fast machining, while custom coolant systems optimize tool life and prevent overheating.

These techniques collectively offer high precision, reliability, and versatility, although they require a higher initial investment and specialized training to operate effectively.

How efficient and effective are vertical milling machines?

Vertical milling machines are highly efficient and effective for precision-driven, small-scale applications. Their operational versatility allows for various machining tasks, including face milling, drilling, tapping, and boring, without frequent tool changes. This makes them ideal for prototyping and small-batch production in industries like aerospace, automotive, and medical sectors. The vertical spindle design provides superior stability and precision, particularly beneficial for intricate geometries and detailed components.

However, vertical milling machines do have limitations. They are less suitable for high-volume manufacturing due to slower output rates compared to horizontal mills. Additionally, they face challenges with handling large or heavy parts because of limited vertical clearance and lower horsepower motors. Multi-face machining also requires multiple setups, increasing labor and error risks.

Recent advancements in CNC integration and spindle technology have further improved their efficiency, enhancing real-time monitoring and reducing idle time. Overall, vertical milling machines offer a balanced combination of precision, versatility, and space efficiency, making them a valuable asset for specific machining needs.

Can you provide case studies demonstrating the use of vertical milling machines?

Vertical milling machines are versatile tools widely used across various industries for their precision and efficiency. Several case studies demonstrate their effectiveness:

1. Sakurai Machinery: This company utilized vertical milling machines with large-diameter special cutters for the one-pass machining of transmission case surfaces. The result was precise machining of complex parts, significantly reducing production time and costs.
2. Franchino Mold & Engineering: By incorporating Makino F5 vertical milling machines, Franchino achieved high-speed and high-precision machining. This led to increased productivity and enhanced part quality, contributing to substantial business growth.
3. Journeyman Machine and Supply Co. Inc.: They employed the KVR 4020A vertical machining center to mill smaller parts efficiently. This 40-taper machine reduced cycle time by 30%, boosting competitiveness and productivity.
4. HG Grimme SysTech: Utilizing CNC vertical milling machines, including 5-axis rotary table milling machines, they processed materials such as CFRP, aluminum, and natural fibers. This versatility improved product quality and manufacturing efficiency.

These case studies illustrate the advantages of vertical milling machines in terms of flexibility, efficiency, and cost-effectiveness, highlighting their critical role in modern manufacturing and precision engineering.
