Welding Duplex to 316 Stainless Steel: Techniques and Material Properties

Imagine you’re tasked with creating a robust, corrosion-resistant structure that combines the best of two worlds—duplex stainless steel and 316 stainless steel. How do you ensure a seamless and strong weld between these two distinct materials? This intricate process requires not just any welding technique, but an understanding of the specific properties and challenges associated with each type of stainless steel. In this article, we’ll delve deep into the best welding practices for joining duplex to 316 stainless steel, exploring the nuances of techniques like GTAW (TIG welding), the critical role of filler metals, and solutions to common welding issues. We’ll also compare the material properties of duplex and 316 stainless steel, giving you the insights needed to make informed decisions for your projects. Ready to master the art of welding these two formidable materials? Let’s get started.

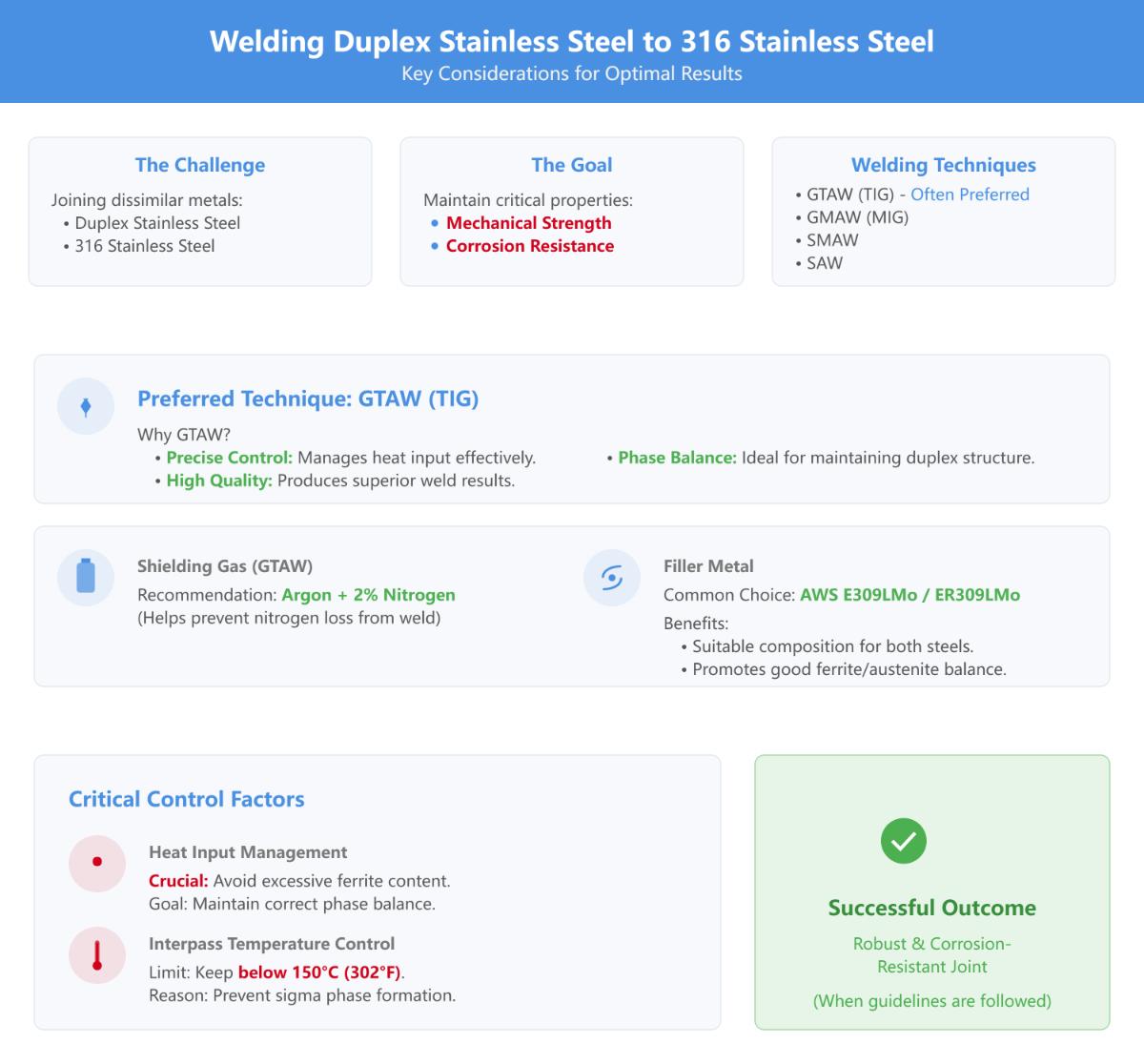

Welding Techniques for Duplex to 316 Stainless Steel

Material Properties

Understanding the material properties of duplex stainless steel and 316 stainless steel is crucial for successful welding.

Duplex stainless steel, such as grade 2205, features a dual-phase microstructure composed of both austenite and ferrite phases. This unique combination provides duplex stainless steel with high strength and excellent corrosion resistance, particularly in environments exposed to chlorides and other aggressive chemicals, while contributing to its good weldability. The balanced microstructure also supports its weldability, although careful control of welding parameters is necessary to maintain the phase balance.

316 stainless steel is an austenitic stainless steel known for its excellent corrosion resistance, especially in chloride-rich environments, making it ideal for marine and chemical processing applications. Its austenitic structure offers good toughness and ductility, making it relatively easy to weld compared to other stainless steels.

Welding Techniques

Shielded Metal Arc Welding (SMAW)

SMAW, also known as stick welding, is a versatile process suitable for both duplex and 316 stainless steels. When welding these materials, it is essential to use appropriate electrodes, such as AWS E309LMo, to ensure compatibility and maintain corrosion resistance.

Submerged Arc Welding (SAW)

SAW is an efficient process for welding thicker sections of duplex and 316 stainless steels. It provides deep penetration and high deposition rates. The use of flux and wire specifically designed for duplex stainless steel, such as AWS ER309LMo, is recommended to achieve optimal weld quality.

Gas Tungsten Arc Welding (GTAW)

GTAW, commonly known as TIG welding, is highly effective for welding duplex to 316 stainless steel due to its precision and control over heat input. This process is ideal for achieving high-quality welds with minimal defects. A backing gas, such as argon, should be used to protect the weld area from atmospheric contamination.

Key Considerations

Heat Input and Interpass Temperatures

Maintaining the correct heat input and interpass temperature is critical when welding duplex stainless steel to 316 stainless steel, as excessive heat can lead to the formation of detrimental phases, such as sigma phase, compromising the weld’s mechanical properties and corrosion resistance. It is recommended to keep interpass temperatures below 150°C (302°F) and use controlled heat input techniques to avoid overheating.

Filler Materials

The selection of filler materials plays a vital role in ensuring the compatibility and performance of the weld. Filler metals like AWS E309LMo and ER309LMo contain molybdenum, which matches the corrosion resistance properties of both duplex and 316 stainless steels. These fillers help maintain the integrity of the weld joint and prevent issues such as cracking or reduced corrosion resistance.

Joint Preparation and Shielding

Proper joint preparation is essential for achieving strong and defect-free welds. Edges should be machined rather than ground to avoid contamination and ensure uniformity. Additionally, using a suitable shielding gas, such as argon or an argon-helium mix, is crucial to protect the weld pool from atmospheric gases that can cause porosity and other defects.

By adhering to these guidelines and considerations, welders can achieve high-quality, durable welds when joining duplex stainless steel to 316 stainless steel.

GTAW (TIG Welding) Process

Gas Tungsten Arc Welding (GTAW), also known as Tungsten Inert Gas (TIG) welding, is a highly precise welding technique valued for its ability to produce high-quality welds, particularly when joining duplex stainless steel to 316 stainless steel. The process uses a non-consumable tungsten electrode to create the weld, with an inert shielding gas, like argon, protecting the weld area from atmospheric contamination.

GTAW is particularly suitable for welding thin sections of duplex and 316 stainless steels due to its precise control over heat input. This control is crucial for maintaining the integrity of the materials, as excessive heat can lead to the formation of detrimental phases in duplex stainless steel. For thicker materials, alternative methods like Gas Metal Arc Welding (GMAW) might be more appropriate due to their higher deposition rates.

For duplex stainless steel, a shielding gas mixture of 98% argon and 2% nitrogen is recommended to maintain the microstructure and enhance corrosion resistance. When using austenitic filler metals, pure argon is typically used as the shielding gas. Proper shielding gas flow rates must be maintained to prevent atmospheric contamination and ensure a clean weld environment.

Key parameters for setting up GTAW equipment include selecting the right tungsten electrode, maintaining proper shielding gas flow rate, and adjusting welding current and voltage based on material thickness.

GTAW produces high-quality welds with minimal defects and a high aesthetic finish. Its precise control over heat input preserves the material’s microstructure, preventing undesirable phases. Additionally, GTAW’s flexibility makes it suitable for both manual and automated welding processes.

1. Clean the workpieces thoroughly.
2. Prepare the joint based on material thickness.
3. Select the appropriate tungsten electrode.
4. Adjust welding parameters.
5. Start the arc with high-frequency initiation.
6. Maintain steady heat input and travel speed.
7. Add filler metal as needed.
8. Allow the weld to cool gradually and perform any necessary post-weld treatments.

Selecting the Right Filler Metal

Importance of Filler Metals in Welding

Choosing the right filler metal is essential for creating strong welds between duplex stainless steel and 316 stainless steel. The filler metal must provide the right balance of mechanical properties, corrosion resistance, and compatibility with both base metals. The choice of filler metal influences the overall performance of the welded joint, including its strength, durability, and resistance to environmental factors.

Properties of AWS E309LMo/ER309LMo Filler Metal

Chemical Composition

AWS E309LMo/ER309LMo filler metals are designed to bridge the compositional differences between duplex stainless steel and 316 stainless steel. They usually have 23-25% Chromium, 12-14% Nickel, and 2-3% Molybdenum. This balanced composition ensures compatibility with both duplex and 316 stainless steels, and molybdenum enhances resistance to pitting and crevice corrosion in chloride environments, maintaining weld integrity in harsh conditions.

Mechanical Properties

The mechanical properties of AWS E309LMo/ER309LMo are designed to provide high tensile strength, good ductility, and adequate toughness. These properties ensure that the welded joint can withstand mechanical stresses and deformation without cracking. The austenitic nature of the filler metal helps to absorb thermal expansion differences between the duplex and 316 stainless steels, reducing the risk of weld cracking.

How to Choose the Correct Filler Metal for Duplex and 316 Stainless Steels

Consider the Service Environment

When choosing a filler metal, consider the specific environment where the weld will be used. For applications exposed to chloride-rich environments, such as marine or chemical processing, AWS E309LMo/ER309LMo is preferred due to its enhanced corrosion resistance.

Match the Mechanical Properties

Ensuring that the filler metal provides mechanical properties that match or exceed those of the base metals is essential. AWS E309LMo/ER309LMo offers a good compromise between the higher strength of duplex stainless steel and the ductility of 316 stainless steel, making it suitable for a wide range of applications.

Mitigate Galvanic Corrosion

When welding dissimilar metals, the risk of galvanic corrosion must be considered. AWS E309LMo/ER309LMo helps mitigate this risk by providing a balanced composition that reduces the electrochemical potential differences between the duplex and 316 stainless steels.

Case Study: Practical Example of Filler Metal Selection

In a recent project involving the fabrication of a chemical processing unit, engineers were tasked with welding duplex stainless steel (2205) to 316 stainless steel. The unit was designed to operate in a highly corrosive environment with exposure to chlorides and high temperatures.

Problem Statement

The challenge was to select a filler metal that would provide both mechanical integrity and corrosion resistance. The welded joints needed to withstand thermal cycling and mechanical stresses without failing.

Solution

The engineers selected AWS E309LMo/ER309LMo filler metal for the following reasons:

• The balanced chemical composition provided the necessary corrosion resistance and mechanical properties.
• The austenitic structure of the filler metal matched the thermal expansion properties of 316 stainless steel, reducing the risk of weld cracking.
• The presence of molybdenum enhanced resistance to pitting corrosion, a critical factor in the chloride-rich environment.

Outcome

Using AWS E309LMo/ER309LMo filler metal led to high-quality welds with excellent strength and corrosion resistance. The joints performed reliably, proving the choice of filler metal was effective.

Common Welding Problems and Solutions

Common Welding Problems

Welding duplex stainless steels can lead to several issues, primarily due to their dual-phase structure of austenite and ferrite. These issues include phase imbalance, sigma phase formation, and hot cracking.

Phase Imbalance

Duplex stainless steels, with their dual-phase structure, can suffer from phase imbalance during welding. This imbalance is primarily caused by improper heat input, which can lead to excessive grain growth in the ferrite phase. As a result, the material’s toughness and corrosion resistance can be adversely affected. Maintaining controlled heat input within the recommended range, typically between 0.5 to 1.5 kJ/mm, is crucial. Techniques such as pulsed arc welding can help manage the thermal energy more effectively.

Sigma Phase Formation

Exposing duplex stainless steels to prolonged high temperatures during welding can lead to the formation of sigma and chi phases. These intermetallic phases can severely reduce the toughness and corrosion resistance of the weld. To prevent sigma phase formation, it is crucial to control the heat input and select appropriate filler materials that can withstand the welding conditions. Proper post-weld heat treatment can also help mitigate this problem.

Hot Cracking

Hot cracking, or solidification cracking, occurs due to thermal stresses and impurities at grain boundaries. This type of cracking can compromise the integrity of the weld. Reducing the risk of hot cracking involves proper joint design and managing heat input to distribute thermal stresses evenly. Additionally, using filler metals with a composition that matches the base metals can help reduce susceptibility to cracking.

Solutions and Techniques

Heat Management

Effective heat management is critical in welding duplex stainless steel to 316 stainless steel. Maintaining the recommended heat input levels and using controlled welding techniques, such as pulsed arc welding, can help prevent phase imbalance and the formation of detrimental intermetallic phases. Consistently monitoring and adjusting heat input during welding is essential for high-quality results.

Material Selection

Selecting the right filler materials is paramount when welding duplex stainless steel to 316 stainless steel. For instance, using electrodes such as 2209 or 309MoL can provide the necessary alloying elements to maintain the desired properties of both base metals. These fillers contain molybdenum and other elements, which enhance corrosion resistance and mechanical properties, ensuring the weld’s integrity.

Joint Design

Proper joint design is essential for achieving strong and defect-free welds. Duplex stainless steel typically requires a larger joint angle and root gap compared to austenitic stainless steels. This helps accommodate the differences in material properties and achieve the desired weld geometry. Ensuring proper joint preparation, such as machining the edges rather than grinding, can also prevent contamination and ensure uniformity.

Shielding Gas and Interpass Temperature

Using the appropriate shielding gas and controlling interpass temperatures are crucial for maintaining weld quality. For duplex stainless steels, a mixture of 98% argon and 2% nitrogen is recommended to preserve the microstructure and enhance corrosion resistance. For austenitic filler metals, pure argon is typically used. Maintaining proper shielding gas flow rates and interpass temperatures below 150°C (302°F) can prevent oxidation and other defects, ensuring a clean and consistent weld.

Material Properties Considerations

Duplex Stainless Steel

Duplex stainless steels are known for their high strength and excellent corrosion resistance, achieved through a balanced microstructure of austenite and ferrite. Proper welding techniques are necessary to maintain this balance and prevent the formation of undesirable phases that can compromise the material’s properties.

316L Stainless Steel

316L stainless steel is an austenitic grade known for its excellent corrosion resistance and formability. Its properties differ from those of duplex stainless steels, necessitating careful selection of filler materials and welding parameters to ensure compatibility and maintain the desired performance characteristics.

Material Properties Comparison: Duplex vs 316 Stainless Steel

Introduction to Duplex Stainless Steel

Duplex stainless steel is characterized by its unique microstructure, which consists of approximately equal parts of austenite and ferrite phases. This unique structure gives duplex stainless steel both high strength and excellent corrosion resistance. Common grades of duplex stainless steel, like 2205, contain 22% chromium, 5-6% nickel, and 3% molybdenum, which enhances resistance to pitting and crevice corrosion, making it ideal for harsh environments such as marine and chemical processing applications.

Mechanical Properties of Duplex Stainless Steel

Duplex stainless steels exhibit superior mechanical properties compared to many other stainless steel types. Their yield strength is typically twice that of austenitic stainless steels like 316, with values ranging from 450 to 600 MPa. This high strength allows for the design of thinner sections without compromising structural integrity, leading to cost savings and increased efficiency in applications requiring high load-bearing capacity.

Corrosion Resistance of Duplex Stainless Steel

The balanced microstructure of duplex stainless steel offers remarkable resistance to various forms of corrosion, including stress corrosion cracking, which is a common issue in chloride-rich environments. Chromium, nickel, and molybdenum further enhance its resistance to localized corrosion like pitting and crevice corrosion. This makes duplex stainless steel a preferred choice for applications exposed to aggressive chemical conditions.

Introduction to 316 Stainless Steel

316 stainless steel is an austenitic stainless steel known for its excellent corrosion resistance and good mechanical properties. It contains approximately 16% chromium, 10% nickel, and 2% molybdenum. Adding molybdenum boosts its resistance to chloride-induced pitting and crevice corrosion, making it suitable for marine and chemical environments.

Mechanical Properties of 316 Stainless Steel

316 stainless steel offers good mechanical properties, with a typical yield strength of around 200 MPa. It is known for its toughness and ductility, which facilitate ease of fabrication and welding. The material retains its strength and durability even at elevated temperatures, making it suitable for high-temperature applications.

Corrosion Resistance of 316 Stainless Steel

316 stainless steel is highly resistant to general corrosion and performs well in chloride environments. The molybdenum content helps protect against pitting and crevice corrosion, while the austenitic structure provides good resistance to stress corrosion cracking. This makes 316 stainless steel a versatile material for various applications, including marine and chemical processing.

Key Differences in Material Properties

Strength and Durability

Duplex stainless steel generally offers higher yield and tensile strengths compared to 316 stainless steel. This superior strength allows for thinner designs, which can lead to material savings and lighter structures. However, 316 stainless steel provides excellent toughness and ductility, making it easier to work with during fabrication and welding processes.

Corrosion Resistance

Both duplex and 316 stainless steels offer excellent corrosion resistance, but duplex stainless steel typically provides superior performance in aggressive environments. Duplex stainless steel’s resistance to stress corrosion cracking is notably better, making it ideal for applications involving chlorides and high stress. On the other hand, 316 stainless steel is highly resistant to pitting and crevice corrosion, making it a reliable choice for marine applications.

Cost Implications

While duplex stainless steel offers enhanced mechanical properties and corrosion resistance, it is generally more expensive than 316 stainless steel. The higher cost comes from the alloying elements and the complex manufacturing process needed to keep its balanced microstructure. However, the potential for thinner designs and longer service life can offset the initial higher costs in many applications.

Corrosion Resistance Strategies

Ensuring corrosion resistance is crucial when welding duplex stainless steel with 316 stainless steel. Both materials offer excellent resistance to various forms of corrosion, but their properties and behaviors during welding require specific strategies to maintain their performance.

Material Properties

Duplex Stainless Steels: These materials have a microstructure consisting of approximately equal parts of austenite and ferrite, providing a unique combination of strength and corrosion resistance. The presence of chromium, nickel, and molybdenum enhances their resistance to pitting and crevice corrosion.

316L Stainless Steel: This austenitic stainless steel is known for its high corrosion resistance, particularly in chloride environments. The alloying elements, including chromium, nickel, and molybdenum, contribute to its ability to withstand pitting and crevice corrosion.

Welding Techniques

Shielded Metal Arc Welding (SMAW) and Submerged Arc Welding (SAW)

When using SMAW for welding duplex steels, it is important to use basic-covered electrodes to ensure high toughness and deformation capacities. A short arc length should be maintained to avoid nitrogen pick-up and porosity, which can compromise corrosion resistance. SAW is suitable for welding thick plates and flat positions. This technique ensures full penetration and uniformity, which are crucial for maintaining the corrosion resistance of the weld. The use of appropriate flux and wire designed for duplex stainless steel is recommended.

Gas Tungsten Arc Welding (GTAW)

GTAW, or TIG welding, is often used for its precision and control, making it ideal for thinner joints and applications where aesthetics are important. It provides excellent control over heat input, which is essential for preventing the formation of detrimental phases in duplex stainless steels.

Filler Materials

When welding duplex to 316L stainless steel, use 2209 or 309MoL electrodes. These contain molybdenum, ensuring both materials maintain their corrosion resistance.

Corrosion Resistance Strategies

Phase Balance

To ensure corrosion resistance, it’s vital to keep a balance between ferritic and austenitic phases in duplex stainless steels. This can be done by controlling heat input and interpass temperatures during welding. Overheating might cause sigma phase formation, harming both mechanical properties and corrosion resistance.

Joint Design

The design of the weld joint plays a significant role in achieving full penetration and minimizing undiluted base metal in the weld. Machining the weld edge preparation rather than grinding helps achieve uniformity and reduces the risk of burn-through, ensuring a consistent and high-quality weld.

Material Selection

Select filler metals with the right amount of nickel and molybdenum to maintain weld corrosion resistance. These elements ensure the weld can resist pitting and crevice corrosion, especially in harsh chemical or chloride environments.

By focusing on these strategies, engineers and welders can ensure that the welded joints between duplex and 316 stainless steels maintain their corrosion resistance and structural integrity, even in demanding applications.

Standards Compliance

Overview of Welding Standards

Welding duplex stainless steel to 316 stainless steel requires following industry standards to ensure strong, durable welds. Adhering to these standards is crucial for achieving high-quality welds that meet mechanical and corrosion resistance requirements. Key standards include those from the American Society of Mechanical Engineers (ASME), the American Petroleum Institute (API), the American Society for Testing and Materials (ASTM), and the American Welding Society (AWS).

ASME Section IX outlines the requirements for welding procedure qualifications, including mockup testing for specific applications like tube-to-tubesheet joints. The standard mandates that test coupons must replicate production conditions, considering joint geometry, heat input, and other relevant factors. This ensures that the welding procedure is robust and capable of producing consistent, high-quality welds in actual production scenarios.

API RP 582/938-C and ASTM A923 provide guidelines for post-weld testing to verify the microstructure and corrosion resistance of welds. These standards emphasize the importance of maintaining a balanced ferrite-austenite microstructure in duplex stainless steel welds. Key requirements include achieving a target ferrite content of 35–55%, assessed using photomicrographs at various weld locations, and ensuring adequate toughness, particularly for applications involving low temperatures, with specific energy absorption criteria (e.g., >40 J at -46°C).

Welding Techniques and Process Selection

GTAW and GMAW are preferred for root passes due to their precise heat control, which prevents defects in duplex stainless steel. These processes help prevent excessive heat, which can lead to phase imbalance and other weld defects.

Shielded Metal Arc Welding (SMAW) is suitable for welding duplex stainless steel, particularly when using basic-coated electrodes like 2209. This technique involves using stringer beads with controlled bead width to maintain the desired microstructure and mechanical properties.

Submerged Arc Welding (SAW) is limited to flat positions but offers high deposition rates and deep penetration. Proper flux formulations must be matched to the duplex stainless steel grades to ensure optimal weld quality.

Heat Input Control

Controlling heat input is crucial to maintain the integrity of the welds. For duplex stainless steel, the recommended range is 0.5–2.5 kJ/mm, while for 316L stainless steel, it should be ≤1.5 kJ/mm. This helps avoid excessive ferritization in duplex stainless steel and minimizes carbide precipitation in 316L stainless steel.

Material Compatibility and Consumables

Selecting the appropriate filler metal is essential for achieving compatible welds between duplex and 316 stainless steels. Recommended filler metals include 2209 filler, optimal for duplex 2205 to 316L, balancing the molybdenum content to enhance corrosion resistance and mechanical properties, and 309MoL, suitable for lean duplex or high-alloyed austenitic bases, providing a versatile option for various welding applications.

Using the correct shielding gases is critical for maintaining the weld quality and microstructure. For duplex stainless steel, argon with 2–3% nitrogen is recommended to stabilize the austenite phase, while for 316L stainless steel, pure argon is used to protect the weld pool from atmospheric contamination.

Critical Material Properties

Duplex stainless steel weld metals typically achieve a yield strength of ≥400 MPa, which is significantly higher than the ~170 MPa yield strength of 316L stainless steel. This high strength makes duplex stainless steel suitable for applications requiring robust structural performance.

Maintaining a balanced microstructure is essential for preventing preferential corrosion in chloride environments. Proper welding techniques and material selection help ensure the long-term durability and resistance of the welded joints.

Best Practices for Compliance

Thoroughly clean joint surfaces to remove oxides and avoid contamination from carbon steel. Proper joint preparation is vital for achieving defect-free welds.

Perform solution annealing at 1050–1120°C if heat input exceeds recommended limits. Electrochemical polishing can restore passivity and enhance the corrosion resistance of the welds.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the best welding techniques for joining duplex stainless steel to 316 stainless steel?

The best welding techniques for joining duplex stainless steel to 316 stainless steel involve careful selection of welding processes and consumables to maintain the desired mechanical properties and corrosion resistance. Key welding techniques include Gas Tungsten Arc Welding (GTAW or TIG welding), Gas Metal Arc Welding (GMAW), Shielded Metal Arc Welding (SMAW), and Submerged Arc Welding (SAW).

GTAW is often preferred due to its precise control over heat input and superior quality of welds, making it ideal for maintaining the phase balance in duplex stainless steel. The use of argon-based shielding gases, such as argon with 2% nitrogen, is recommended to prevent nitrogen loss in the weld metal.

For filler metals, AWS E309LMo/ER309LMo is commonly used due to its suitable composition that matches the requirements of both duplex and 316 stainless steels, ensuring a good balance of ferrite and austenite phases. Proper heat input management is crucial to avoid excessive ferrite content, with interpass temperatures kept below 150°C to prevent sigma phase formation.

By following these techniques and using appropriate filler metals, a robust and corrosion-resistant joint can be achieved between duplex stainless steel and 316 stainless steel.

How do the properties of duplex stainless steel compare to 316 stainless steel?

Duplex stainless steel and 316 stainless steel have distinct properties that influence their applications and welding considerations. Duplex stainless steel is characterized by a mixed microstructure of austenite and ferrite, with higher chromium content (20-28%) and molybdenum (up to 5%) compared to 316 stainless steel. This composition grants duplex stainless steel superior strength, with a typical 0.2% proof stress of around 450 MPa for standard grades, compared to 280 MPa for 316 stainless steel.

In terms of corrosion resistance, duplex stainless steel outperforms 316 stainless steel, particularly in environments with high chloride concentrations, making it more resistant to chloride stress corrosion cracking and pitting. On the other hand, 316 stainless steel, with its austenitic structure and lower chromium (16-18%) and molybdenum (2-3%) content, provides good general corrosion resistance but is less effective against chloride-induced stress corrosion cracking.

Duplex stainless steel is widely used in the offshore oil and gas industry and petrochemical applications due to its high strength and corrosion resistance. In contrast, 316 stainless steel is preferred in food processing, medical equipment, and marine environments for its formability and adequate corrosion resistance.

When welding these materials, duplex stainless steel requires careful control of welding parameters to maintain the balance of austenite and ferrite phases, while 316 stainless steel is more forgiving, though still requiring proper shielding and heat input control.

What are the common issues encountered when welding duplex to 316 stainless steel and how to solve them?

When welding duplex stainless steel to 316 stainless steel, several common issues can arise, primarily related to material compatibility, thermal expansion, and corrosion resistance.

Material compatibility is a significant concern due to the differing ferrite/austenite balance in duplex stainless steel, which must be preserved to maintain its mechanical properties. Using filler metals like AWS E309LMo/ER309LMo can help maintain this balance.

Thermal expansion differences between duplex and 316 stainless steel can cause stress concentrations during cooling, leading to potential distortion or cracking. This can be mitigated by careful preheating (not exceeding 300°C) and interpass temperature control to avoid excessive heat input, which can alter the material’s microstructure.

Corrosion resistance is another critical issue. Duplex stainless steels generally offer superior corrosion resistance compared to 316 stainless steel. However, improper welding techniques, such as inadequate shielding or contamination, can compromise this advantage. Using appropriate shielding gas mixtures, like argon with a small amount of nitrogen, can improve weld quality and maintain corrosion resistance.

By understanding these issues and implementing proper techniques, such as selecting the right filler metal and controlling welding temperatures, welders can effectively join duplex stainless steel to 316 stainless steel while maintaining the desired properties and avoiding common problems.

Why is AWS E309LMo/ER309LMo filler metal recommended for welding duplex to 316 stainless steel?

AWS E309LMo/ER309LMo filler metal is recommended for welding duplex stainless steel to 316 stainless steel due to its specialized properties that facilitate strong, durable, and corrosion-resistant welds. This filler metal is designed to join dissimilar metals, such as duplex and 316 stainless steels, which have different compositions and properties. It offers excellent corrosion resistance, particularly in environments with exposure to sulfuric and phosphoric acids, making it suitable for chemical processing applications. The low carbon content of ER309LMo reduces the risk of intergranular corrosion, a common concern in stainless steel welding. Additionally, it provides high-temperature resistance up to 950°C, which is advantageous in applications involving elevated temperatures. The mechanical properties of ER309LMo, including high tensile and yield strength, ensure robust welds capable of withstanding stress. These attributes make AWS E309LMo/ER309LMo an ideal choice for achieving quality welds between duplex and 316 stainless steels.

How can TIG welding improve the quality of welds between duplex and 316 stainless steels?

TIG welding (GTAW) improves the quality of welds between duplex and 316 stainless steels by offering precise control over heat input, which is crucial for maintaining the microstructure of duplex stainless steel. This method minimizes the risk of sigma phase formation, preserving the material’s corrosion resistance and mechanical properties. Using a shielding gas with up to 2% nitrogen helps maintain the austenite-ferrite balance in the weld, enhancing its overall properties. Additionally, the AWS E309LMo/ER309LMo filler metal is recommended for its balanced chemistry that supports the proper microstructure and provides excellent corrosion resistance. Proper arc control and weld sequence planning, including single-sided root passes and consistent heat input for filler beads, are essential techniques that ensure high-quality, durable, and corrosion-resistant joints between duplex and 316 stainless steels.

What are the standards compliance requirements for welding duplex to 316 stainless steel?

The standards compliance requirements for welding duplex to 316 stainless steel involve adherence to several key guidelines to ensure mechanical integrity, corrosion resistance, and microstructural stability.

First, welding procedure qualifications must follow ASME Section IX, which includes mockup testing and validation of processes like GTAW, GMAW, and SAW. This section ensures that the welding procedures are robust and repeatable. The filler metal selection is crucial, with AWS E309LMo/ER309LMo recommended to balance the austenite-ferrite ratios and minimize galvanic corrosion risks.

Microstructural and mechanical testing standards such as ASTM A923 for duplex stainless steels require impact testing to ensure toughness and the absence of harmful intermetallic phases. Similarly, ASTM A1084 specifies impact testing for lean duplex grades. API RP 582/938-C mandates the evaluation of weld microstructure to confirm a balanced phase distribution, ensuring corrosion resistance.

Non-destructive testing methods like dye-penetrant testing, radiographic inspection, and ultrasonic testing are essential to detect surface and internal defects. These tests must be conducted by operators skilled in handling stainless steel inspections.

Corrosion resistance considerations include using filler metals with adequate molybdenum content to mitigate galvanic corrosion and ensuring the weld metal maintains a high pitting resistance equivalent number (PREN).
