Choosing the Right Stainless Steel Welding Electrode: A Problem-Solution Guide

Imagine you’re in the middle of an important welding project, and you’re faced with the daunting task of choosing the right stainless steel welding electrode. The selection process can be perplexing, especially when you consider factors like material compatibility, performance metrics, and application-specific needs. Whether you’re dealing with welding stainless steel to carbon steel or seeking electrodes that prevent cracking in high-temperature scenarios, making the wrong choice can lead to costly mistakes and compromised weld integrity.

In this article, we’ll unravel the complexities of selecting the ideal stainless steel welding electrode. From understanding the differences between E308 and E308L electrodes to exploring the best options for preventing weld defects, we’ll provide a comprehensive problem-solution guide tailored to your needs. Ready to eliminate the guesswork and ensure flawless welds? Let’s dive in.

Understanding Stainless Steel Electrode Types

Stainless steel electrodes are essential in welding, offering corrosion resistance and strength for industrial applications. These electrodes match the composition and characteristics of stainless steel. This ensures optimal performance in a variety of industrial settings.

Common Types: E308L, E309L, E316L, E310

E308L Electrodes

E308L electrodes are used for welding 18-8 stainless steels like Types 301, 302, and 304. Their low carbon content minimizes carbide precipitation, maintaining corrosion resistance during high temperatures or repeated welding cycles.

E309L Electrodes

E309L electrodes are ideal for joining stainless steel to carbon steel. Their high chromium and nickel content reduces cracking in mixed-material joints, making them suitable for applications with thermal cycling, like petrochemical boilers.

E316L Electrodes

In environments rich in chlorides, such as marine or chemical processing applications, E316L electrodes are preferred. These electrodes contain molybdenum, which enhances resistance to pitting and crevice corrosion. The low carbon variant, E316L, further reduces the risk of intergranular corrosion, making it suitable for thicker sections or high-heat applications.

E310 Electrodes

E310 electrodes are used in high-temperature applications, such as furnace parts or exhaust systems. Their composition, with high levels of chromium and nickel, maintains structural integrity at temperatures up to 1,150°C. This makes them ideal for heat-resistant alloys and scenarios where thermal fatigue could be a concern.

Applications and Characteristics

Stainless steel electrodes are chosen based on specific needs, addressing challenges like corrosion resistance, compatibility with base metals, and strength under thermal conditions. They play a pivotal role in ensuring weld quality by addressing challenges such as corrosion resistance, compatibility with base metals, and structural integrity under varying thermal conditions. Each type of electrode offers distinct advantages tailored to particular welding scenarios, whether it’s preventing corrosion, facilitating the welding of dissimilar materials, or providing strength in high-temperature settings. Understanding the characteristics and applications of these electrodes is essential for selecting the appropriate type for specific industrial needs.

AWS A-5.4-92 Standard for Stainless Steel Electrodes

The AWS A-5.4-92 standard is essential for professionals using stainless steel electrodes in shielded metal arc welding, providing guidelines for quality and performance. This standard outlines specifications necessary for ensuring the quality and performance of stainless steel electrodes, offering a framework that guides the selection and application of these materials in various industrial contexts.

Importance of AWS A-5.4-92 in Electrode Selection

Ensuring material compatibility between the electrode and the base material is crucial for achieving optimal weld integrity and preventing defects such as cracking or corrosion. The standard’s classifications help in selecting electrodes that match the chemical composition and mechanical properties required for specific stainless steel grades. Additionally, these classifications ensure consistent welding performance by providing reliable results across different welding positions and conditions. For instance, designations like EXXX-16 or EXXX-17 indicate the type of coating and the electrode’s capabilities, making it easier for welders to choose the right electrode for the job.

Key Specifications and Requirements

Classification System

The AWS A-5.4-92 standard uses a classification system that categorizes electrodes based on their chemical composition and mechanical properties. For example, an electrode like E347-16 is designed for stabilized stainless steels and offers resistance to intergranular corrosion, which prevents the formation of chromium carbide at grain boundaries and maintains the material’s strength and durability.

Mechanical and Chemical Properties

The standard specifies minimum requirements for mechanical properties, such as tensile strength, which is the maximum amount of stress a material can withstand while being stretched or pulled before breaking. It also sets chemical composition limits to ensure the weld metal’s compatibility with the base material, enhancing the weld’s durability and resistance to environmental factors.

Testing and Certification

To comply with AWS A-5.4-92, electrodes must undergo rigorous testing to verify their performance characteristics. This includes:

1. Mechanical Testing: To assess tensile strength and ensure the electrode meets the required specifications.
2. Chemical Analysis: To confirm the electrode’s composition aligns with the standard’s requirements.
3. Performance Tests: To evaluate the electrode’s behavior under various welding conditions.

These steps are crucial for maintaining quality control and ensuring the electrodes are safe and effective for welding applications.

Packaging and Identification

The standard mandates clear labeling on electrode packaging, including classification, size, and lot number. This traceability is essential for quality control, ensuring welders use the correct electrode for their specific application.

Application of AWS A-5.4-92 in Industry

While AWS A-5.4-92 has been largely superseded by newer editions, it remains relevant in legacy applications and is referenced in ASME codes such as SFA-5.4. This continued relevance underscores the importance of understanding and applying the standard in environments where these older specifications are still in use.

A practical application of the AWS A-5.4-92 standard is seen with the E347-16 electrode, used for welding stabilized austenitic stainless steels in high-temperature environments. Its classification under the standard ensures it provides the necessary resistance to intergranular corrosion, making it ideal for applications like chemical processing equipment where both high strength and corrosion resistance are required.

Criteria for Selecting Stainless Steel Electrodes

Base Material Compatibility

Using the wrong electrodes can result in weak welds, corrosion, or cracking because of incompatible alloy compositions.

Matching Alloy Grades

• E308-16 is ideal for welding 304/304L stainless steel, preventing carbide precipitation which can compromise corrosion resistance.
• E309-16 or E309L-16 are suitable for welding dissimilar metals, such as mild steel to stainless steel, creating a hybrid weld deposit that resists cracking and maintains structural integrity.

For environments exposed to high temperatures, such as furnaces, E310-16 electrodes provide excellent oxidation resistance, ensuring welds remain robust under extreme conditions.

Welding Process & Position

Choosing the right electrode depends greatly on the welding process and position. Using the wrong electrode can lead to poor arc stability or incomplete fusion.

TIG Welding

• ER308L rods are precision-focused, making them suitable for TIG welding thin materials, ensuring clean and precise welds.

SMAW

• E312-16 electrodes are designed for overhead or vertical positions, offering faster solidification and improved stability during challenging welds.

MIG Welding

• ER316LSi wire electrodes are optimal for automated, high-speed applications, providing consistent and efficient welding performance.

Operating Environment & Performance Requirements

Specific electrode characteristics are needed to maintain weld integrity in different environments and performance situations.

Corrosive Environments

• ER316 electrodes, rich in molybdenum, are preferred for environments with high chloride exposure, offering superior resistance to pitting and crevice corrosion.

High-Strength Needs

• E312-16 provides high tensile strength, making it suitable for heavy machinery repairs where robust welds are essential.

Aesthetic-Critical Projects

• E308L-16 electrodes produce low spatter, ensuring smooth and clean welds for projects where appearance is critical.

Dissimilar Metal Welding Challenges

Welding dissimilar metals presents unique challenges, such as galvanic corrosion or brittleness due to alloy dilution.

Intermediate Alloys

• 309L electrodes balance chromium and nickel dilution between stainless and carbon steel, minimizing the risk of galvanic corrosion.

Avoiding Mild Steel Electrodes

Using mild steel electrodes in mixed metal welding can lead to crack-prone zones due to high carbon content. Selecting appropriate stainless steel electrodes prevents these issues.

Industry-Specific Standards

Adherence to industry standards is crucial to avoid weld failures and ensure compliance.

AWS A5.4 Compliance

• Verify electrode certifications, such as E308 vs. E308L, to ensure compatibility with specified carbon content and performance requirements.

Specialized Applications

• E310-16 electrodes offer thermal cycling resistance, making them ideal for applications in power plants and other high-temperature environments.

Practical Decision Table

Choosing electrodes based on specific criteria ensures the best weld quality and durability. Here is a practical decision table for common scenarios:

Troubleshooting Common Electrode-Related Weld Defects

Welding stainless steel can be quite challenging, especially when it comes to dealing with defects related to electrodes. These defects, such as porosity, cracking, lack of fusion, and corrosion resistance problems, can compromise the integrity and performance of the weld.

Porosity and lack of fusion often result from improper electrode selection or inadequate welding technique, with porosity occurring when gas pockets form within the weld, weakening its structure. Lack of fusion arises from insufficient heat input or poor electrode compatibility, leading to weak joints.

To address these issues, ensure a consistent and adequate shielding gas flow to prevent gas entrapment and select electrodes that match the base material’s composition. For instance, use E308L electrodes for 304 stainless steel to minimize porosity. Maintaining a steady arc length is also essential for proper fusion and reduced porosity.

Cracking can result from thermal stress or a mismatch in weld metal composition, while brittleness often stems from high carbon content or improper electrode use, leading to carbide precipitation. Utilizing low carbon electrodes, such as E308L or E316L, can help minimize carbide precipitation and enhance crack resistance. Implementing pre-heating and post-weld heat treatments can relieve thermal stresses. For welding different types of metals together, use E309 electrodes to create a strong, crack-resistant weld.

Corrosion resistance issues occur when the electrode’s chemical composition, especially chromium and nickel content, does not match that of the stainless steel. To improve corrosion resistance, select electrodes that align with the stainless steel type, such as using E316 for 316 stainless steel applications. Consider the operating environment and choose electrodes that offer suitable resistance to corrosive elements.

Effective troubleshooting requires a systematic approach to identify the root cause of weld defects and implement corrective measures. Proper electrode selection is crucial for achieving high-quality welds. Ensure the electrode is compatible with the stainless steel grade and suited for the welding position, whether flat, vertical, or overhead. Consult manufacturer specifications for electrode performance under various conditions.

Looking at case studies from specific industries can offer valuable insights into effective troubleshooting and choosing the right electrodes. For example, using E309 electrodes has proven effective in petrochemical industries for welding dissimilar metals, reducing cracking and ensuring durability. By focusing on these aspects, welders can address common electrode-related defects effectively, improving weld quality and reliability in stainless steel applications.

Solving Common Welding Challenges

Welding different types of metals, such as stainless steel and carbon steel, presents unique challenges because of their differing thermal properties and corrosion resistance. These differences can lead to issues like cracking and poor joint integrity.

Dissimilar Metal Welding

Electrode Selection

Select electrodes like E309/E309L, which have higher chromium and nickel content to provide superior strength and crack resistance for dissimilar metal welding.

Pre-Weld Preparation

Clean the surfaces thoroughly to remove contaminants that can cause weld defects. Use grinding or brushing to ensure a clean surface.

Controlled Heat Input

Employ controlled heat input techniques to manage thermal expansion differences, minimizing residual stresses that cause cracking.

Corrosion Resistance

Electrode Selection

To enhance corrosion resistance, select electrodes like E316/E316L, which resist common types of corrosion due to their added molybdenum content.

Post-Weld Treatment

Implement post-weld treatments like passivation to enhance the corrosion resistance of the weld area.

Low Carbon Electrodes

Use low carbon electrodes to minimize carbide precipitation, which can reduce corrosion resistance.

High-Temperature Applications

Electrode Selection

For welds exposed to high temperatures, use electrodes like E310 designed to maintain strength at temperatures up to 2,100°F (1,150°C), and apply heat treatments to reduce stress.

Heat Treatment

Apply appropriate pre- and post-weld heat treatments to reduce thermal stresses and improve weld durability.

Proper Welding Techniques

Employ welding techniques that ensure complete fusion and minimize the risk of thermal fatigue.

Carbide Precipitation and Corrosion

Low Carbon Electrodes

Prevent carbide precipitation by using low carbon electrodes like E308L, controlling cooling rates, and applying post-weld treatments to improve corrosion resistance.

Choosing the Right Electrode

Match Stainless Steel Type

Ensure the electrode matches the stainless steel type being welded. For example, use E316/E316L for Type 316 stainless steel.

Consider Welding Position

Choose electrodes suitable for the welding position (e.g., flat, vertical, or overhead) and specific conditions (e.g., all-position electrodes).

Address Chemical Composition

When welding steels with different chemical compositions, select an electrode that matches the lower composition or less expensive steel to prevent dilution issues.

By addressing these common welding challenges with strategic electrode selection and proper welding techniques, welders can produce strong, durable, and corrosion-resistant welds suitable for various demanding applications.

Welding Dissimilar Metals: Techniques and Solutions

Welding dissimilar metals is challenging because it involves joining metals with different properties, such as thermal expansion and corrosion resistance. This process is crucial in industries where hybrid materials are needed, such as aerospace, automotive, and manufacturing. The challenge lies in managing the differences in thermal expansion, electrical conductivity, and corrosion resistance to achieve a durable and reliable joint.

Selecting the Right Welding Electrode

The selection of the appropriate welding electrode is fundamental in dissimilar metal welding. It ensures compatibility between the metals and maintains the integrity of the weld.

• Material Compatibility: Select electrodes that match the chemical and physical traits of the metals you’re welding. For instance, E309L electrodes are commonly used when welding stainless steel to carbon steel due to their high chromium and nickel content, which helps prevent cracking.

• Strength and Ductility: Ensure the electrode provides adequate mechanical properties to withstand operational stresses. This involves selecting electrodes with the necessary tensile strength and ductility to bridge the gap between the two metals.

• Corrosion Resistance: Electrodes should maintain the corrosion resistance of stainless steel. This often involves selecting electrodes with high chromium or molybdenum content to prevent corrosion in harsh environments.

Techniques for Welding Dissimilar Metals

Various welding techniques can address the challenges of joining dissimilar metals, each offering unique advantages depending on the application.

Fusion Welding Techniques

• MIG (GMAW) Welding: Known for its speed and versatility, MIG welding is suitable for thicker sections and can efficiently join dissimilar metals when the appropriate filler is used.

• TIG (GTAW) Welding: Provides precise control over filler metal deposition, making it ideal for thin materials or applications requiring precision.

• Stick Welding (SMAW): Useful in applications where equipment accessibility and skill level allow, offering robustness and adaptability.

Low-Dilution Methods

• Electron Beam Welding: Ideal for delicate or thin dissimilar metals without requiring filler material, ensuring minimal dilution and high precision.

• Laser Welding: Offers high precision with minimal heat input, making it suitable for thin sections and applications requiring exacting standards.

Non-Fusion Techniques

• Friction Welding: Effective for metals that are difficult to weld using traditional methods, utilizing mechanical friction to generate heat and join materials.

• Explosion Welding: Suitable for large-scale applications, employing controlled explosions to bond metals without melting.

Addressing Common Welding Challenges

Welding dissimilar metals can lead to various issues, such as galvanic corrosion, thermal expansion mismatch, and distortion. Here are solutions to address these challenges:

• Galvanic Corrosion: Use filler metals that are anodic to both base metals to prevent galvanic corrosion. This requires careful selection of alloys that can act as a sacrificial anode.

• Thermal Expansion Mismatch: Use methods like laser welding that reduce heat, minimizing stress from different thermal expansions.

• Strength and Ductility: Choose a filler metal that is as strong and flexible as the weaker metal being welded, maintaining joint integrity.

• Distortion: Utilize techniques like TIG or laser welding to minimize heat input, thereby reducing the risk of distortion and maintaining dimensional accuracy.

Understanding these techniques and solutions allows welders to effectively address the challenges of dissimilar metal welding, resulting in high-quality, durable joints suitable for demanding applications.

Carbide Precipitation: Causes and Prevention

Carbide precipitation happens in stainless steel when high temperatures cause chromium carbides to form at grain boundaries. This process depletes chromium from nearby areas, reducing corrosion resistance and potentially causing intergranular corrosion and stress corrosion cracking (SCC).

Causes of Carbide Precipitation

Carbide precipitation is most pronounced when stainless steel is exposed to temperatures between 800°F and 1500°F (427°C to 816°C), which are common during welding processes. The duration of exposure to these critical temperatures further influences the extent of carbide formation and chromium depletion, increasing the risk of sensitization and vulnerability to corrosion. Austenitic stainless steels are particularly susceptible due to their carbon and chromium content, which facilitates the formation of chromium carbides.

Effects of Carbide Precipitation

Although the main concern with carbide precipitation is reduced corrosion resistance, it also affects the mechanical properties of stainless steel. The weakened grain boundaries can lead to stress corrosion cracking, compromising the structural integrity of the material.

Prevention Strategies

Material Selection

Opting for stainless steel grades with low carbon content, such as 304L or 316L, can significantly reduce the risk of carbide precipitation. These grades are less prone to sensitization due to their reduced carbon content, minimizing the formation of chromium carbides.

Welding Techniques

Employing welding techniques that minimize heat input, such as shielded metal arc welding (SMAW) with controlled heat, can limit the extent of the heat-affected zone (HAZ) and reduce the risk of carbide precipitation. Rapid cooling of the weld area is also beneficial, as it prevents prolonged exposure to critical temperatures.

Post-Weld Heat Treatment (PWHT)

Post-weld heat treatment can help redissolve chromium carbides and restore corrosion resistance. However, the practicality of this method should be evaluated based on specific application requirements.

Choosing the Right Stainless Steel Welding Electrode

Choose electrodes based on specific weld requirements like strength, corrosion resistance, and ductility. While electrode selection plays a role, controlling welding parameters and material choice are key factors in preventing carbide precipitation.

Welding Position Requirements and Electrode Selection

The position in which you weld greatly affects the quality and strength of the weld. Different positions necessitate specific techniques and electrode characteristics to overcome challenges related to gravity, accessibility, and weld pool management.

Flat Position

The flat welding position is the most straightforward and commonly used. It allows easy access to the weld area, minimal distortion, and straightforward management of the weld pool. Electrodes like E308 and E308L are ideal for this position due to their excellent corrosion resistance and ease of use. These electrodes ensure a smooth, consistent weld with minimal spatter.

Vertical and Overhead Positions

Welding in vertical and overhead positions presents distinct challenges. In the vertical position, careful control of the weld pool is crucial to prevent downward flow due to gravity. The overhead position amplifies these challenges as gravity significantly affects the weld pool. Electrodes must ensure strong, steady welds despite gravity pulling the weld pool. Titania-coated electrodes are recommended for their performance in variable positions, allowing welders to achieve high-quality welds even in these challenging scenarios.

Electrode Selection Based on Welding Requirements

Selecting the right electrode is crucial for achieving optimal weld properties and overcoming specific welding challenges. The choice depends on the type of stainless steel being welded and the desired weld characteristics.

Common Stainless Steel Electrodes

• E308/E308L: These electrodes are ideal for welding 18% chromium, 8% nickel stainless steels. E308L has a lower carbon content, reducing carbide precipitation and improving corrosion resistance. They are suitable for flat and vertical positions.

• E309/E309L: Designed for welding dissimilar metals, such as stainless steel to carbon steel. These electrodes offer superior strength and resistance to cracking, making them suitable for vertical and overhead positions.

• E316/E316L: Tailored for welding 18% chromium, 12% nickel, 2% molybdenum stainless steels. Highly resistant to pitting and crevice corrosion, these electrodes are versatile for various welding positions.

Solution-Oriented Strategies

Assess Stainless Steel Type

Choose electrodes that match the type of stainless steel you’re working with for the best results. This involves understanding the chemical composition and mechanical requirements of the stainless steel type and selecting electrodes that complement these characteristics.

Consider Welding Environment

Humidity, temperature, and accessibility can influence how well electrodes perform during welding. Adjustments may be necessary to maintain weld quality. For instance, in high-temperature or humid environments, selecting electrodes with enhanced corrosion resistance and stability can improve weld performance.

Consult Technical Guides

Utilize resources like stainless steel dissimilar welding charts for selecting appropriate filler metals based on specific applications. These guides provide valuable insights into electrode compatibility, performance metrics, and best practices for various welding scenarios.

Understanding and applying these factors effectively allows welders to achieve high-quality, durable welds across different positions and stainless steel types. Proper electrode selection and adherence to welding position requirements are essential for optimal welding performance and structural integrity.

Comparison of Electrode Types for Specific Applications

This guide explores the differences between E308 and E308L stainless steel electrodes, highlighting their chemical compositions, applications, and benefits for specific uses. Understanding these distinctions can help in selecting the right electrode for various welding needs, ensuring high-quality and durable welds.

Chemical Composition and Carbon Content

E308 electrodes have a higher carbon content, which can lead to carbide precipitation and intergranular corrosion when exposed to high temperatures. In contrast, E308L electrodes contain lower carbon levels, reducing the risk of these issues and improving the corrosion resistance of the weld.

Applications

E308 is used for general welding, while E308L is preferred for environments prone to corrosion due to its lower carbon content. This makes E308L ideal for applications in chemical processing equipment or other situations where enhanced corrosion resistance is crucial.

High-Temperature Applications: E310 and Alternatives

E310 electrodes are ideal for components exposed to extreme heat, offering excellent resistance to oxidation. They are suitable for welding parts such as furnace components and exhaust systems. Alternatively, E309 electrodes provide good performance in high-temperature environments and are effective for welding dissimilar metals. E312 electrodes are known for their high tensile strength, making them suitable for applications involving thermal cycling and mechanical stress.

Comparison Tables and Visual Guides

Explore our quick-reference table and visual guide to easily select the right electrode for your specific welding needs, ensuring optimal performance and durability. These tools can help in quickly identifying suitable electrodes based on application requirements, aiding in the decision-making process for achieving high-quality welds.

Frequently Asked Questions

Below are answers to some frequently asked questions:

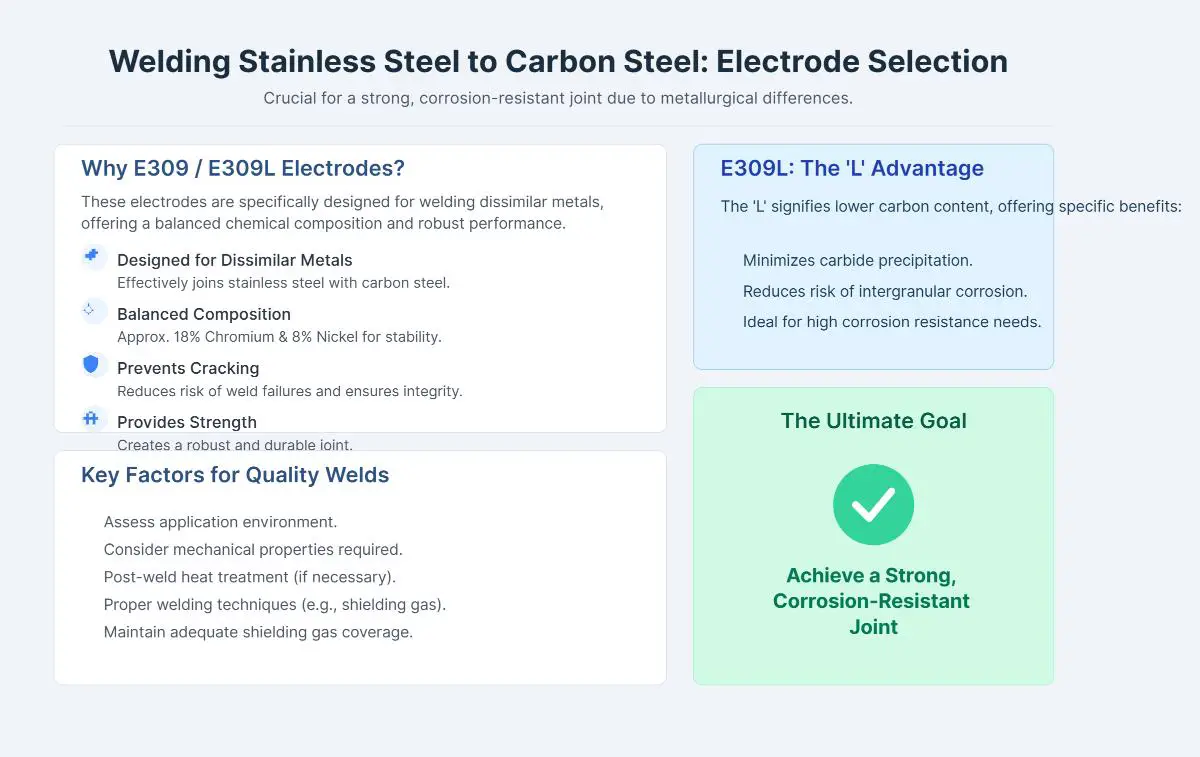

How to choose electrodes for welding stainless steel to carbon steel?

When welding stainless steel to carbon steel, selecting the right electrode is crucial to ensure a strong, corrosion-resistant joint. Due to the metallurgical differences between these metals—stainless steel’s corrosion resistance and carbon steel’s lack thereof—E309 or E309L electrodes are recommended. These electrodes are specifically designed for welding dissimilar metals, offering a balanced chemical composition with approximately 18% chromium and 8% nickel, which helps prevent cracking and provides strength.

E309L, with lower carbon content, minimizes the risk of carbide precipitation, making it suitable for environments where corrosion resistance is crucial. Additionally, assessing the application environment, considering mechanical properties, and possibly applying post-weld heat treatment can further enhance weld quality. Proper welding techniques, such as maintaining adequate shielding gas coverage, are also essential to avoid contamination and ensure a successful weld.

What’s the difference between E308 and E308L electrodes?

E308 and E308L stainless steel welding electrodes differ primarily in their carbon content and their implications for welding applications.

E308 electrodes have a higher carbon content, which can lead to carbide precipitation during the cooling process. This may reduce resistance to intergranular corrosion, making E308 less suitable for welds exposed to high temperatures or corrosive environments. E308 is typically used for general-purpose welding of austenitic stainless steels like AISI grades 301, 302, 304, and 305.

E308L electrodes, on the other hand, have a lower carbon content (typically ≤ 0.04%), significantly reducing the risk of carbide precipitation and enhancing resistance to intergranular corrosion. This makes E308L ideal for applications requiring high corrosion resistance, such as welding 304L and 347 stainless steels, and for environments involving high temperatures.

Which electrodes prevent cracking in high-temperature applications?

Electrodes that prevent cracking in high-temperature applications are typically formulated with specific alloy compositions and properties to withstand extreme heat while maintaining structural integrity. Key electrodes include:

1. 308 Austenitic Electrodes: These electrodes are designed for high-temperature environments up to 1,700°F (927°C). They feature high chromium (19-21%) and nickel (10-12%) content, which offers excellent corrosion resistance and prevents carbide precipitation, minimizing stress-corrosion cracking. They are suitable for applications like exhaust systems and boilers.

2. 310 Austenitic Electrodes: Ideal for even higher temperatures, up to 2,100°F (1,149°C), these electrodes contain 25-28% chromium and 20-22% nickel, providing superior oxidation resistance and maintaining ductility to resist thermal fatigue cracks. They are commonly used in furnace components and nuclear reactors.

3. E309L-16 Electrodes: Specifically designed for welding dissimilar metals, such as stainless steel to carbon steel, these electrodes have a low carbon content to reduce carbide precipitation and enhance crack resistance in high-heat cycles. They are used in heat exchangers and industrial piping.

To further mitigate cracking risks, employing post-weld heat treatment (PWHT) and preheating techniques, along with low-hydrogen welding processes, is essential for maintaining weld integrity in high-temperature applications.

Understanding electrode compatibility with stainless steel grades

Understanding electrode compatibility with stainless steel grades is essential for achieving optimal weld quality and performance. Stainless steels are categorized into austenitic, ferritic, martensitic, and duplex types, each requiring specific electrodes.

For austenitic stainless steels, such as Types 301, 302, 304, and 305, E308L electrodes are commonly used due to their excellent corrosion resistance and mechanical properties that match the base material. For high-temperature applications, E310 electrodes are ideal, providing superior scaling resistance.

When welding dissimilar metals or stainless steels with higher nickel content, E309L electrodes are preferred. These electrodes offer enhanced weld ductility and minimize cracking, making them suitable for joining stainless steel to carbon steel or other metals.

To ensure electrode compatibility, match the electrode composition with the base material’s chromium and nickel content. Consider the operating conditions, such as temperature and environment, to select electrodes that maintain the desired corrosion resistance and mechanical properties. Consulting welding charts can also guide the selection process for mixed-grade stainless steel projects, ensuring durable and corrosion-resistant welds.

Solutions for welding dissimilar metals without cracks

To weld dissimilar metals without cracks, such as stainless steel to carbon steel, choosing the right electrode and managing weld practices is crucial.

For electrode selection, E309 or E309L electrodes are recommended due to their high chromium and nickel content, which buffer dilution effects and maintain the necessary levels of these elements to prevent crack formation. These electrodes help mitigate the risk of forming hard martensitic zones that can lead to cracking.

To optimize weld chemistry and prevent corrosion, use precision dilution techniques. This involves limiting heat input and using smaller electrodes to minimize the mixing of base metals. Additionally, applying a buttering technique with E309L filler on the carbon steel side before final welding can further reduce dilution.

Preventing intergranular corrosion is also essential. Utilizing low-carbon electrodes like E308L or E309L reduces the risk of carbide precipitation in heat-affected zones. Post-weld heat treatment can also help by annealing the weld to dissolve any carbides formed during welding.

Best practices include controlling preheat temperatures to reduce cooling rates and maintaining appropriate interpass temperatures to avoid distortion. Using shielding gas mixtures like 98% Argon with 2% Oxygen for GTAW can stabilize arcs and minimize oxidation.

By aligning electrode chemistry with dilution dynamics and employing these welding practices, crack-free welds between dissimilar metals can be consistently achieved.

Comparison of electrode types for specific applications

When comparing stainless steel welding electrodes for specific applications, it’s essential to match the electrode properties with the requirements of the weld. E308 and E308L electrodes are best for general-purpose welding of 18-8 stainless steels, offering excellent corrosion resistance, with E308L’s lower carbon content preventing carbide precipitation. E309 and E309L are designed for welding dissimilar metals, such as joining stainless steel to carbon steel, and are favored for their strength and crack resistance in high-temperature environments. E316 and E316L provide enhanced resistance to pitting and crevice corrosion, ideal for marine and chemical processing applications, with E316L preferred for its superior intergranular corrosion resistance. E310 electrodes excel in high-temperature applications, such as furnace fabrication, due to their ability to withstand extreme heat. Selecting the correct electrode involves considering factors like chemical compatibility, welding position, and environmental conditions to ensure robust and durable welds.
